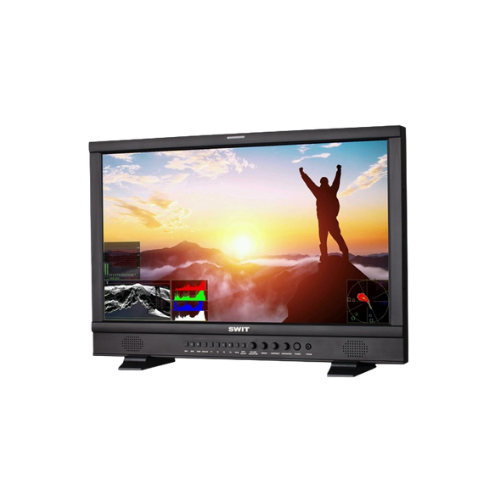

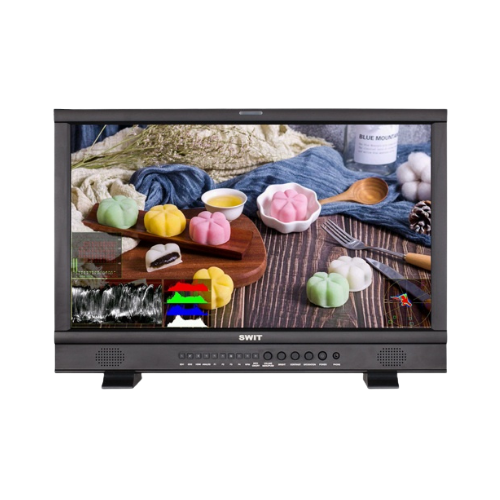

Large 23.8-inch Full HD IPS Display

The S-1243F features a 23.8-inch IPS LCD panel with Full HD resolution, delivering accurate color reproduction and wide 178° viewing angles. Ideal for professional broadcast and studio environments.

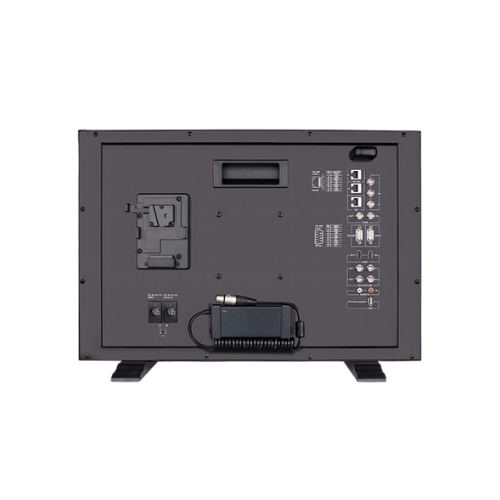

Versatile Multi-Format Connectivity

This monitor supports SDI, HDMI®, VGA, YUV, and CVBS inputs, making it highly adaptable to various production workflows. Dual SDI inputs with loop outputs ensure seamless integration into professional setups.

Advanced Video Analysis Tools

Equipped with waveform, vectorscope, and histogram functions, the monitor allows precise monitoring of luminance, color levels, and signal integrity—essential for high-end production work.

3DLUT Calibration for Precision Color

Supports 17×17×17 3DLUT calibration for accurate color reproduction. Built-in De-log LUTs and user LUT upload capability provide flexibility for different camera profiles and grading workflows.

Professional Audio Monitoring

Supports up to 16-channel embedded audio monitoring with alert indicators. Users can select any 2 channels for output, ensuring reliable audio control.

Broadcast-Ready Features

Includes TSL UMD and text TALLY display, timecode, AFD, H/V delay, and safety markers, making it suitable for live broadcast, control rooms, and OB vans.

Flexible Power Options

Supports AC and DC power input along with optional V-mount and Gold mount battery plates, ensuring reliable operation in both studio and field environments.
