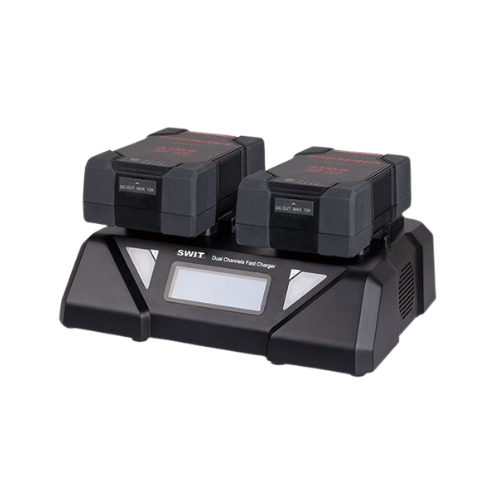

Dual-Channel Fast Charging

The S-3812S 2-ch V-mount Super Fast Charger is designed for efficient and reliable charging of professional batteries. With dual charging channels, it delivers up to 6A fast charging for high-capacity batteries, significantly reducing charging time compared to standard chargers.

Intelligent Charging System

This charger automatically identifies battery type and adjusts the charging method accordingly. It ensures optimal charging performance for SWIT batteries (≥160Wh) while maintaining safe charging for other battery brands.

AC to DC Power Output

The S-3812S supports AC-to-DC adapting output via a 4-pin XLR port, allowing it to power external equipment. It can deliver up to 16.8V DC output with a maximum load of 200W, making it a versatile power solution in studio or field environments.

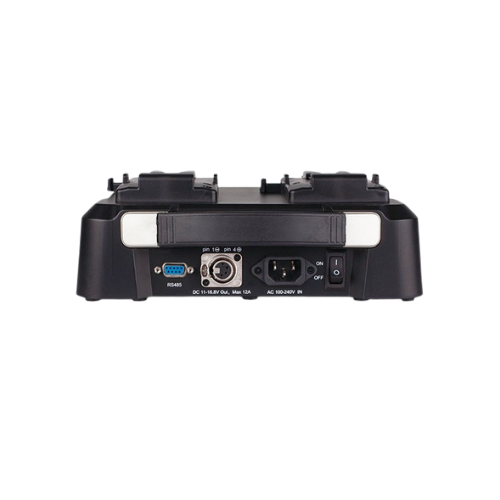

Battery to DC Output Function

In addition to AC power, mounted batteries can also be used as a DC power source via the 4-pin XLR output. This feature enables flexible power supply options for various professional equipment.

Real-Time LCD Monitoring

The integrated LCD screen displays detailed real-time information, including charging status, voltage, current, battery capacity, cycle times, and remaining charge/discharge time. This ensures complete visibility and control over battery management.

Clear LED Status Indicators

The charger features 3-color LED indicators for each channel:

• Red (slow flash): Charging

• Red (fast flash): Near full charge

• Green (solid): Fully charged

• Green (flashing): Adapting output

• Orange (flashing): Error or abnormal status
