S-4611 SDI to DVI Converter

SWIT Video Converter

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Portable 3G/HD/SD-SDI to DVI converter
1× SDI input, 1× DVI output, and 1× SDI loop output
SDI embedded audio output via 3.5mm socket
Reclocked the SDI loop output for a stable signal
Power, input, and output LED status indicators
Pole-tap DC power input (6–18V)
Heavy-duty aluminum alloy housing
Bottom 1/4-inch screw thread for installation

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Compact SDI to DVI Conversion

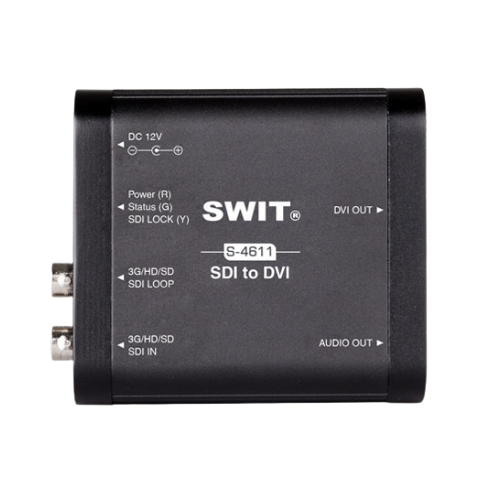

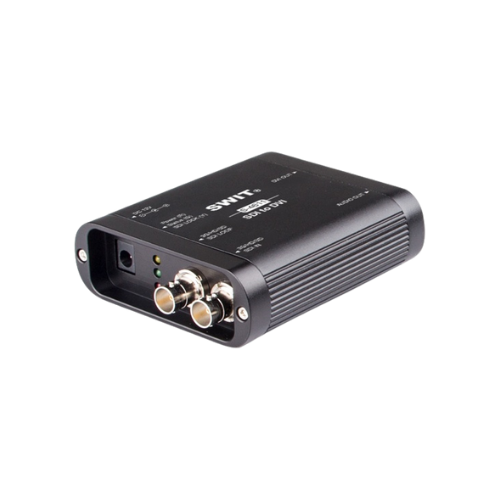

The S-4611 is a portable mini converter designed to convert 3G/HD/SD-SDI signals into DVI output (DVI-D 18+1). It enables seamless display of broadcast SDI signals on DVI monitors, TVs, LED displays, and projectors.

Flexible Input & Output Options

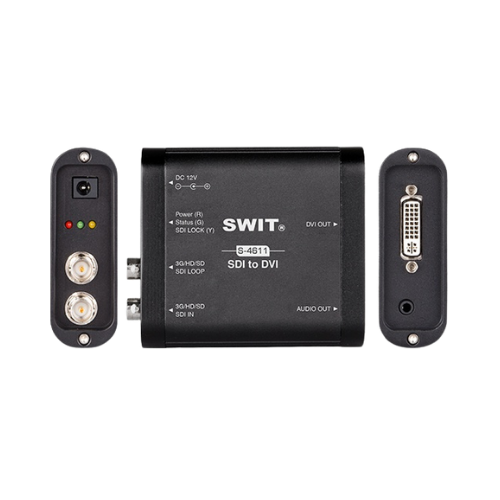

The converter features a 3G/HD/SD-SDI input along with a reclocked SDI loop output, ensuring signal integrity for monitoring or distribution. The DVI output delivers high-quality video conversion with format consistency.

Embedded Audio Output

The S-4611 extracts SDI embedded audio (channels 1 & 2) and outputs it through a 3.5mm headphone jack. This allows convenient audio monitoring with a 48kHz sample rate.

LED Status Indicators

Built-in LED indicators provide real-time status of power, input signal, and output signal, making it easy to monitor system performance and troubleshoot issues.

Flexible Power Options

The converter supports DC input from 6–18V via a pole-tap connection. It includes an AC-DC adapter and also supports battery power for field applications.

Durable & Installation-Ready Design

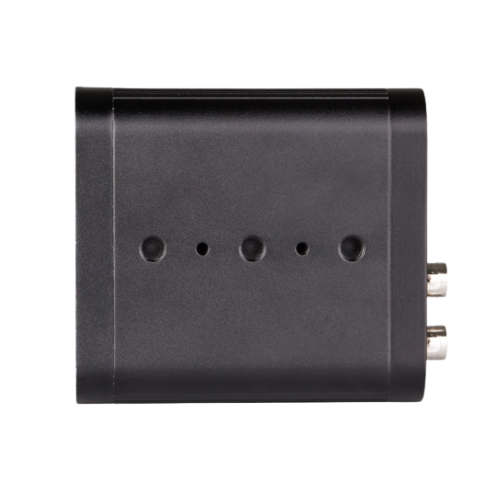

Constructed with a unibody aluminum alloy housing, the S-4611 is designed for rugged professional use. It includes a 1/4-inch mounting thread and installation plate for secure setup.

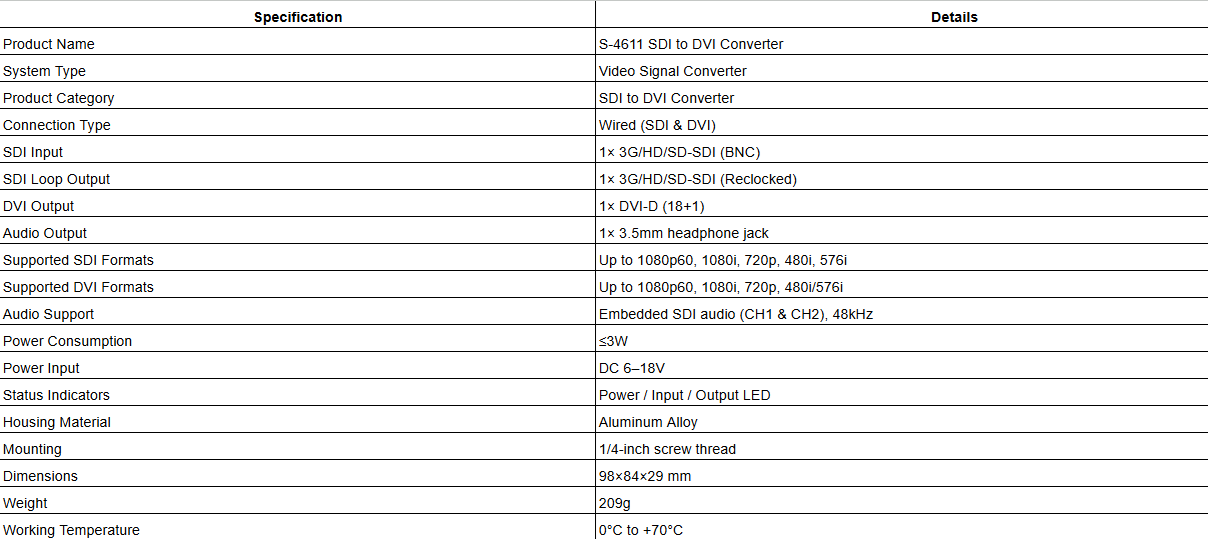

Technical Specifications +

technical specifications
