Groundbreaking Low-Position Flexibility for Broadcast ENG

The S120C4 Carbon Fiber Tripod System redefines versatility for professional Electronic News Gathering (ENG) and high-definition broadcast workflows. What sets this 4-section tripod apart is its expanded operating range, allowing camera operators to drop their lens from a maximum height of 1750mm down to a super-low position of 270mm for impactful low-angle dramatic shots. Fully CNC-machined and supported by 304 stainless steel connectors, the system delivers a rigid foundation that completely removes structural micro-shakes on the go.

Advanced Fluid Architecture and Fluid Transitions

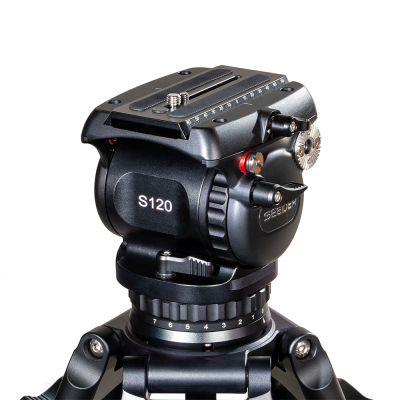

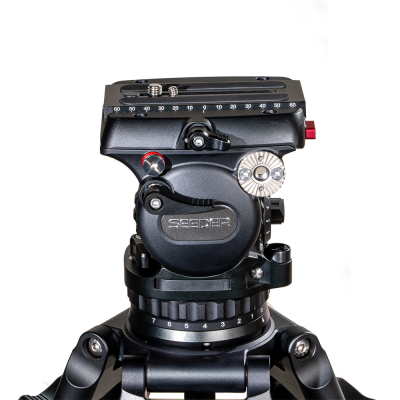

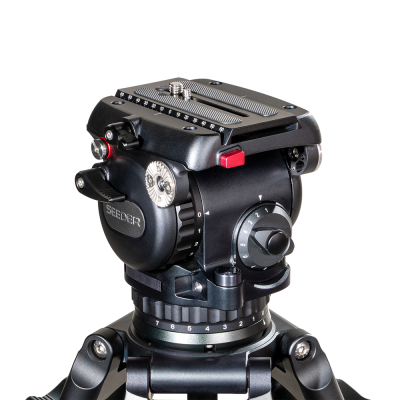

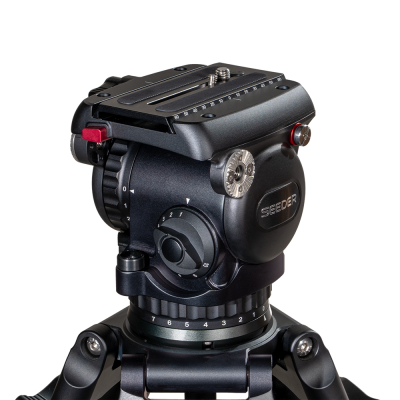

At the center of this mobile broadcast setup is the specialized S120H fluid head, introducing a fluid damping design with an $8+8+10$ adjustable level structure. Camera operators can quickly alternate through 8 discrete grades of horizontal drag and 8 steps of vertical drag to manage smooth panning transitions. Supported by a 10-step indexed counterbalance dial that perfectly neutralizes the center of gravity for equipment configurations between 3kg and 15kg, executing seamless tracking maneuvers over a standard $+90^\circ$ to $-75^\circ$ tilt range becomes completely effortless.

Elite Carbon Fiber Engineering with Metal Feet

Crafted for maximum on-the-road mobility, the CT404 3-stage tripod legs are formed from premium 100% carbon fiber, keeping the net leg weight at a mere 2.7kg while collapsing into a compact 750mm transport shape. The 4-section leg configuration features integrated metal feet and is stabilized by a mid-level or ground spreader system for concrete-stable ground anchoring. Capable of performing flawlessly in extreme outdoor environmental temperatures ranging from a freezing $-40^\circ\text{C}$ to a scorching $+60^\circ\text{C}$, this production-ready kit arrives with a replaceable 100mm bowl base, a PL100 quick-release plate, a PB100 single telescopic pan bar, dual standard thread mounting screws, an illuminated 30-second level bubble, and a custom CO100 padded travel bag.
