Ultra-Low-Angle Field Versatility for Broadcast ENG

The S90C4 Carbon Fiber Tripod System is engineered to bring professional stability and exceptional height versatility to Electronic News Gathering (ENG) and compact 4K camcorder configurations. What sets this 4-section tripod system apart is its incredible working height range, allowing operators to seamlessly transition from an eye-level maximum perspective down to an ultra-low 270mm profile for dramatic low-angle shooting. Built entirely with high-precision CNC machining and 304 stainless steel load-bearing components, it completely removes mechanical flexibility to protect your high-definition footage from micro-shakes.

Consistent Fluid Control Discs and Dynamic Balancing

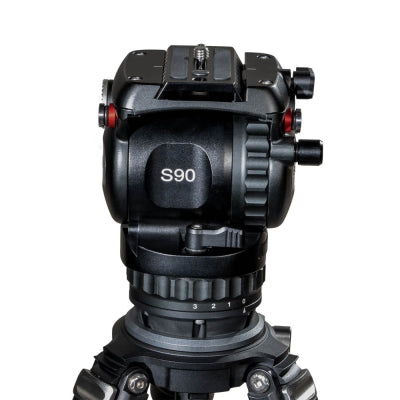

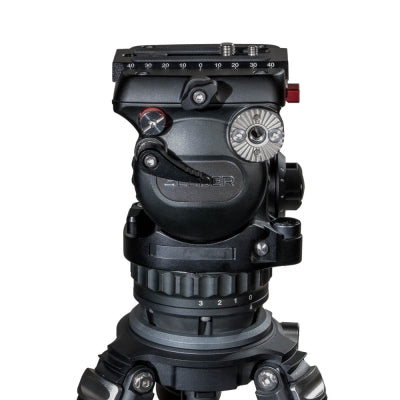

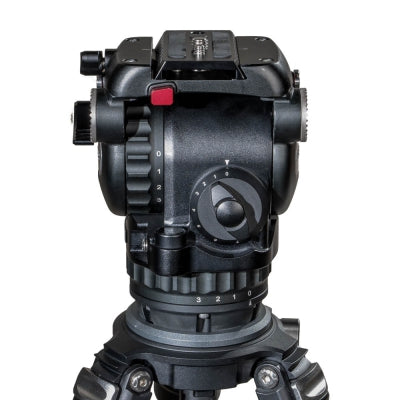

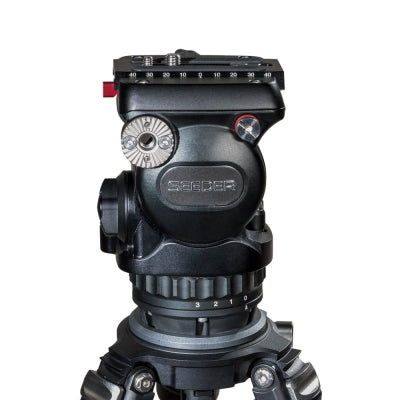

At the heart of this mobile setup is the S90H fluid head, utilizing a highly responsive fluid damping disc infrastructure. Camera operators can quickly alternate through 4 steps of horizontal pan drag and 4 steps of vertical tilt drag to execute smooth camera transitions over a $+90^\circ$ to $-75^\circ$ tilt scope. Backed by an 8-tier indexable counterbalance dial, the setup effortlessly floats compact equipment configurations from 0kg up to 8kg, keeping the horizon locked without any unwanted drift or recoil.

Lightweight Travel Rig Built for Tough Locales

Crafted for maximum on-the-road portability, the CT364 3-stage tripod legs are constructed from premium 100% carbon fiber, keeping the net leg weight at a mere 2.2kg while folding into a highly compact 750mm transport shape. This durable system easily handles challenging assignments, operating flawlessly in outdoor environments ranging from a freezing $-40^\circ\text{C}$ to a scorching $+60^\circ\text{C}$. The complete out-of-the-box kit arrives production-ready with an interchangeable 75mm bowl base, a PL40 quick-release plate, a PB40 single pan bar, dual standard thread mounting screws, and a custom CO100 padded transport bag.
