Immersive Spatial Telemetry with Grand-Scale Structural Reach

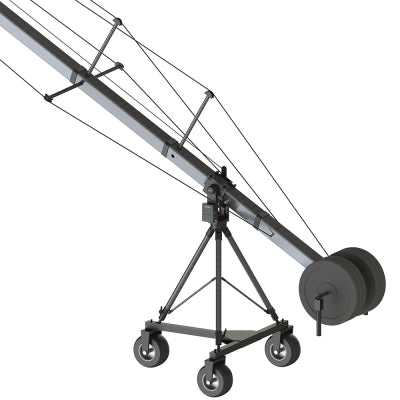

The SEEDER CR12M-VR represents the absolute pinnacle of ultra-extended virtual tracking technology, offering an industrial-grade 12-meter carbon fiber jib arm for augmented reality (AR), virtual reality (VR), and live XR studio broadcasts. Built to execute large-scale, cinematic multi-axis sweeps without the need for complicated room-based optical sensor rigs, this system provides an extraordinary front arm reach of up to 9.6 meters (9.2m + 0.4m) paired with a 2-meter rear counterweight system. It captures spatial changes with zero drift, feeding real-time coordinates to virtual engines like Unreal Engine 5 to keep digital layers and talent perfectly matched.

Aerospace-Grade Structural Engineering and Fast Setup

The physical backbone of the CR12M-VR is engineered from specialized carbon fiber triangular tubes, maximizing torsional resistance while scaling each section’s weight down to a light 1.8kg. An innovative screwless quick-connect interface allows crews to lock sections together securely in seconds. The system rests upon a telescoping carbon fiber tripod supporting structural loads up to 300kg, rolling on an ultra-stable studio dolly armed with aviation pneumatic tires, a heavy-duty T-type bracket, and an integrated master brake unit to handle counterweights up to 133.5kg safely.

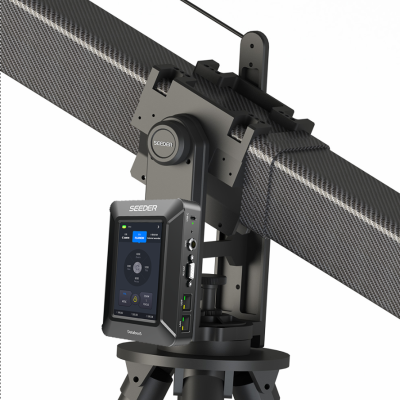

Comprehensive Databox5 Calibration Hub

System tracking data is coordinated by the standalone Databox5 processor. Armed with an easy-to-use touch screen, it decodes data across Pan, Tilt, Zoom, Focus, Lens, and Crane XYZ movements. The module features 0.1-frame accuracy tracking delay logic, virtual error-based calibration, motion data inversion toggles, and customized camera ID assignments. Backed by dedicated external sync signal inputs and loop-outs with internal PAL/NTSC switching, it guarantees that telemetry streams remain frame-locked during high-stakes live broadcasts.

Precision Motorized Flow and Complete Servo Integration

Operating the CR12M-VR is exceptionally smooth due to its motorized U-type carbon fiber head, which supports professional camera configurations weighing up to 25kg. A high-performance full servo lens controller maps seamlessly to leading lenses, while the master control handle offers 7 grades of pan/tilt speed and 7 zoom speed adjustments with 4 built-in position recorders. For precise shot framing, the package comes complete with a bright, sun-hooded 10-inch 16:9 multi-interface monitor that handles SDI, DisplayPort, and composite loop-through feeds.
