Extended Reach for Immersive Virtual Environments

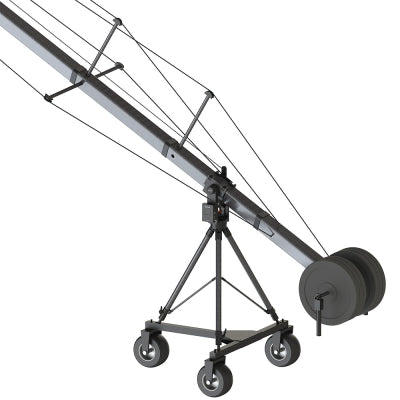

The SEEDER CR6M-VR is a premium 6-meter camera jib system engineered specifically for augmented reality (AR) and virtual reality (VR) live broadcasts. With a front arm reach of 5 meters (4.6m + 0.4m), it provides the sweeping cinematic motion required for large-scale virtual sets and sports production. The system uses four 23-bit absolute encoders to capture every subtle movement of the crane arm and head, ensuring the digital background stays perfectly aligned with the physical camera.

Precision Engineering and Rapid Deployment

Despite its size, the CR6M-VR is designed for portability and speed. The carbon fiber triangular tubes offer high structural intensity while remaining incredibly light, and the tool-less quick-install mechanism allows for rapid assembly without screws. The system is anchored by a high-strength tripod capable of supporting 300kg, ensuring a stable foundation even when fully extended with a heavy camera rig.

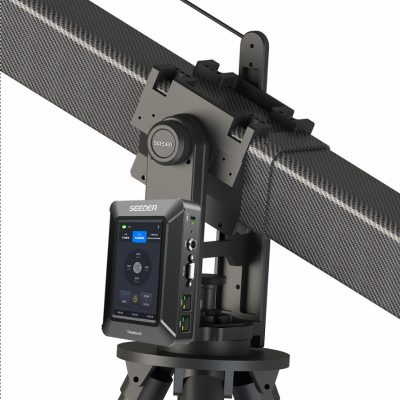

Databox5: The Brain of Virtual Tracking

Tracking data is managed by the Databox5 processor, which supports 0.1-frame accuracy for tracking and lens data delay adjustments. It automatically identifies built-in encoders from Canon or Fujinon lenses, aggregating all spatial data into a standard FREE-D output. The touch-operated display allows for immediate UI parameter modifications, and the system supports external genlock sync signal input to prevent cumulative errors during live air.
