Immersive Telemetry with Grand-Scale Structural Reach

The SEEDER CR8M-VR represents the pinnacle of large-scale virtual tracking technology, offering a sweeping 8-meter carbon fiber jib arm for augmented reality (AR), virtual reality (VR), and live XR studio broadcasts. Built to handle complex, cinematic multi-axis sweeps without the need for complicated room-based optical sensors, this system features a front arm reach of up to 6 meters (5.6m + 0.4m) paired with a 2-meter rear counterweight assembly. It registers positional adjustments with zero drift, sending real-time coordinates to virtual engines to keep digital layers and talent perfectly matched.

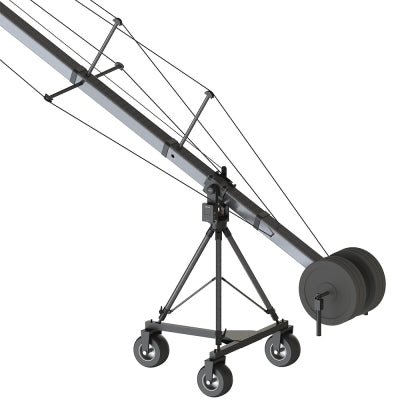

Aerospace-Grade Structural Engineering and Fast Setup

The physical skeleton of the CR8M-VR is engineered from specialized carbon fiber triangular tubes (135mm sides / 130mm base) maximizing torsional resistance while scaling each section’s weight down to a light 1.8kg. An innovative screwless quick-connect interface allows crews to lock sections together securely in seconds. The system rests upon a telescoping carbon fiber tripod supporting structural loads up to 300kg, rolling on an ultra-stable studio dolly armed with aviation pneumatic tires, a heavy-duty T-type bracket, and an integrated master brake unit.

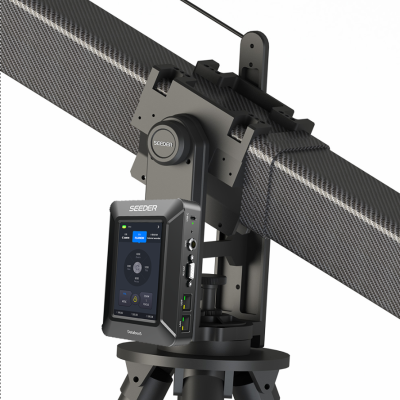

Comprehensive Databox5 Calibration Hub

System tracking data is coordinated by the standalone Databox5 processor. Armed with an easy-to-use touch screen, it decodes data across Pan, Tilt, Zoom, Focus, Lens, and Crane XYZ movements. The module features 0.1-frame accuracy tracking delay logic, virtual error-based calibration, motion data inversion toggles, and customized camera ID assignments. Backed by dedicated external sync signal inputs and loop-outs with internal PAL/NTSC switching, it guarantees that telemetry streams remain frame-locked during high-stakes live broadcasts.

Precision Motorized Flow and Complete Servo Integration

Operating the CR8M-VR is exceptionally smooth due to its motorized U-type carbon fiber head, which supports professional camera configurations weighing up to 25kg. A high-performance full servo lens controller maps seamlessly to leading lenses, while the master control handle offers 7 grades of pan/tilt speed, 7 zoom speed adjustments, and a specialized 7-level electronic dampener. For precise shot framing, the package comes complete with a bright, sun-hooded 7-inch 16:9 multi-interface monitor that handles SDI, DisplayPort, and composite loop-through feeds.
