High-Precision Pneumatic Elevation for Broadcast Studios

The SEEDER PT50 Pedestal System represents an elite tier of camera support, purpose-built to deliver flawless vertical travel and uncompromising stability for professional television studio environments. Designed as a standalone, high-performance modular pneumatic column, the PT50 allows production crews to deploy their choice of compatible fluid damping heads while establishing a rock-solid, vibration-free base. By utilizing comprehensive CNC machine processing across its high-intensity structural layout, it completely eliminates unwanted flexing and micro-stuttering, making it an unyielding foundation for live newsrooms, virtual sets, and sports production.

Controlled Elevation Stroke with Digital Monitoring

At the core of the PT50’s operational capability is its specialized pneumatic lift architecture. Housing a heavy-duty 100mm diameter air cylinder, the system facilitates an ultra-smooth, weightless on-shot stroke exceeding 390mm. This lets camera operators execute fluid, vertical camera height adjustments effortlessly during live studio segments. Internal column pressure can be managed and monitored instantly using the integrated double-color digital barometer. For seamless integration into existing studio workflows, the column features an industry-standard 100mm bowl diameter interface achieved via its included 100mm base adapter.

Production-Ready Mobile Tracking Configuration

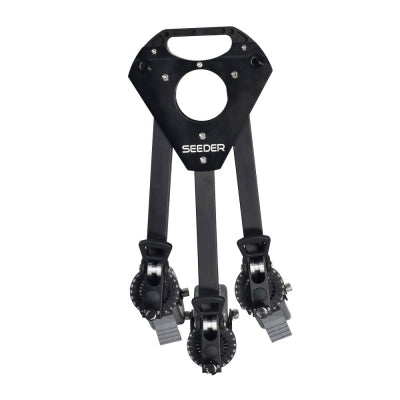

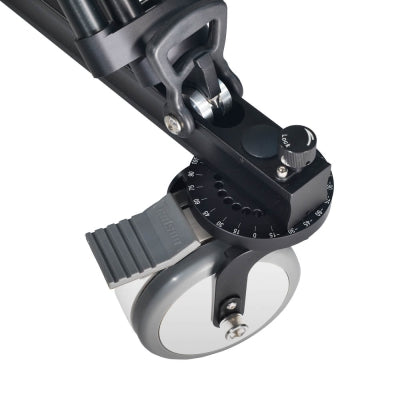

Engineered for fast-paced studio floors and multi-set soundstages, the system comes complete with a professional studio tracking dolly. The dolly is armed with an independent wheel braking system and a secure motion trajectory lock, letting operators configure straight-line track-like movements or lock the assembly firmly into a fixed position for stationary shots. Striking a perfect balance between robust structural load management and physical transportability, the entire 18.5kg system handles a broad working height range from 850mm up to 1630mm. Out of the box, this package arrives ready for professional configuration, shipping with the PT50 pneumatic column, a barometer charger, a 100mm base adapter, and the tracking dolly.
