High-Precision Pneumatic Elevation for Heavy Studio Broadcasts

The SEEDER PT800 2-Stage Pedestal System represents an elite tier of camera support, purpose-built to deliver flawless vertical travel and uncompromising stability for the most demanding television studio environments. Designed as a standalone, ultra-high-capacity modular column configuration, the PT800 allows production crews to deploy heavy broadcast setups while establishing a rock-solid, vibration-free base. By utilizing comprehensive CNC machine processing across its high-intensity structural layout, it completely eliminates unwanted flexing and micro-stuttering, making it an unyielding foundation for live newsrooms, virtual sets, and large-scale entertainment productions.

Extended Dual-Cylinder Stroke with Digital Monitoring

At the core of the PT800’s operational capability is its specialized 2-stage dual-cylinder pneumatic lift architecture. Housing a heavy-duty 90mm to 110mm diameter air cylinder, the system facilitates an ultra-smooth, weightless on-shot stroke exceeding 700mm. This lets camera operators execute dynamic, vertical tracking movements effortlessly during a live broadcast. Internal column pressure can be managed and monitored instantly using the integrated double-color digital barometer. For maximum production adaptability, the mounting interface matches standard 100mm or 150mm bowl fluid heads and includes a flat plate with 4 holes for universal integration.

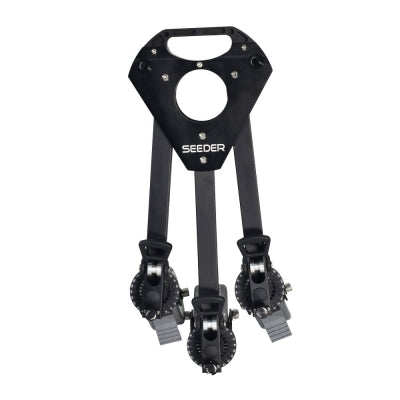

Production-Ready Mobile Tracking Configuration

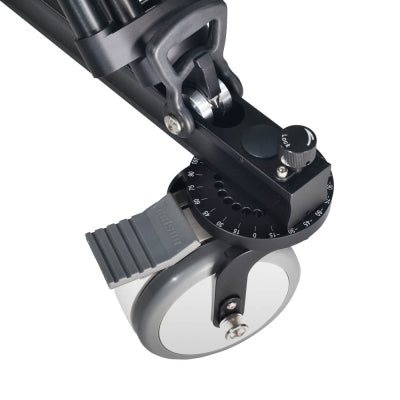

Engineered for fast-paced studio floors and multi-set soundstages, the system comes complete with a premium, direction-adjustable tracking dolly. The dolly is armed with an independent brake system and a secure motion trajectory lock, letting operators configure straight-line track-like movements or lock the assembly firmly into a fixed position. Striking a perfect balance between heavy-duty structural load management and physical transportability, the entire 18.5kg system handles a broad working height range from 770mm up to 1535mm. Out of the box, this package arrives ready for professional studio configuration.
