High-Precision Pneumatic Elevation for Television Broadcast Studios

The SEEDER S260PT500 2-Stage Pedestal System is an elite, studio-grade camera support platform engineered to provide flawless vertical movement and rock-solid tracking for broadcast television professionals. Purpose-built to handle the demanding workflows of modern television newsrooms, live virtual studios, and multi-camera soundstages, this system integrates the S260H fluid head with the PT500 2-stage pneumatic pedestal column. By utilizing extensive CNC-machined structural alloy components, it eliminates micro-stuttering and structural flex, establishing an unyielding foundation that media teams can rely on for smooth live television broadcasts.

Seamless Balanced Floating and Granular Hydraulic Control

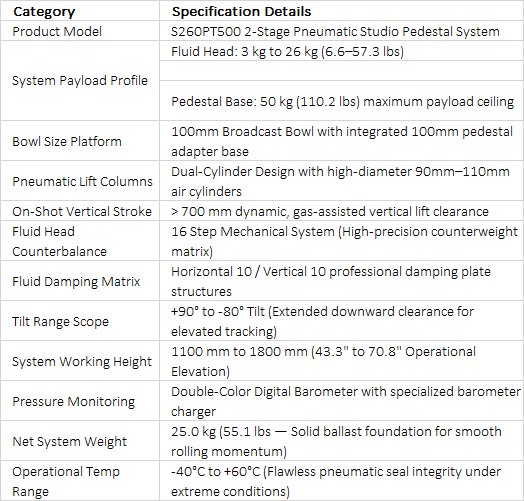

At the core of the S260PT500’s operational layout is its advanced dual-cylinder layout, offering over 700mm of ultra-smooth pneumatic travel. The pneumatic pressure within the 90mm–110mm column is easily monitored via an integrated double-color digital barometer. The paired S260H fluid head utilizes an industry-standard 100mm bowl interface for ultimate stability and provides an exhaustive $+90^\circ$ to $-80^\circ$ tilt range, regulated by 10 discrete steps of horizontal and vertical fluid drag. When tracking camera gear weighing between 3kg and 26kg, the 16-grade counterbalance system completely neutralizes the rig's center of gravity, allowing operators to execute complex, weightless on-shot elevation shifts effortlessly using the included PB100 dual telescopic pan bars.

Production-Ready Mobile Configuration for Professional Soundstages

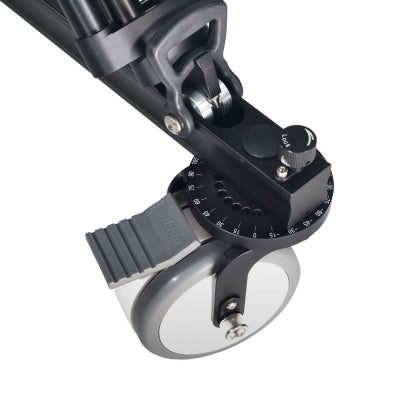

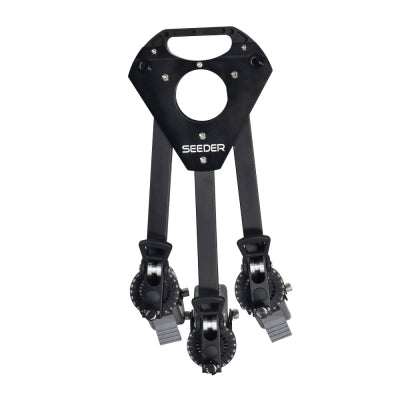

Designed for continuous studio reconfiguration and fast-paced live environments, the system features a high-performance tracking dolly. The dolly is equipped with individual foot brakes and a highly secure trajectory lock system, enabling operators to lock down straight-line tracking paths or lock the assembly entirely in place for fixed framing. Delivering a comprehensive working height profile that ranges from 1100mm up to a maximum extension of 1800mm, this 25kg system acts as a vibration-dampening anchor against floor movement. This standalone studio package arrives completely production-ready, featuring a 30-second illuminated bubble level for dark sets, a quick-release plate, dual $1/4''$ and $3/8''$ tie-down screws, and a dedicated barometer charger.
