High-Fidelity Tracking for Virtual Broadcast Environments

The SEEDER S30VR-PT50 is a specialized virtual tracking head and pedestal system designed to meet the rigorous demands of modern AR/VR/XR productions. By bridging the gap between physical camera hardware and virtual engines, it ensures that every subtle camera movement is translated into the digital space with absolute precision. With a 100mm bowl size and a 30kg payload capacity, this system is optimized for professional high-definition cameras used in newsrooms, virtual sets, and live event broadcasts.

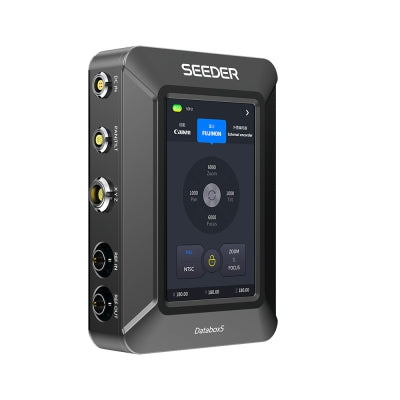

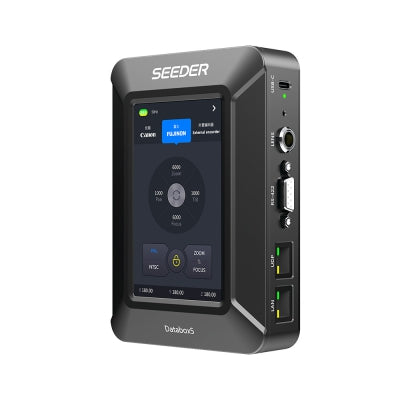

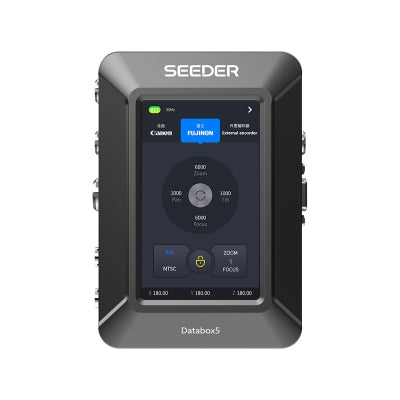

Advanced Telemetry via Databox5

At the core of this system is the Databox5 Data Processor. This powerful hub manages complex data streams, supporting FREE-D absolute value data and simultaneous output via RS422 and Ethernet. Operators can fine-tune their setup with a touch-screen interface, allowing for virtual error-based compensation calibration, data inversion for Zoom and Focus, and precise camera ID settings. The processor even supports VR tracking cranes with adjustable jib lengths, making it a versatile tool for varied production styles.

Robust and Reliable Studio Construction

Designed to perform in diverse environments, the S30VR-PT50 features an operational temperature range from -40°C to +60°C. The pedestal provides a versatile working height of 1000mm to 1640mm, ensuring flexibility for various studio shots. Weighing 23.5kg with a compact transport length of 1060mm, the system offers a stable yet manageable footprint for high-intensity studio use where precision is paramount.
