Professional VR/AR Tracking Solution for High-End Broadcast

The SEEDER S40VR-PT50 is a sophisticated virtual tracking system specifically engineered for modern virtual studios and high-end broadcast environments. This system provides a seamless bridge between physical camera movement and virtual rendering engines, outputting high-fidelity FREE-D absolute value data. With its 150mm bowl size and robust 40kg payload capacity, it is designed to support professional high-definition cameras equipped with heavy studio lenses and teleprompters, ensuring that every pan, tilt, and zoom is mirrored perfectly in the virtual space.

Comprehensive Databox5 Signal Integration

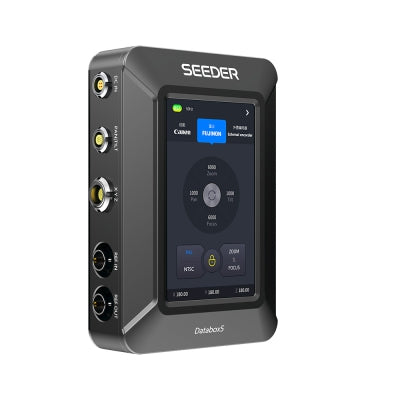

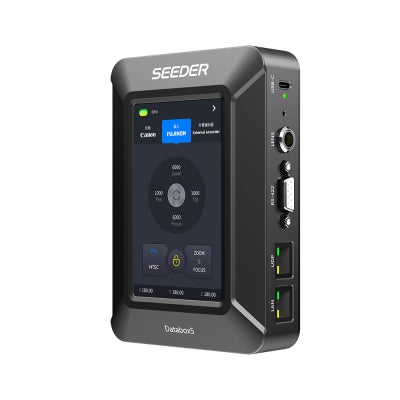

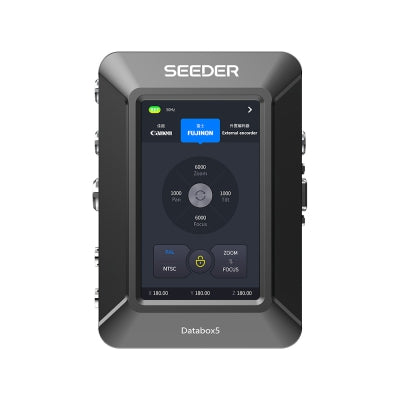

At the heart of the tracking system is the Databox5 data processor, a versatile hub that manages telemetry from various sources. It provides immediate identification for built-in lens encoders and supports multi-axis tracking, including CRANE XYZ parameters. Operators can utilize the touch-screen interface to adjust camera IDs, perform virtual error-based compensation calibration, and manage 0.1 frame accuracy delay adjustments for both tracking and lens data. The system also allows for the inversion of Zoom/Focus data and reverse functionality for Pan/Tilt data to suit specific operator preferences.

Reliable Performance in Demanding Studio Environments

Built for the rigors of live production, the S40VR-PT50 operates flawlessly in temperatures ranging from -40°C to +60°C. The physical pedestal offers a versatile working height of 1000mm to 1640mm, providing ample range for diverse shooting angles. By supporting simultaneous output through RS422 and Ethernet directional UDP, the system ensures redundancy and flexibility in data routing. With a transport length of 1060mm and a total weight of 27kg, it provides a stable, high-intensity foundation for the most critical virtual production tasks.
