Broadcast-Grade Studio Tracking for Heavy Camera Rigs

The SEEDER S60VRH is an elite virtual reality and augmented reality (VR/AR) fluid tracking head designed for high-end virtual studios, green-screen sets, and live XR productions. Built with a robust 150mm bowl interface and a heavy-duty payload capacity matching setups from 5kg up to a massive 60kg, the S60VRH is tailored for massive studio camera configurations. By shifting tracking telemetry directly onto the camera-side mechanics, it removes the need for complex, room-based optical tracking sensors, delivering an efficient and reliable tracking foundation for live television, sports, and virtual sets.

High-Resolution Telemetry and Universal Lens Integration

At the heart of the S60VRH are integrated high-precision sensors that yield an exceptional tracking resolution of 8,300,000 positions per 360° across its $+90^\circ$ to $-80^\circ$ tilt and full pan ranges. It continuously streams standardized FREE-D absolute value tracking data simultaneously through serial RS422 and network Ethernet UDP pipelines. The system natively identifies and syncs with the built-in tracking encoders of modern Fujinon and Canon broadcast lenses, instantly pairing camera lens physics with virtual rendering platforms like Unreal Engine.

Advanced Calibration via Databox5 Hub

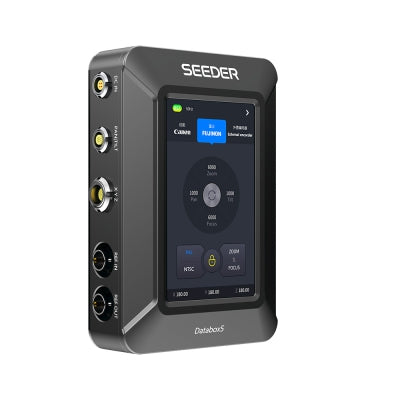

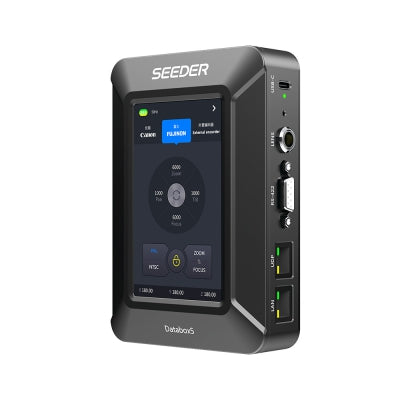

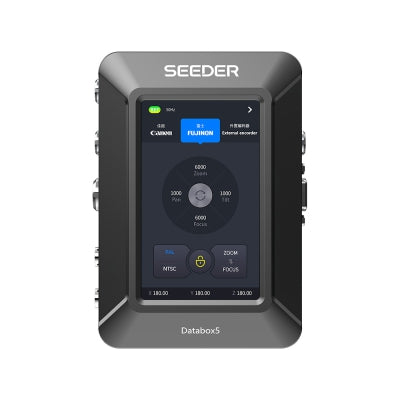

System telemetry is managed by the compact Databox5 data processor, which features a responsive touch screen for quick adjustments. This engine provides 0.1-frame accuracy delay tuning for tracking and lens data, ensuring virtual backdrops match physical camera pans perfectly. The Databox5 also features virtual error-based data compensation calibration, motion data inversion options, camera ID assignments, and adjustable jib-length tracking for crane environments. Backed by hardware sync signal inputs/loop-outs with PAL/NTSC toggling, the unit prevents cumulative data errors on live air.
