Sencore MRD 5800 Advanced Modular Receiver Decoder

Name: Sencore MRD 5800 Advanced Modular Receiver Decoder
Brand: Sencore

Sencore Encoding & Decoding

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Decodes HEVC 4:2:2 8/10-bit, H.264 and MPEG-2 video
Supports resolutions up to 1080p60
Supports up to eight audio PIDs
16APSK and 32APSK satellite demodulation with DVB-S2 configuration
Dual 3G/HD/SD-SDI outputs and dual ASI I/O
Optional MPEG over IP and multiple RF receiver interface configurations

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Advanced Professional Decoding

MRD 5800 is an advanced modular receiver decoder supporting HEVC 4:2:2 8/10-bit together with H.264 and MPEG-2 video up to 1080p60. It supports up to eight audio PIDs for demanding contribution feeds.

Satellite and IP Inputs

Configurable receive options include DVB-S2 with 16APSK and 32APSK satellite demodulation, MPEG over IP, ASI and multiple terrestrial and cable RF standards, providing a flexible ingest platform for mixed broadcast networks.

Contribution and Distribution

Dual 3G/HD/SD-SDI and dual ASI connectivity support contribution, distribution, monitoring and headend workflows where high quality professional decode and adaptable transport interfaces are required.

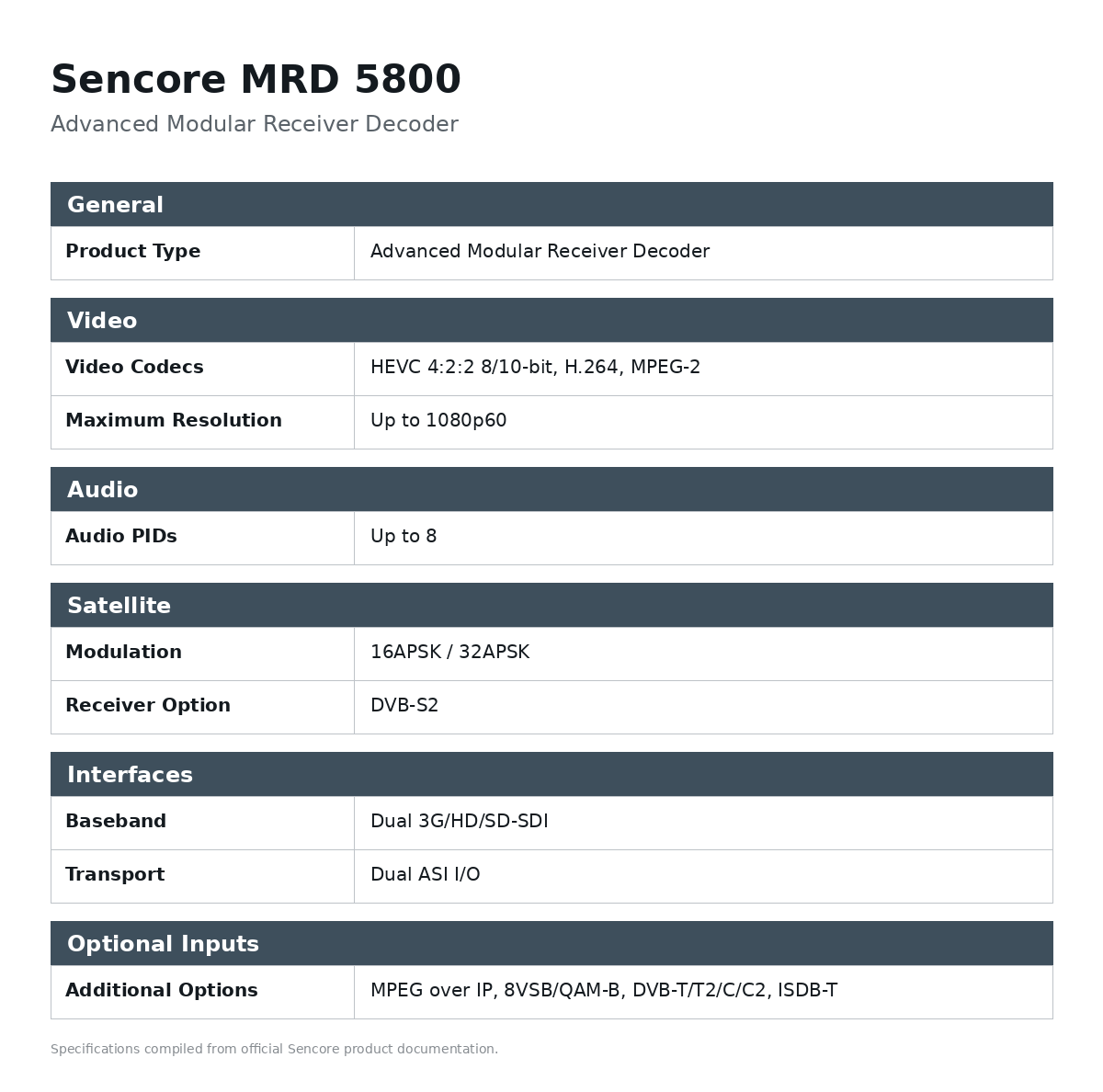

Technical Specifications +

technical specifications
