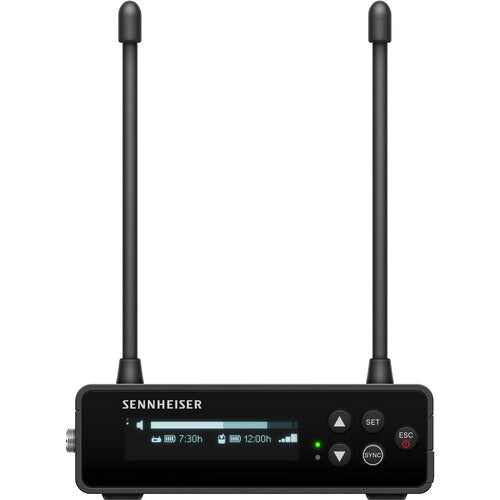

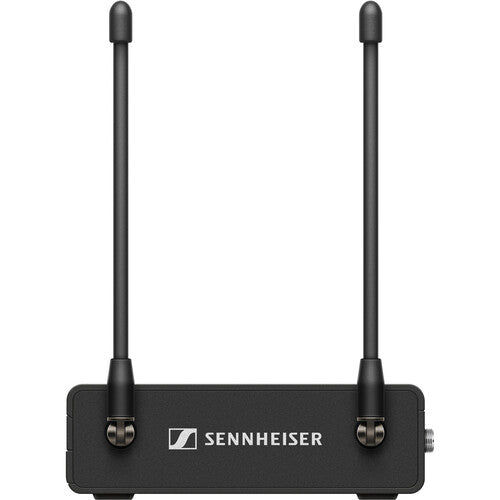

Sennheiser EW-DP EK Camera-Mount Digital Wireless Receiver (R1-6: 520 to 576 MHz)
Product
Warranty
Support
Delivery
Key Features
- Videography, Filmmaking, Newsgathering
- Compatible with EW-D Transmitters
- Single-Channel, Camera-Mount Design
- Pro Features with Fast & Easy Setup
- True-Diversity Reception
- 56 MHz Bandwidth, 2240 Frequencies
- 134 dB of Dynamic Range, 24-Bit Audio
- Setup/Operate from Phone via Bluetooth
- 7-Hour Rechargeable Battery + USB Power
- Expandable to 58 Mic Channels/330' Range
Features & Specifications
Product Overview +
Engineered for the Modern Videographer
The Sennheiser EW-DP EK is a flagship portable receiver designed for DIY creators, mobile journalists, and filmmakers who need professional-grade audio without the need for a sound crew. As the heart of the EW-DP ecosystem, this receiver takes the technical complexity out of wireless audio. By combining the legendary reliability of Sennheiser’s UHF transmission with a fully digital architecture, the EW-DP EK provides a "wired-like" sound quality with a class-leading 134 dB dynamic range.
Intuitive Troubleshooting in the Field
Location recording can be unpredictable, but the EW-DP EK acts as a virtual assistant. Its Smart Notifications system proactively guides you through the setup and operation process. If a talent accidentally mutes their transmitter or if the battery is running low, the receiver alerts you immediately and provides a solution—sometimes even allowing you to override the mute remotely via the Smart Assist app. This ensures that you can focus on the frame while the receiver handles the audio health.
Scalable and Versatile Mounting
The EW-DP EK was built with the camera rig in mind. Beyond the standard cold shoe and 1/4"-20 thread, its magnetic mounting system is a game-changer for multi-person shoots. You can securely snap two receivers together and use a combiner cable to feed both signals into a single 3.5mm camera input. The included magnetic cheese plate ensures that whether you are using a bare mirrorless camera or a fully built-out cinema cage, the receiver has a secure and professional home.
The Reliable Standard for Regional Production
A trusted favorite for digital media houses and independent filmmakers across Pakistan, the UAE, and Africa, the EW-DP EK is built to perform in the most demanding environments. Its rugged build, low 1.9ms latency, and flexible power options make it a versatile workhorse for long production days. For professionals seeking a future-proof, portable digital receiver that simplifies the wireless experience, the Sennheiser EW-DP EK is the definitive choice.

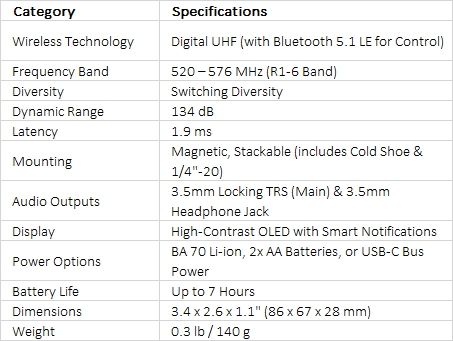

Technical Specifications +
technical specifications
