Smart Videohub CleanSwitch 12x12

Blackmagic Design Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

12 × 6G-SDI inputs and 12 × 6G-SDI outputs
Built-in re-synchronizer on all 12 inputs for clean switching
Supports SD, HD and Ultra HD formats up to 2160p30
Simultaneous multi-format routing with SDI reclocking on all outputs
Front-panel buttons, spin knob and built-in LCD for routing and monitoring
Ethernet remote control plus RS-422 router control

Pricing Dhs. 0.00

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Clean-Switch 12x12 SDI Routing

Smart Videohub CleanSwitch 12x12 is a compact professional 6G-SDI router with 12 inputs and 12 outputs for broadcast and live production environments requiring clean source changes.

Input Re-Synchronization

A built-in re-synchronizer on each of the 12 inputs enables clean switching between sources of the same video standard and allows the unit to be used as 12 re-synchronizers for automatic re-timing of SDI feeds.

SD, HD and Ultra HD Support

The router supports SD, HD and Ultra HD formats up to 2160p30, automatic SD/HD/6G-SDI detection, simultaneous multi-format routing and SDI reclocking on all outputs.

Integrated and Remote Control

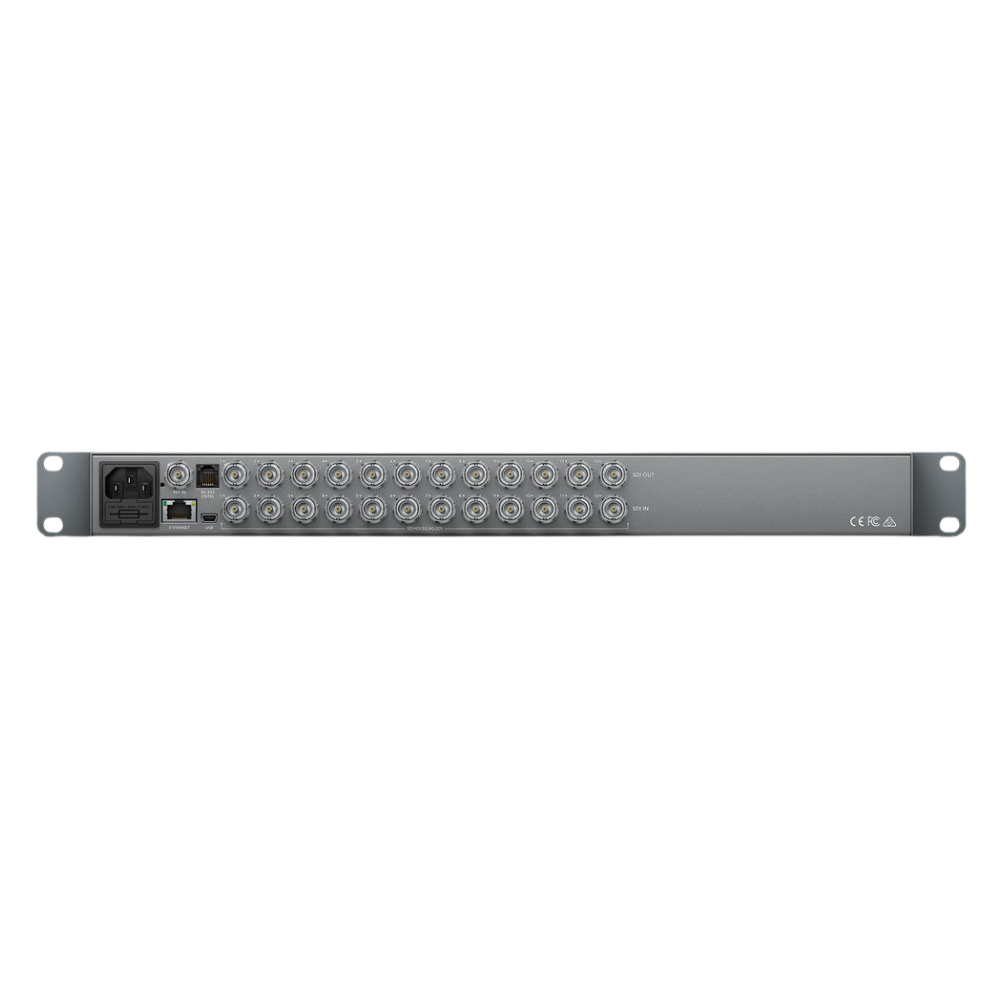

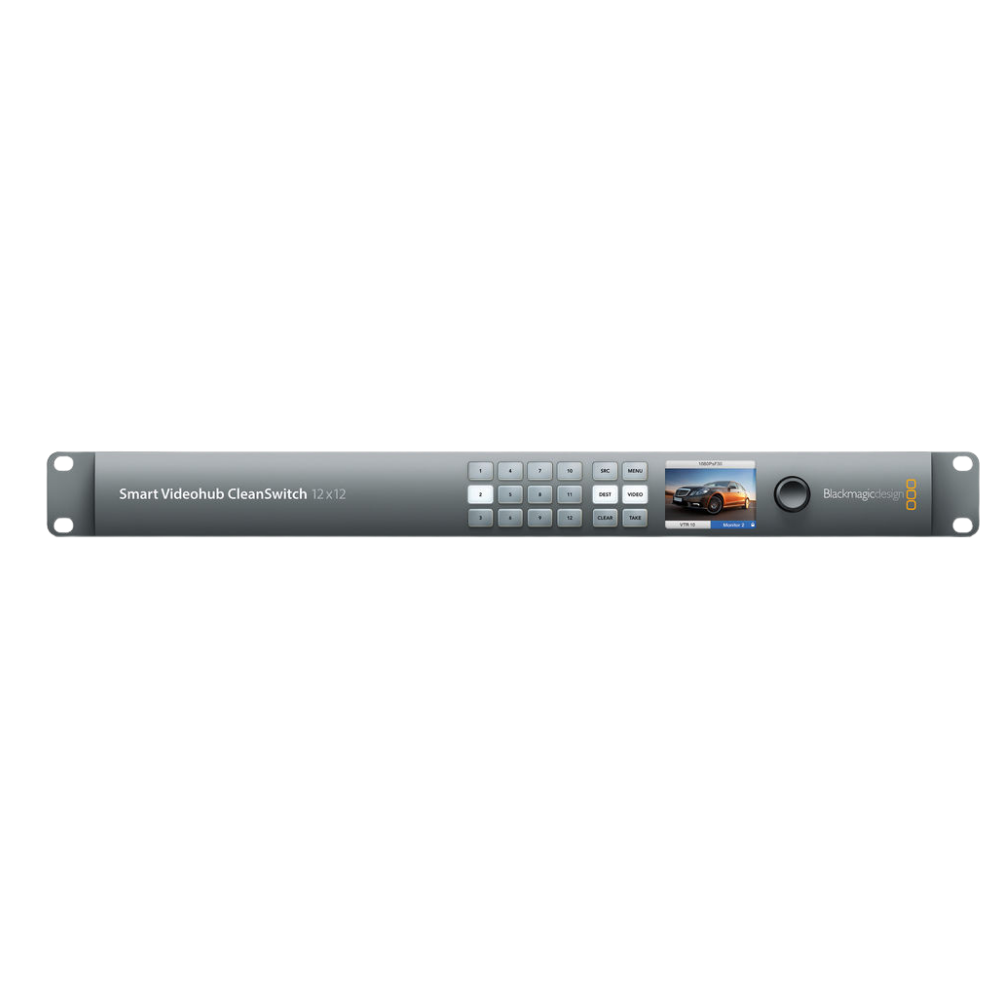

Front-panel routing buttons, a scroll wheel and built-in LCD provide direct routing and video monitoring. Ethernet supports remote control, while RS-422 provides router crosspoint control and USB is used for updates.

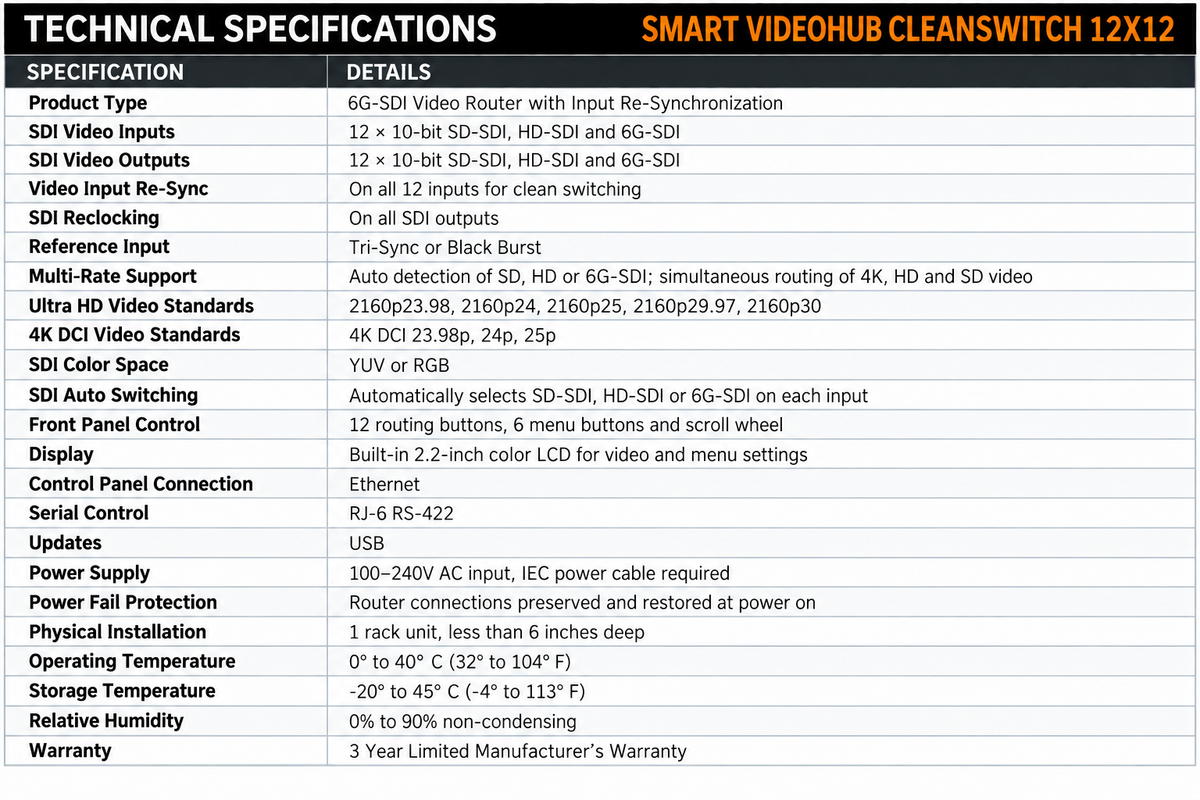

Technical Specifications +

technical specifications
