Cost-Effective Single-Mode Infrastructure Conversion

The Sony HKCU-SM100 is a highly specialized, ultra-compact CCU extension adaptor engineered to convert standard SMPTE hybrid fiber connections into lightweight, long-distance Single-Mode Fiber (SMF) configurations. Positioned at the base station machine rack, this inline optical adapter acts as a crucial bridge, allowing engineering teams to bypass the heavy weight and strict distance limitations of copper-hybrid camera lines by migrating to affordable, enterprise-grade single-mode fiber backbones.

Synergistic Dual-Adaptor System Architecture

To unlock its full operational range, the HKCU-SM100 works in direct technical tandem with the field-deployed HDCE-100 camera extension adaptor. By utilizing the HKCU-SM100 at the Camera Control Unit (CCU) end and the HDCE-100 out in the field, broadcasters can establish an uncompromised, uncompressed digital signal path spanning up to 10km. For demanding 4K live sports or large-scale multi-venue events, this dual-adaptor topology can be integrated alongside a BPU-4000 baseband processing unit to cleanly route signals out to an HDC-4300 or CA-4000 camera configuration.

Seamless Integration and Space Optimization

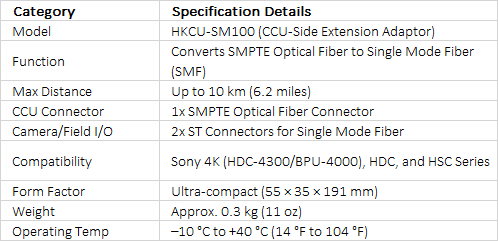

The physical footprint of the HKCU-SM100 is engineered for high-density machine room backplanes. Weighing just 0.3 kg and measuring a slim 55mm wide, it can be mounted effortlessly into standard technical furniture layouts without creating bulk. It features a native SMPTE optical connector on one side to attach straight to the CCU, and two heavy-duty ST single-mode fiber terminals on the other, giving engineers a fast, foolproof patch point that streamlines on-site engineering routines.

Crucial Long-Range Routing for Emerging Media Hubs

The Sony HKCU-SM100 is an invaluable utility asset across Pakistan, the UAE, and Africa, where production companies and outside broadcast (OB) providers must routinely run lines across massive stadium infrastructures, golf greens, or sprawling urban developments. Rather than purchasing specialized long-range camera chains, technical directors can combine this cost-effective adaptor with their existing HDC or HSC series fleets to handle complex long-distance events on a budget. For live facilities transitioning into massive multi-acre perimeters, the HKCU-SM100 represents an essential, high-efficiency system enhancement.
