Key Features

Compact Audio Gateways: Extends Dante, AES, and analog audio into SMPTE ST 2110 IP networks.
Modular Configurations: Includes Dante 64x64, AES3 6x6, 8x Analog In, and 8x Analog Out variants.
ST 2110 Audio: Supports ST 2110-30 Class A/B/C streams up to 16 channels with SMPTE ST 2059 PTP synchronization.
Hitless Redundancy: Provides dual 1GbE interfaces with SMPTE ST 2022-7 network protection.
NMOS Integration: Supports AMWA NMOS IS-04 device discovery and IS-05 connection management.
Dante Integration: Supports Dante Domain Manager and PTPv1 leader/follower modes on the Dante variant.
Pro-Audio Quality: Provides 24-bit audio at 44.1/48kHz sampling rates.
Flexible Installation: Supports desktop, desk-mounted, and 19" rack-mount deployment.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Compact Edge Gateways for ST 2110 Audio

The Studer STUDER-MINI Audio Gateway series provides granular, low-to-mid density audio ingress and egress for IP broadcast networks. Designed as a cost-effective supplement to larger Studer D23/D21 stageboxes, these throwdown units bridge legacy analog, digital AES3, and Dante audio signals directly into SMPTE ST 2110-30 infrastructures over standard Gigabit Ethernet networks.

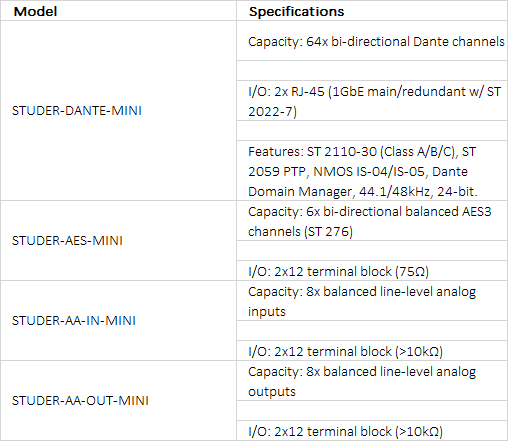

STUDER-MINI Model Lineup

STUDER-DANTE-MINI: Bridges up to 64 bi-directional Dante audio channels into ST 2110-30 IP streams across 16 configurable multicasts with Dante Domain Manager support.
STUDER-AES-MINI: Interfaces 6 bi-directional balanced AES3 (ST 276) digital audio channels with stereo ST 2110-30 multicast streams via terminal block connections.
STUDER-AA-IN-MINI: Converts 8 balanced line-level analog audio inputs into 4 stereo SMPTE ST 2110-30 IP multicasts.
STUDER-AA-OUT-MINI: Receives 4 stereo ST 2110-30 IP multicast streams and converts them to 8 balanced line-level analog audio outputs.
