High Precision Carbon Fiber Mobility for ENG Broadcasters

The T100C4 Carbon Fiber Tripod System is a high-precision, professional camera support platform engineered specifically for fast-paced Electronic News Gathering (ENG) and field production workflows. Tailored to confidently stabilize industry-standard broadcast cameras—such as the AJ-PX800 and PDW-680—this premium system relies on a 4-section, 3-stage 100% carbon fiber leg architecture to minimize structural flex while keeping physical transport weight light. By pairing comprehensive CNC-machined components with tough 304 stainless steel load-bearing joints, it delivers a highly stable, flex-free shooting framework that news crews can depend on.

Dynamic Angle Versatility and Fluid Hydraulic Control

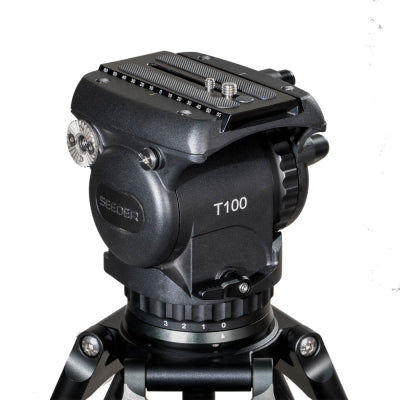

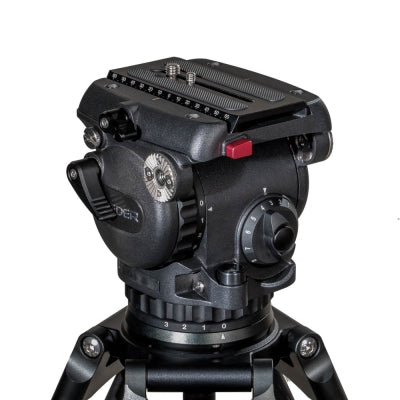

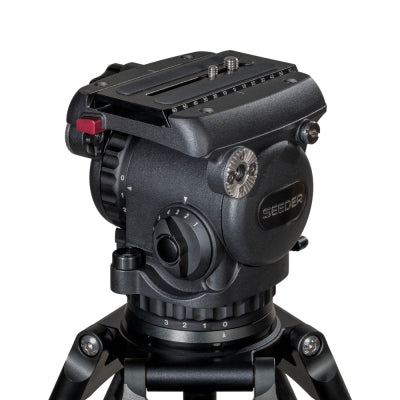

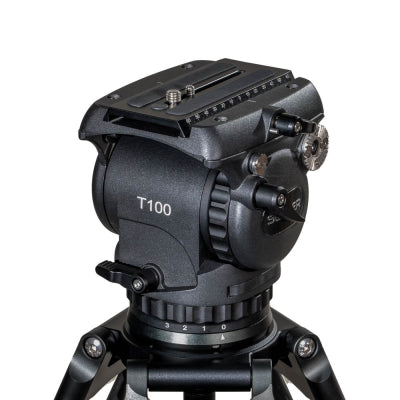

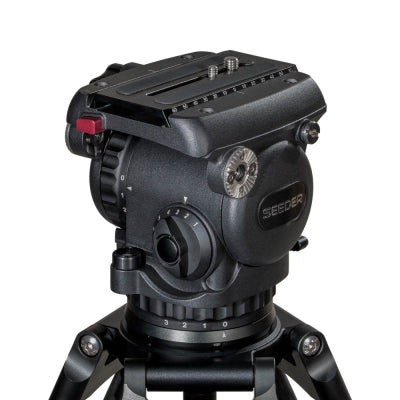

What truly sets this innovative model apart is its wide operating altitude range, enabling camera operators to drop their lens from a maximum height of 1750mm down to a super-low position of 270mm for impactful low-angle tracking shots. At the heart of this flexible architecture is the specialized T100H fluid head, introducing a fluid damping structure and an effective 8-level counterbalance system. Camera operators can leverage a standard $+90^\circ$ to $-75^\circ$ tilt range along with 4 steps of horizontal and vertical drag to manage incredibly uniform tracking maneuvers. The system perfectly neutralizes the center of gravity for equipment builds weighing anywhere from 3kg up to 12kg, enabling effortless tracking control when utilizing the included PB100 single telescopic pan bar and quick-release PL100 plate mechanism.

Compact Transportation Shape Built for Constant Travel

Designed to withstand continuous travel and rapid deploying, the carbon fiber tripod legs contract to a highly portable 750mm transport shape. It functions flawlessly in punishing outdoor environmental climates ranging from a freezing $-40^\circ\text{C}$ all the way up to a scorching $+60^\circ\text{C}$. This complete, out-of-the-box field kit arrives production-ready with the fluid head, a quick-release plate, dual standard $1/4''$ and $3/8''$ camera tie-down screws, a telescopic pan bar, 100% carbon fiber legs, and a premium custom CO100 padded transport bag.
