Agile Support Architecture for Mobile Hand-Held Cameras

The T40 Aluminum Tripod System is a professional-quality camera platform engineered specifically for fast-paced field operations and light news production builds. Perfectly optimized to support professional hand-held video cameras like the AJ-PX298 and PXW-X280, this nimble system provides a stable foundation that completely cuts out shaky panning elements. By pairing high-grade aluminum legs with precision-engineered 304 stainless steel load-bearing joints, it delivers a highly durable, flex-free shooting framework that run-and-gun media professionals can depend on.

Fluid Hydraulic Execution and Precision Engineering

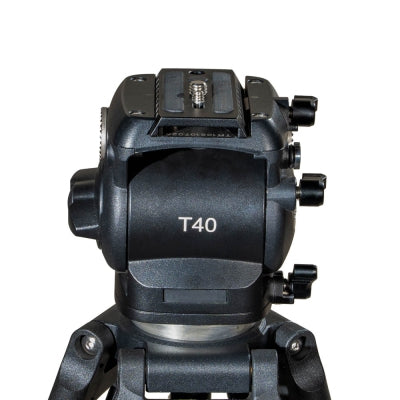

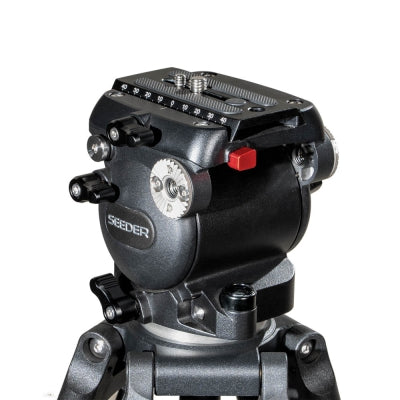

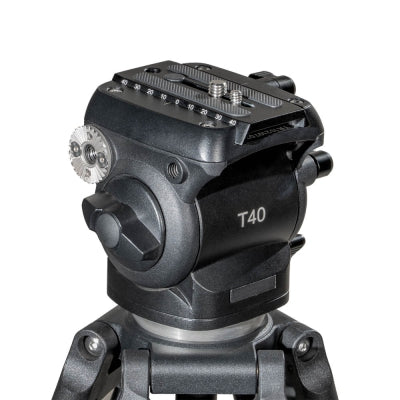

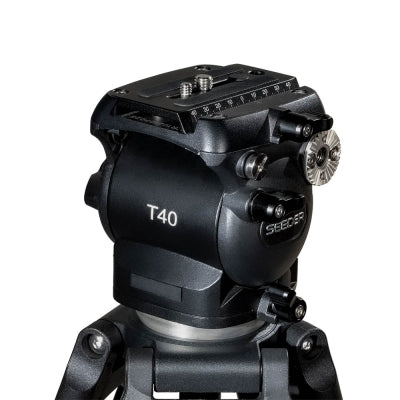

At the heart of this portable configuration is the specialized T40H fluid head, introducing a fluid damping structure that facilitates uniform pan and tilt tracking across a broad $+90^\circ$ to $-80^\circ$ tilt scope. To survive demanding wear and tear on location, all key moving and wearing components are fully CNC-machined. The system smoothly counteracts and balances equipment payloads ranging from 0kg up to 5kg, enabling effortless tracking control when utilizing the included PB40 single pan bar and the quick-release PL40 plate mechanism.

Built to Perform Across Extreme On-Location Environments

Designed for continuous travel and rapid deploying, the 3-section tripod legs contract to a highly portable 800mm transport shape. It functions flawlessly in punishing environmental climates ranging from a freezing $-40^\circ\text{C}$ all the way up to a scorching $+60^\circ\text{C}$. The production-ready out-of-the-box field kit arrives complete with the T40H head, a PL40 quick-release plate, dual standard $1/4''$ and $3/8''$ camera tie-down screws, a PB40 single pan bar, AT142 aluminum tripod legs, and a premium custom CO40 padded transport bag.
