Thor Broadcast F-GET-TR-SM Gigabit Ethernet Single-Mode Fiber Media Converter | Dual SC | 20, 40 or 80 km Long-Haul Versions

Gigabit Between Two Buildings

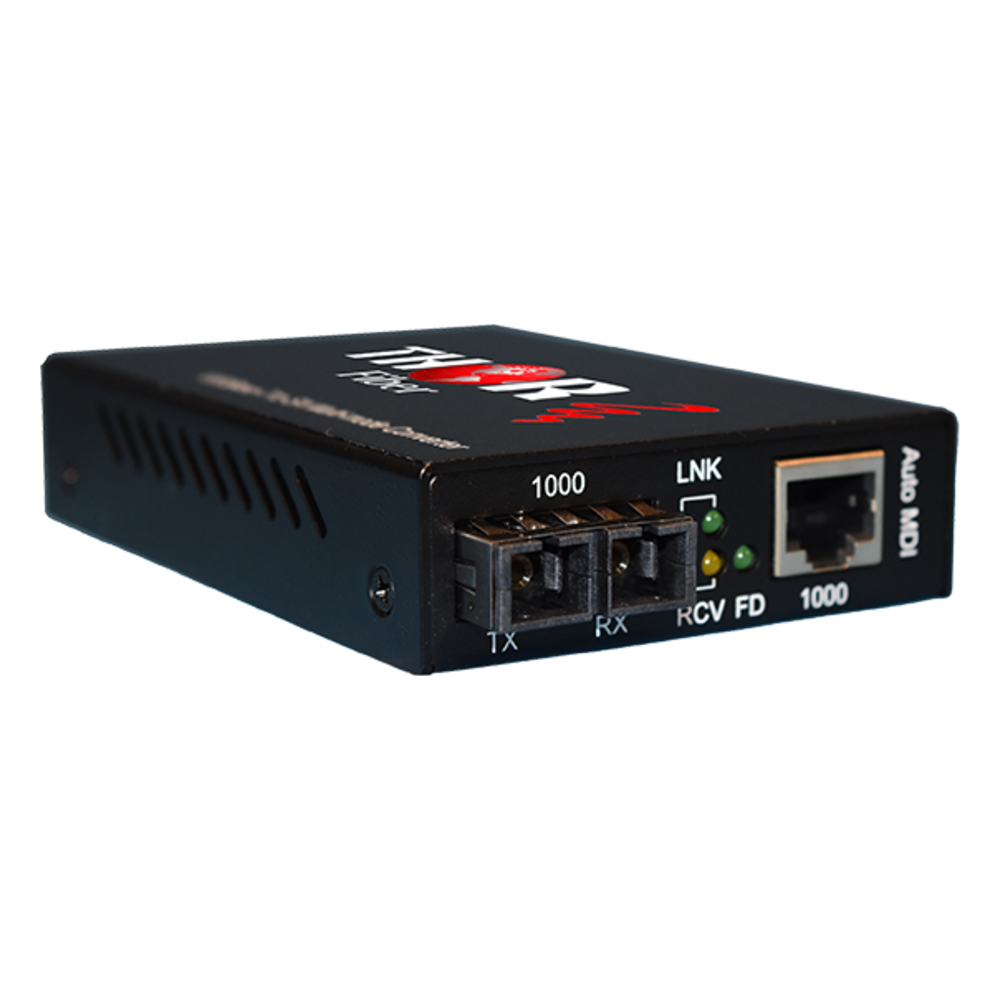

The F-GET-TR-SM joins 10/100/1000 Base-T equipment to single-mode fiber using a duplex SC connector, extending a Gigabit segment far past the copper limit. It is the single-mode member of the F-GET-TR series, with a multimode sibling for shorter in-building runs. The usual job is connecting IP devices or network segments at two locations, such as separate buildings or a remote equipment room.

Standards, Testing and Throughput

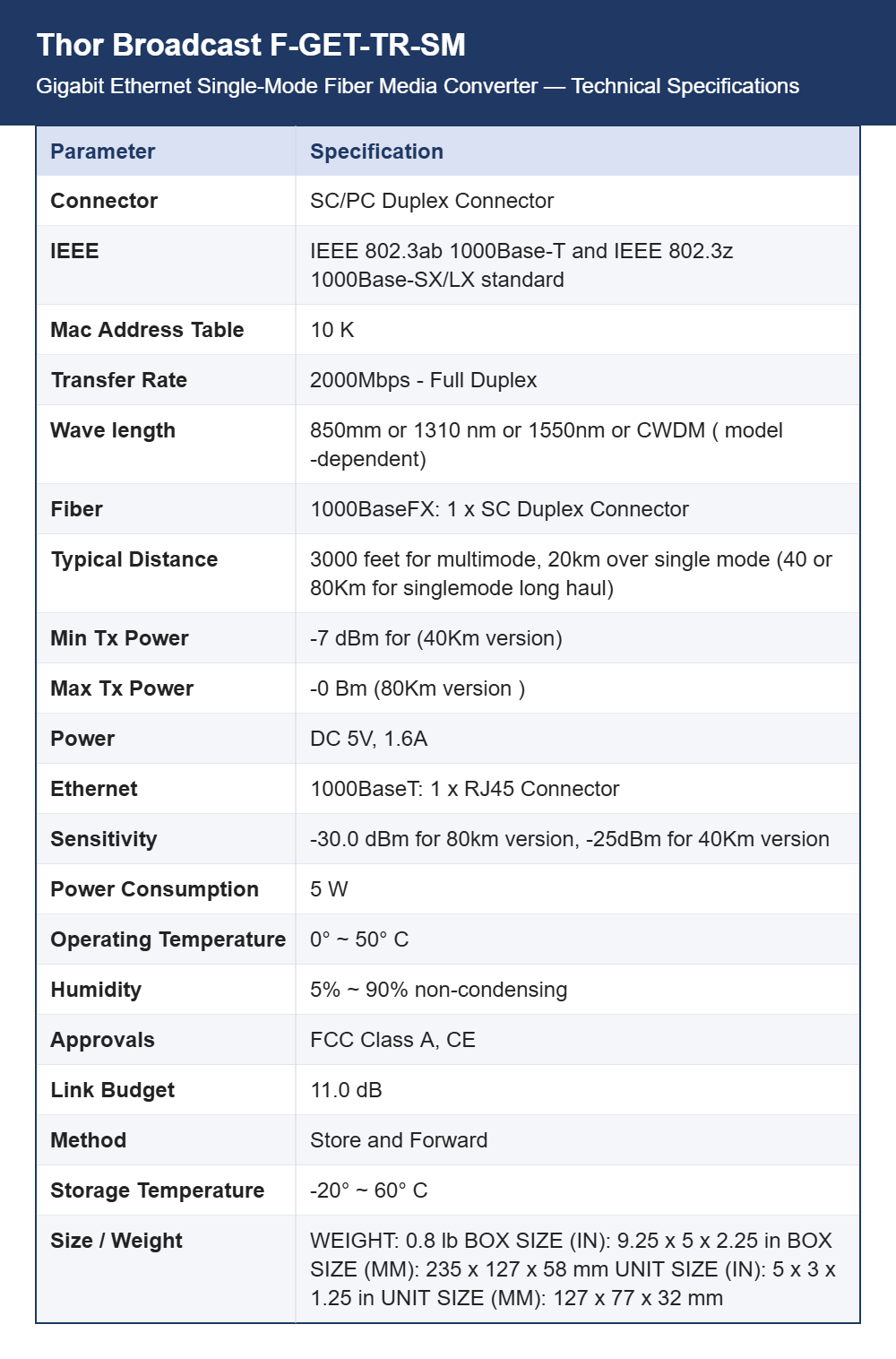

The converter meets IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX. The RJ45 port handles auto MDI/MDI-X and automatic polarity correction, so cable type and pair order do not matter during installation. Local and remote loopback testing helps prove the link at commissioning time. Forwarding is store and forward, with a 10K MAC address table and a 2000 Mbps full-duplex transfer rate.

Ports, Reach and Optical Levels

Connections are one RJ45 1000BaseT port and one duplex SC/PC fiber port. Typical distance is 20 km on single-mode with 40 and 80 km long-haul versions, while multimode reaches about 3000 feet. Wavelength is 850, 1310 or 1550 nm or CWDM depending on the model. Minimum transmit power is -7 dBm on the 40 km build, and sensitivity is -25 dBm at 40 km and -30 dBm at 80 km.

Power, Climate and Size

A DC 5 V 1.6 A supply powers the converter and consumption is about 5 W. Operating temperature is 0 to 50 degrees C, storage from -20 to 60 degrees C, and humidity 5 to 90 percent non-condensing. Approvals are FCC Class A and CE, and the link budget is 11.0 dB. Shipping weight is roughly 0.8 lb, so wall or shelf mounting needs no special bracketry.

Reach Versions and Rack Mounting

Ordering codes are F-GET-TR-SM-20km, F-GET-TR-SM-40km and F-GET-TR-SM-80km for single-mode links. Where many converters land in one room, the 14-slot chassis F-Chassis-14 keeps them powered and organized. Campus networks, CCTV backhaul, industrial plants and broadcast facility IT are typical settings. StreamPort Media can confirm which reach version matches your measured loss before the order is placed.
