Military-Grade Field Endurance for Japanese Camera Chains

The Canare OCC-9T and OCC-7T pre-terminated field assemblies represent the absolute peak of deployment durability, operating as a high-performance audio cable and video cable combined into one. Tailored explicitly for central broadcasting systems that utilize Japanese-style OC interfaces and Hybrid-OPS connections, these factory-finished runs are engineered to withstand severe physical punishment. By utilizing a specialized thermoplastic polyurethane (TPU) outer jacket compound, these cables survive heavy scraping, twisting, and impacts while remaining supple and easy to roll up in freezing field environments.

Complete Convergence of Multi-Channel Feeds and Power

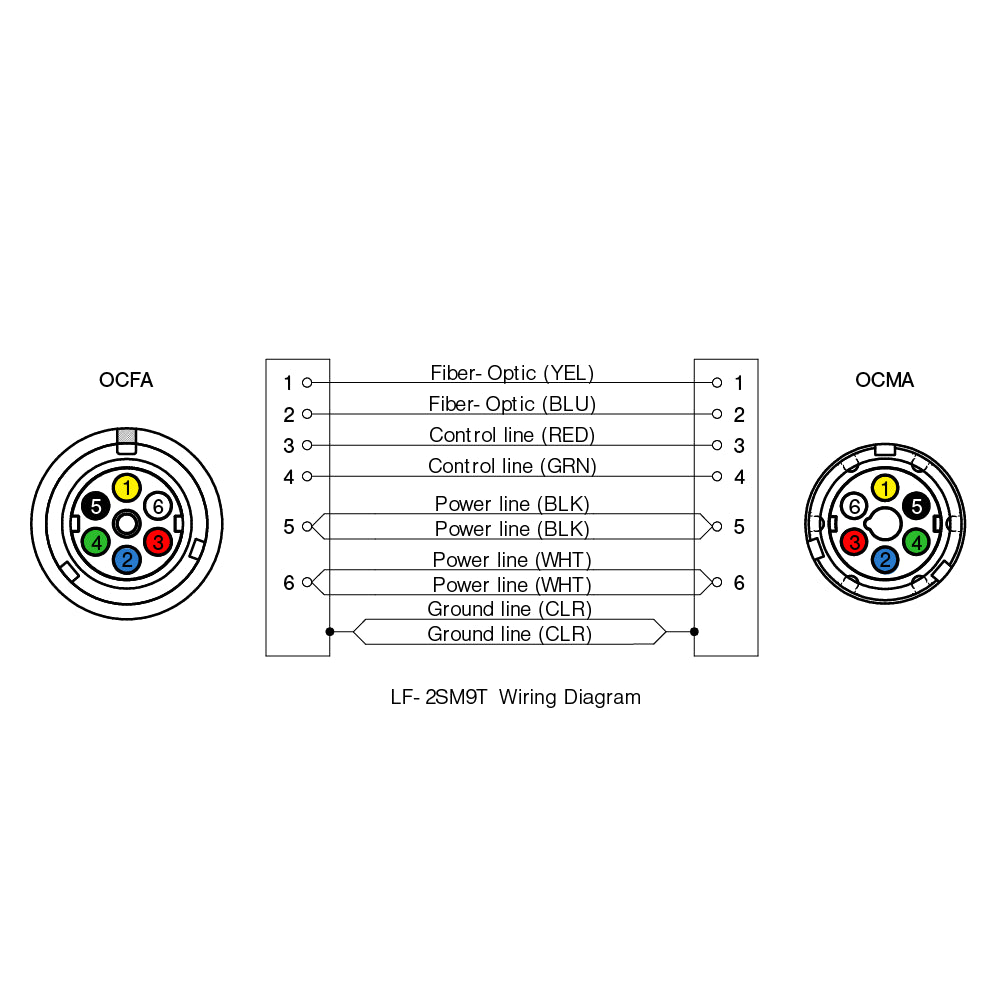

By combining high-precision single-mode optical glass elements with heavy-duty copper electrical conductors, a single line completely manages your studio-to-field connection workflow. The fiber cores transport pristine, uncompressed HD/4K/8K video trunk feeds along with real-time return viewfinder channels. Concurrently, the insulated copper multi-core block supports zero-latency studio intercom talkback networks, talent microphones, and remote camera shading telemetry, while delivering high-voltage auxiliary power directly from the CCU to eliminate local on-camera batteries.

Tailored Form Factors for Demanding Broadcast Arenas

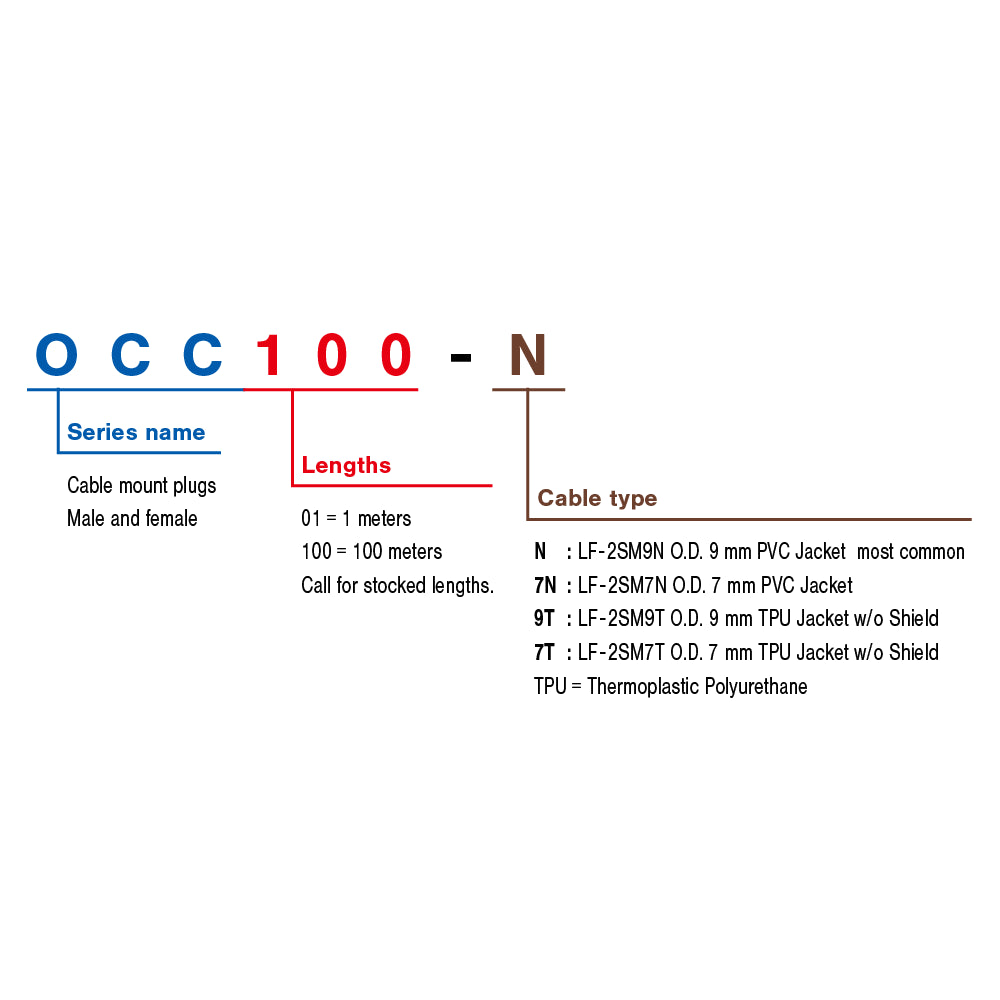

Active remote operations demand different physical cable attributes based on the layout of the venue. The standard 9.2mm profile version (OCC-9T) delivers the maximum auxiliary power transmission range alongside heavy-duty ruggedization for long-distance stadium crawls or outside broadcast (OB) truck connections. For hyper-mobile situations requiring fast setups, the slim 7.1mm version (OCC-7T) drops physical volume and weight dramatically, providing handheld camera operators and ENG field crews with a loose, highly flexible, and lightweight deployment solution.

Note: Due to the condensed size of its copper core matrix, the auxiliary electrical power transmission distance of the slim 7.1mm (OCC-7T) variant is significantly shorter than typical standard-diameter HFO camera cables.
