Professional Intercom Keypanel

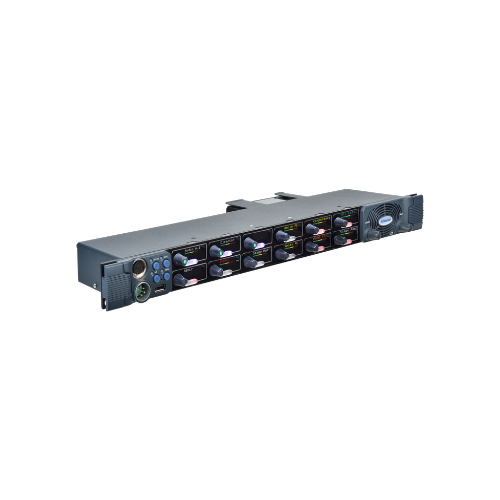

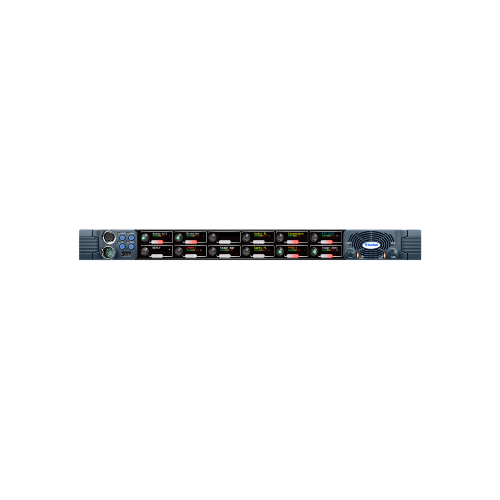

The VI-PNLB-12R is a compact rackmount intercom keypanel designed for broadcast production, control rooms, and live event environments. The panel provides 12 programmable keysets with rotary level controls that allow operators to manage multiple communication channels from a single interface.

Each keyset features a 10-character color display with a volume bar and tally light to clearly show communication status and configuration.

Flexible Communication Management

The panel allows communication with individual users, groups, IFB channels, and system functions. Rotary level controls provide quick audio adjustment, while dedicated talk buttons allow instant communication with assigned channels.

Advanced features such as key stacking, shift pages, and separate talk and listen assignments help users manage complex communication workflows efficiently.

Multiple Connectivity Options

The VI-PNLB-12R supports several connection types for integration with professional intercom systems.

It can connect through network LAN ports for AES67 capable systems or through analog connections directly to Eclipse MVX interface cards. This flexibility allows the panel to operate in both local and distributed communication environments.

Integrated Audio and Control Interfaces

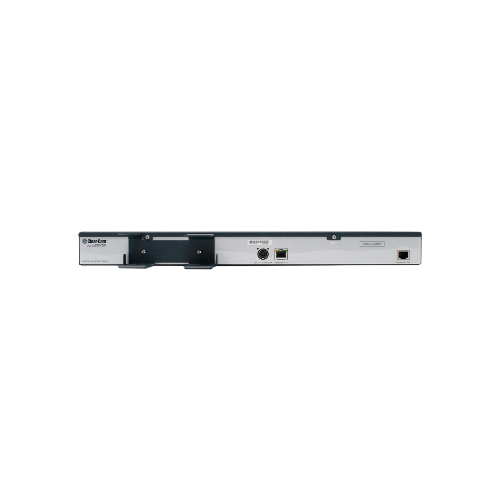

The rear panel includes several audio and control connections for headsets, microphones, and external devices. These interfaces allow the keypanel to integrate easily with broadcast equipment and external control systems.

Connections include headset interfaces, gooseneck microphone input, auxiliary audio I/O, GPIO logic connections, and expansion panel ports.

Advanced System Features

When connected to an Eclipse Digital Matrix system, the panel provides additional advanced capabilities. These include key stacking, expansion panels, dynamic routing, and remote IFB control.

The built-in DSP mixer also provides filtering, routing, and dynamics processing to improve audio communication performance.
