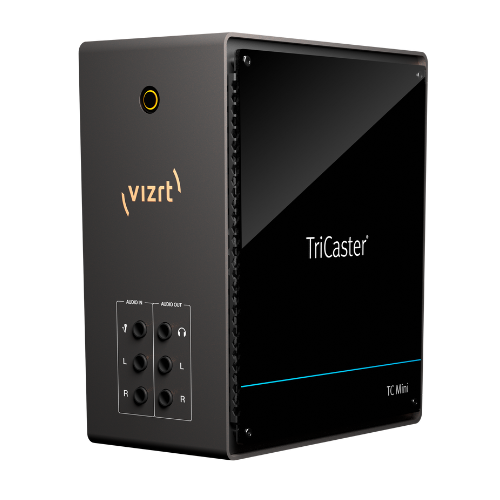

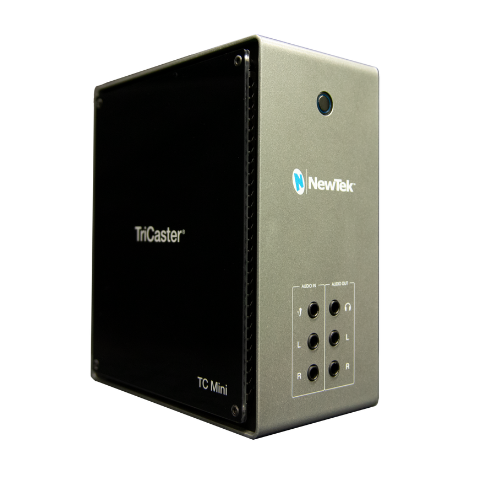

Vizrt TriCaster Mini X is a compact yet powerful live production system designed to deliver professional multi-camera switching, streaming, recording, and graphics from a single desktop unit. Built for studios, corporate production, education, houses of worship, and mobile live events, it combines HDMI and IP-based workflows to support modern hybrid production environments. With native support for up to 4K video, integrated graphics, advanced audio mixing, and low-latency processing, TriCaster Mini X enables high-quality live productions without the complexity of traditional broadcast systems.

Flexible HDMI and IP Video Production

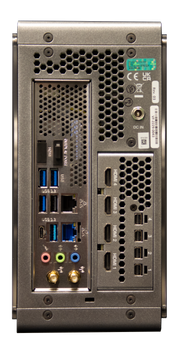

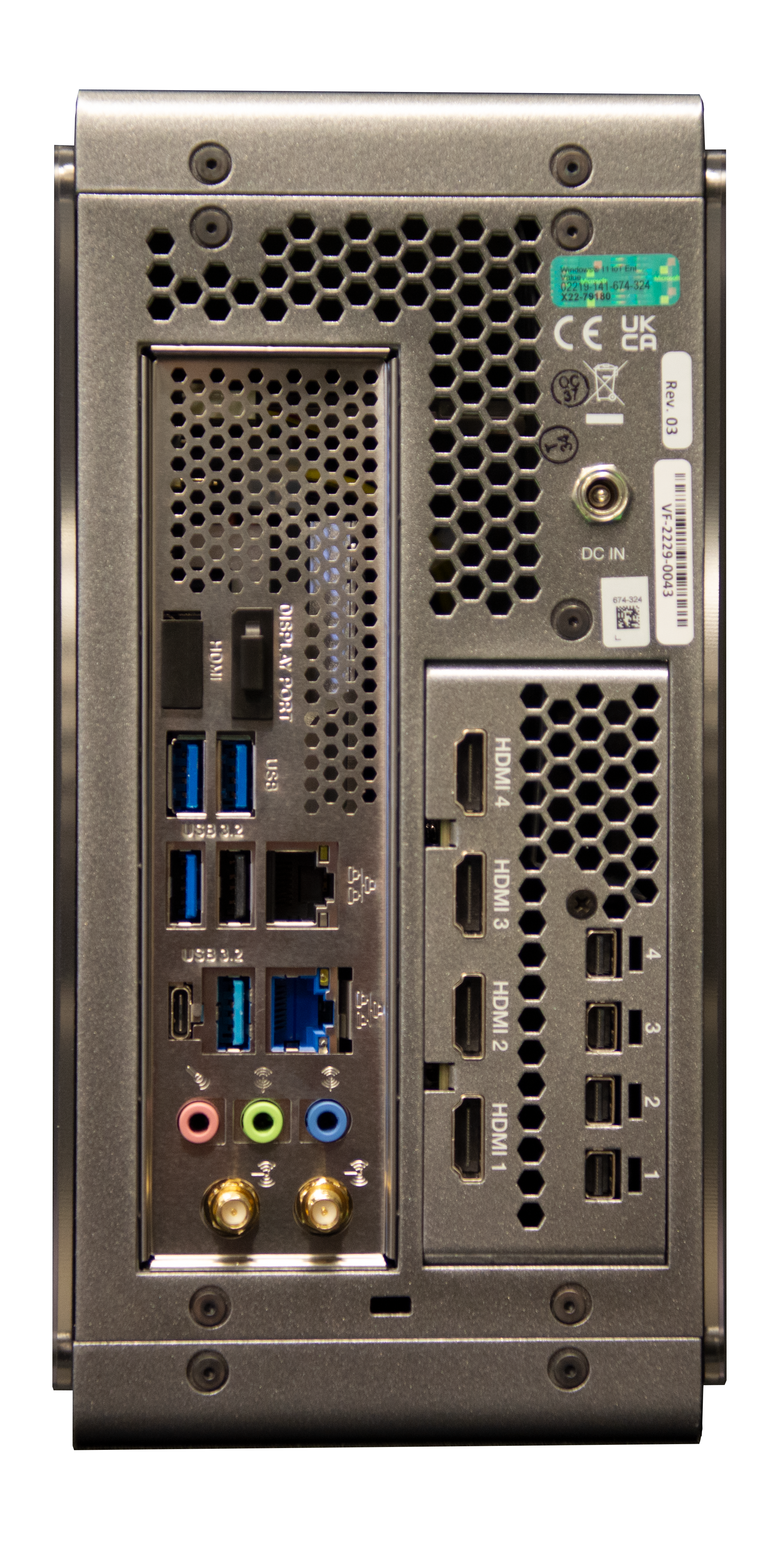

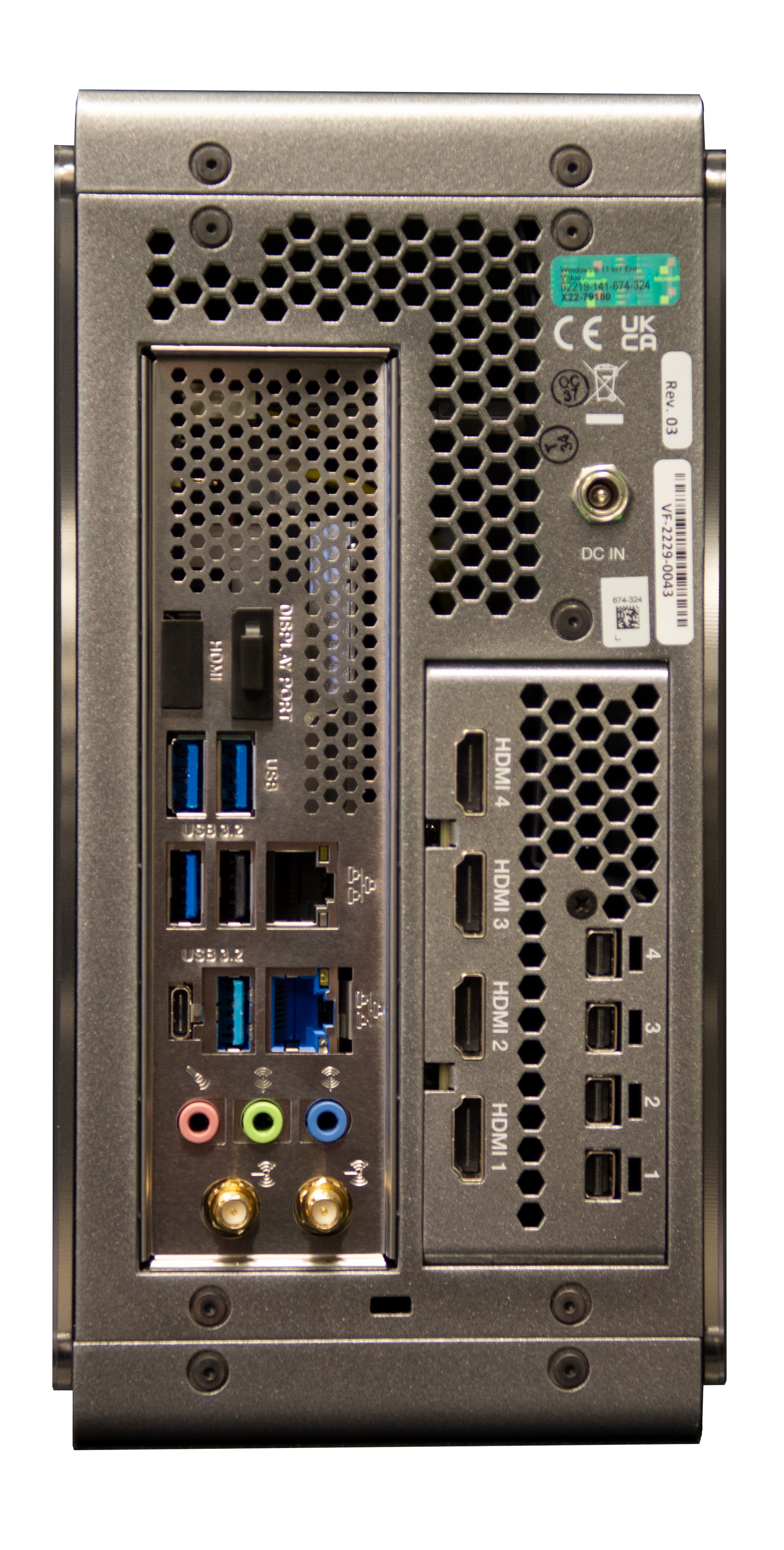

TriCaster Mini X features four HDMI inputs that allow direct connection of cameras, laptops, media players, and other AV sources with no configuration required. In addition to baseband inputs, it supports up to eight IP video sources via NDI, enabling seamless integration of remote cameras, computers, and network-based video devices. This hybrid approach makes Mini X ideal for productions that blend in-room and remote contributors.

Live Switching, Streaming, and Recording

The system supports live switching, streaming, and recording simultaneously, allowing productions to go live while capturing high-quality program and isolated recordings internally. With support for video playback directly from the system, there is no need for external playout hardware. Multiple mix outputs and IP-based program feeds make it easy to distribute content to screens, recorders, or streaming platforms.

Integrated Graphics and Virtual Sets

TriCaster Mini X includes built-in live titling and motion graphics tools, enabling professional on-air branding without external graphics systems. LiveMatte chroma and luma keying are available on all input channels and mix effect buses, supporting clean green screen and virtual set workflows. LiveSet technology provides more than 30 virtual sets and box effects, allowing small studios to achieve the look of larger broadcast environments.

Advanced Audio Mixing and Monitoring

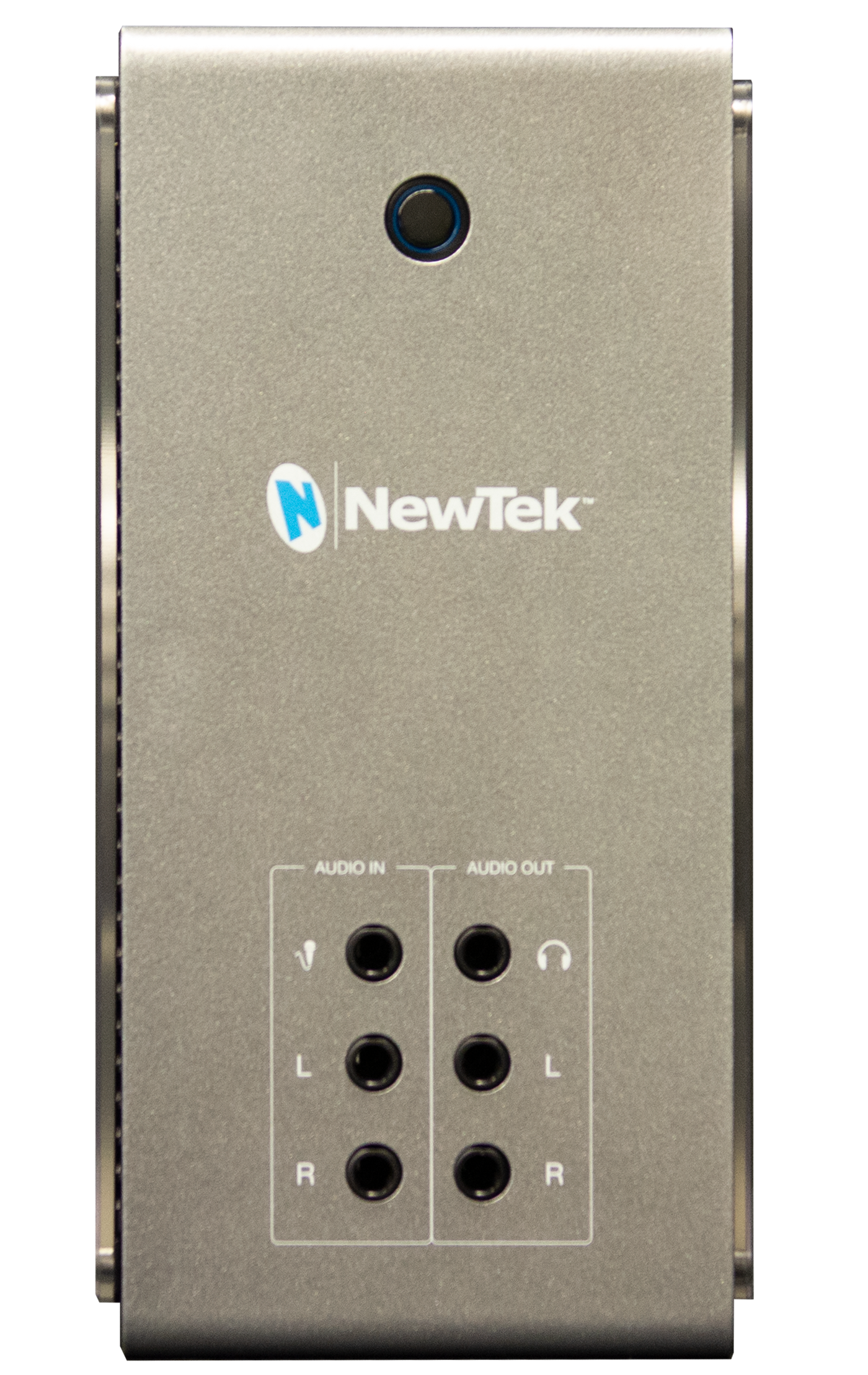

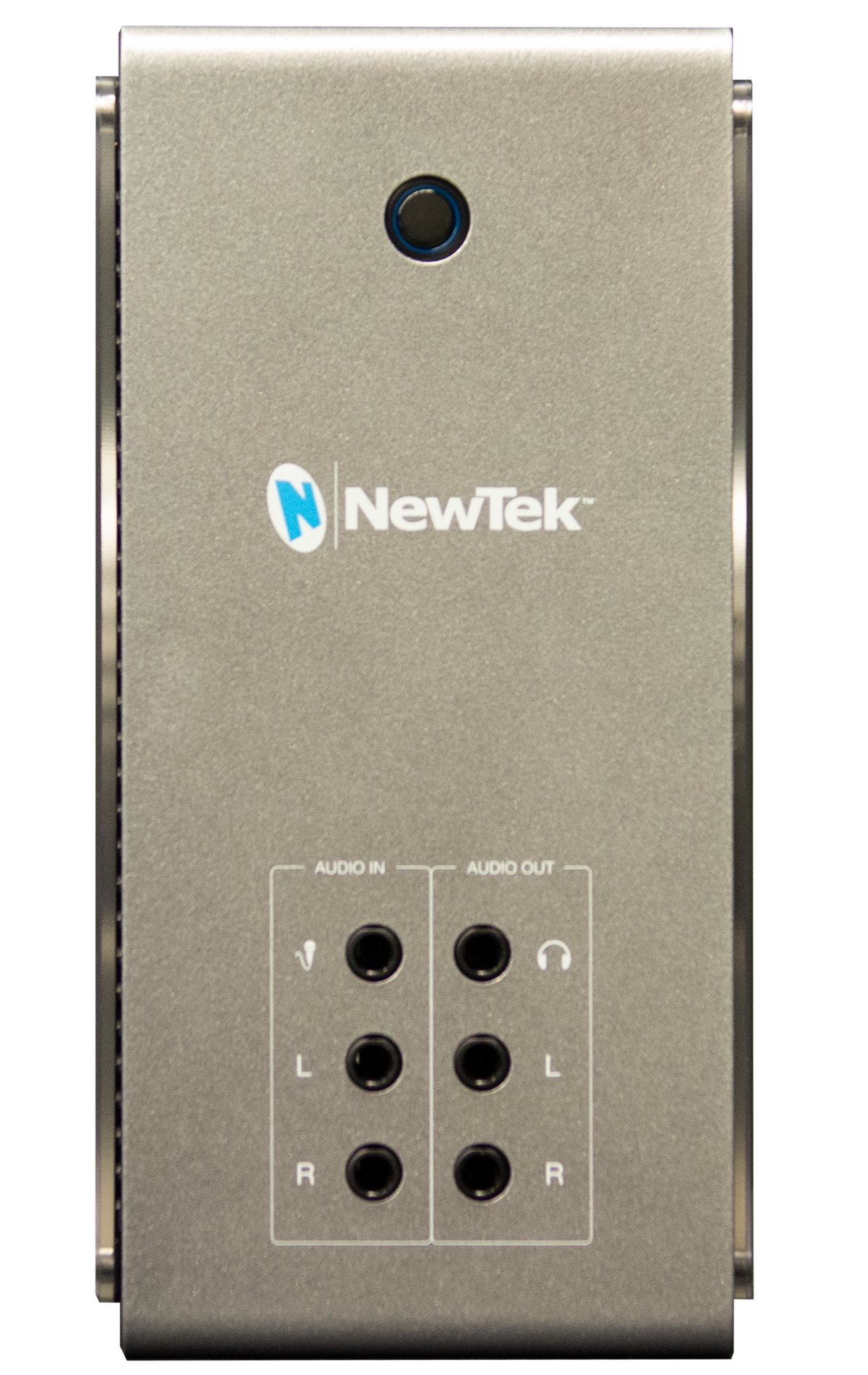

Audio is handled through an integrated multi-channel mixer with support for microphone and line-level inputs, embedded HDMI audio, and internal audio routing. Headphone and line outputs provide reliable monitoring, while low system latency ensures tight audio-video synchronization. Multi-channel recording enables isolated audio capture for post-production flexibility.

Remote Contribution and Web Integration

TriCaster Mini X supports live video calling through integrated software workflows, allowing remote guests to appear directly in the production. Live Link technology enables web pages to be rendered directly inside the system, making it possible to pull graphics, images, videos, and live data from web-based platforms into a live show without third-party tools. DataLink further enhances automation by enabling real-time data-driven graphics updates.

PTZ Camera Control and Production Automation

The system supports control of up to eight PTZ cameras using serial or network protocols, with integrated presets for fast and repeatable camera moves. Multiple mix effect buses allow complex layering, video re-entry, and creative transitions, giving operators flexibility normally found in much larger production systems.

Low Latency, Compact Design

With a processing latency of approximately 1.5 frames, TriCaster Mini X ensures responsive operation across all connected devices. Its compact desktop form factor, combined with multiple display outputs via mini DisplayPort, makes it well suited for fixed installations, flyaway kits, and mobile production setups.
