Large-Format Cinematic 4K Capture

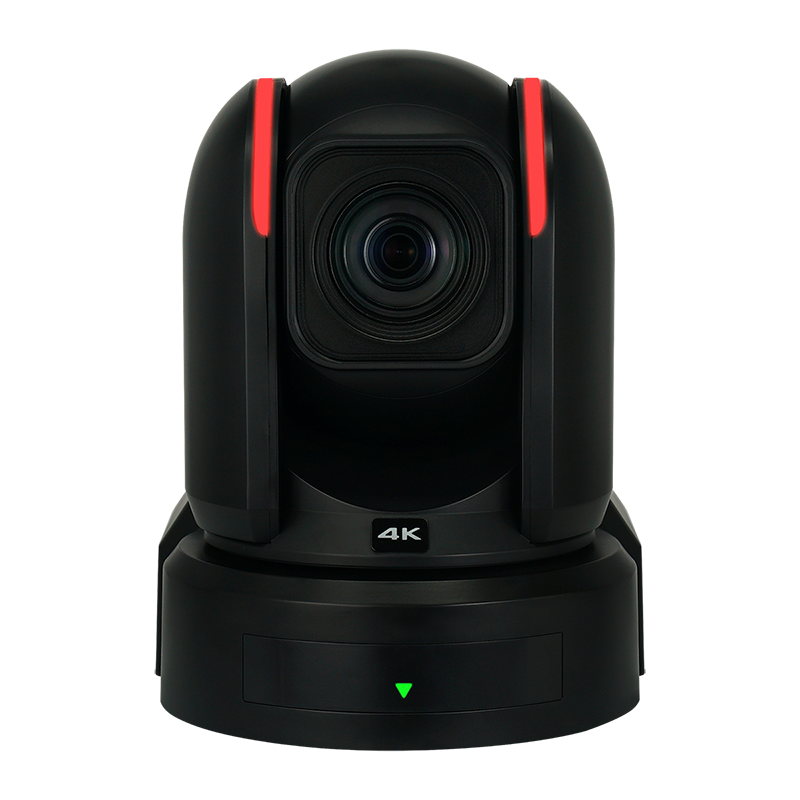

The Bolin R9-418N Indoor 4K NDI PTZ Camera redefines large-sensor performance for remote broadcast studios, high-end live staging, virtual sets, and premium corporate AV applications. Built around an elite 1.0-type back-illuminated Sony Exmor R CMOS sensor core, the camera captures video with cinema-grade image depth and superior clarity. This massive light-gathering surface excels in demanding, low-ambient lighting environments, working alongside a deep 130dB wide dynamic range (WDR) engine to maintain natural color accuracy and minimize noise artifacts.

World-Class Zeiss Optics and Stability

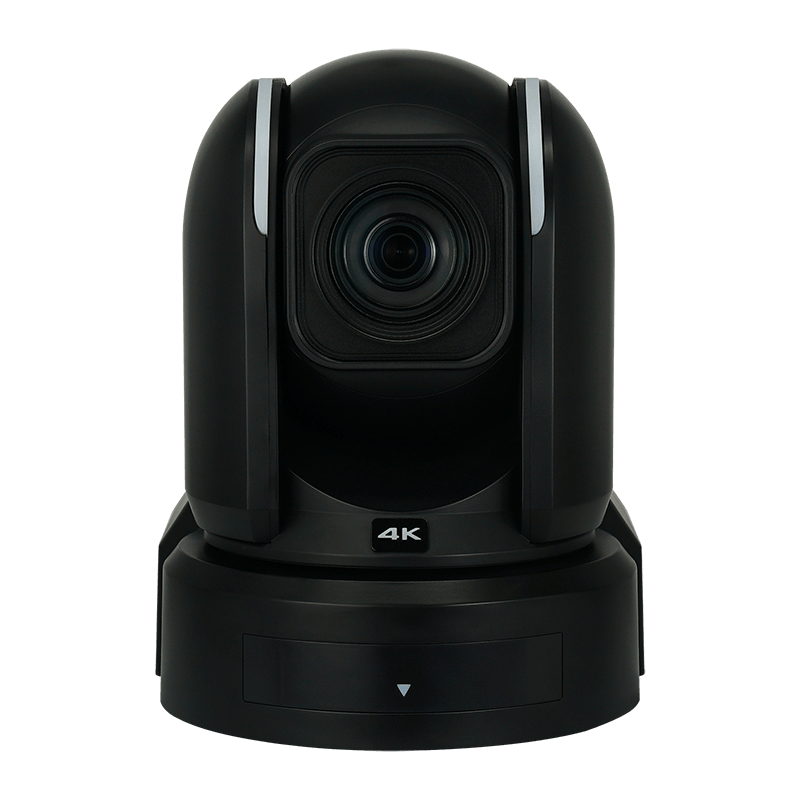

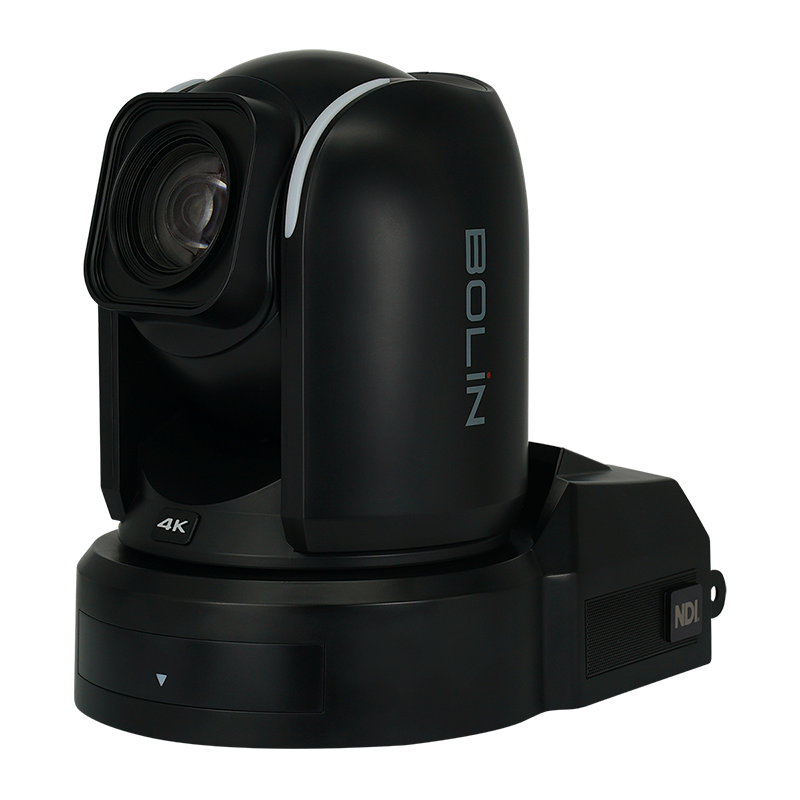

Outfitted with a premium Zeiss Vario-Sonnar T lens, the R9-418N balances a flexible 18x optical zoom range in 4K (extending to 24x in Full HD) with a fast, wide-angle F2.8 starting aperture. To maintain flawless imaging fidelity when zooming over long throw distances, the camera incorporates built-in mechanical optical image stabilization. This advanced hardware stabilizer dampens mechanical micro-movements, ensuring video remains stable on lighting trusses, temporary event staging, or ceiling mounts.

Global WAN Networking with NDI Embedded Bridge

Embracing next-generation IP video distribution, the R9-418N is natively NDI 6 ready and supports both uncompressed Full NDI High Bandwidth and high-efficiency NDI HX3 protocols. The standout feature is its integrated NDI Embedded Bridge engine. This internal software layer bypasses tedious local network configurations, enabling production crews to securely transmit and receive encrypted NDI streams across wide-area networks (WAN) over long distances. Video engineers can manage, preview, and switch global remote multi-venue productions effortlessly with plug-and-play simplicity.

Virtual Production Telemetry and Unified Workflows

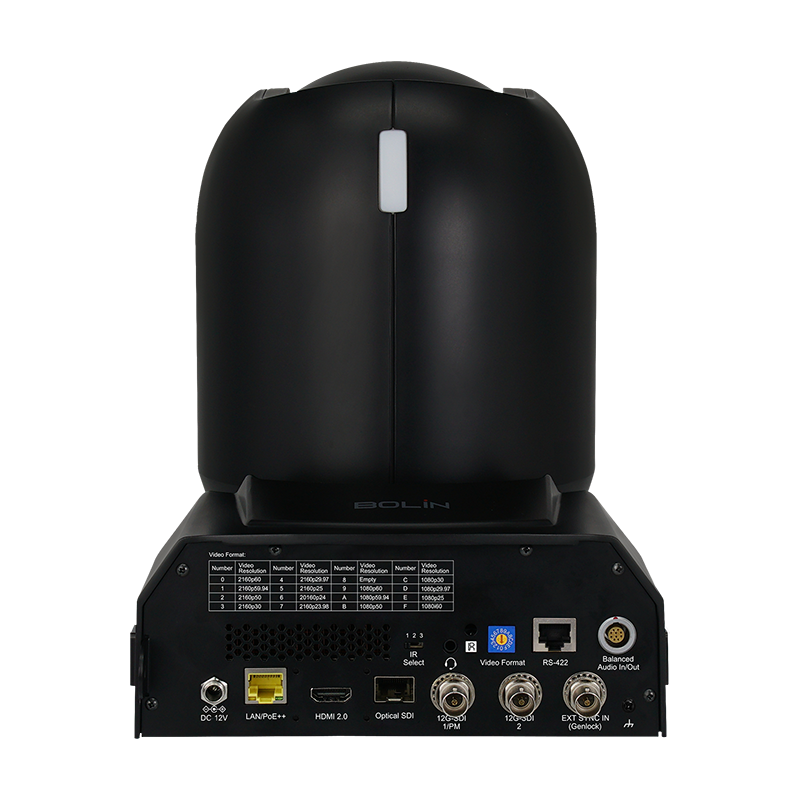

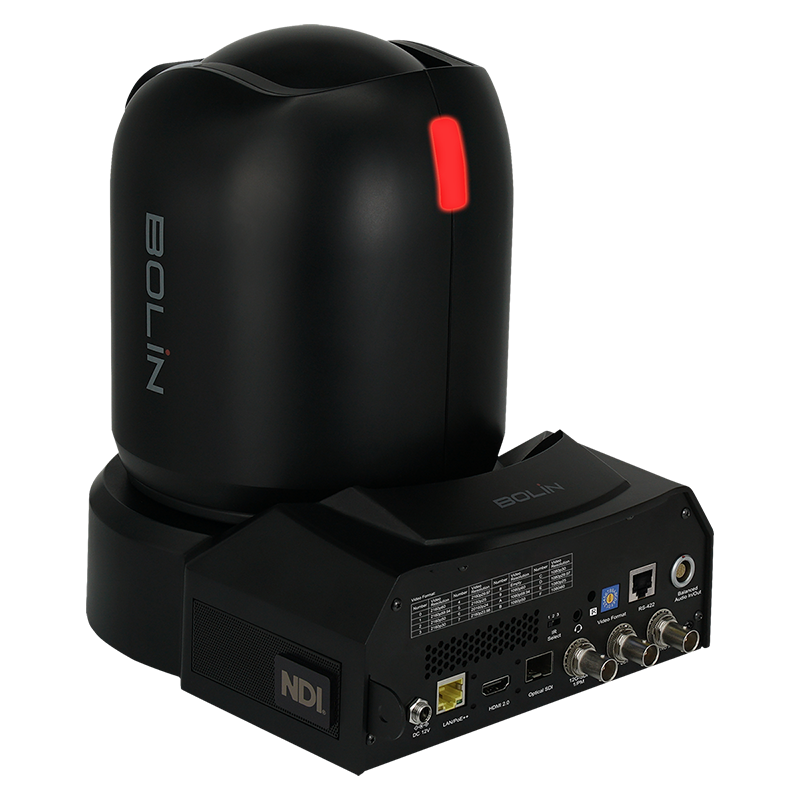

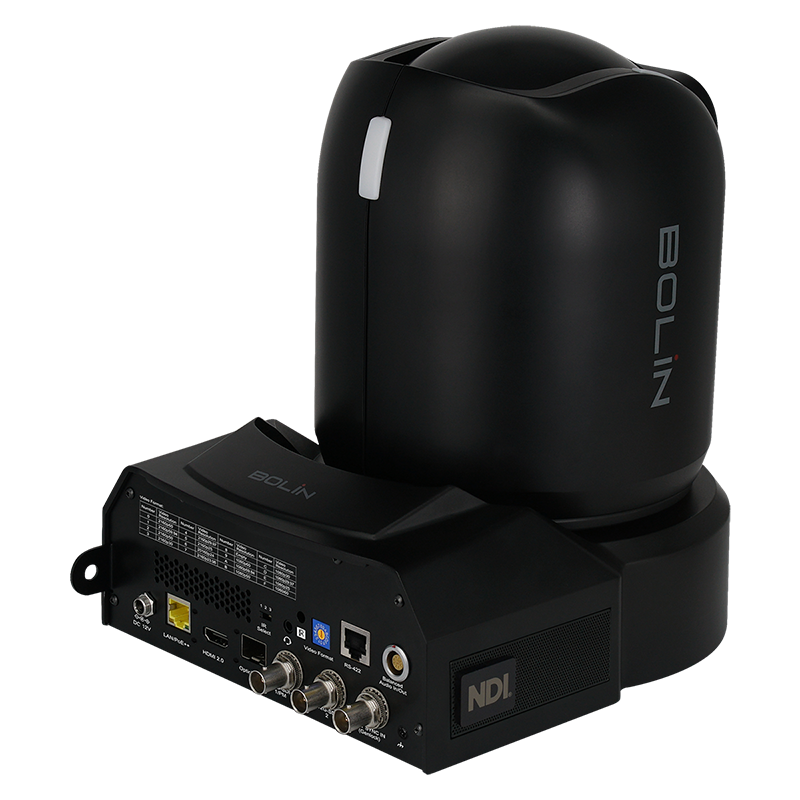

For augmented reality (AR) and virtual studio environments, the R9-418N natively implements the FreeD tracking data protocol. It constantly outputs precision pan, tilt, zoom, and positioning coordinates across 255 discrete mechanical steps, feeding the positional metadata directly into live AR/VR rendering engines. The rear panel supports a True Dual-Output system, including dual 6G-SDI, HDMI 2.0, and an SFP Optical SDI loop. Studio audio is supported via a secure 10-pin LEMO connector that converts down to professional balanced dual-channel XLR input/output blocks.
