Industrial All-Weather Engineering

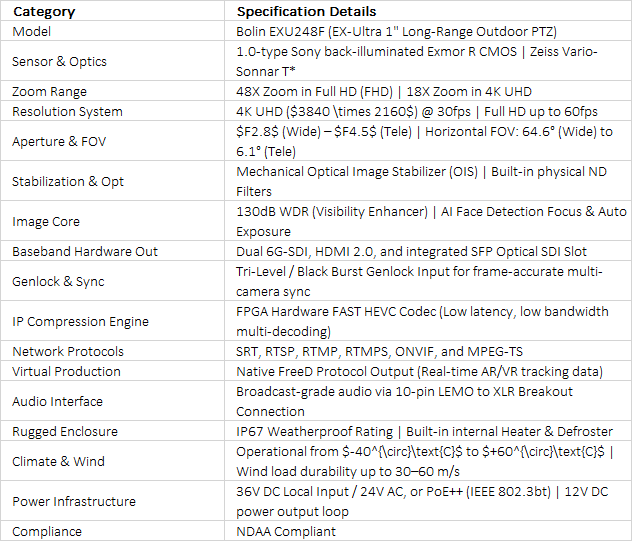

The Bolin EXU248F Outdoor Long-Range Professional PTZ Camera is a premium, ruggedized remote imaging solution engineered to deliver high-tier video production under severe environmental conditions. Encased in an IP67-rated weatherproof housing, this heavy-duty system is thoroughly sealed against dust ingress, high-pressure downpours, and freezing climate cycles. An internal mechanical heater and defroster network guarantee steady operation across an intense temperature threshold from –40 °C to 60 °C, while its rugged build survives high wind velocities without sacrificing frame stability. This makes the EXU248F the definitive hardware choice for long-distance stadium tracking, permanent coastal observation towers, open-air concert arenas, and remote weather monitoring stations.

Large-Format Cinematic Optics and Extreme Zoom

At the heart of the EXU248F is a large 1.0-type Sony back-illuminated Exmor R CMOS sensor paired with world-class Zeiss Vario-Sonnar T optics. By maximizing its active light-receiving surface area, the camera module yields true-to-life color rendering, an expansive wide dynamic range (130dB WDR), and highly polished low-light capture under minimal illumination. The variable lens system introduces an industry-leading 48x optical zoom range in Full HD workflows alongside 18x close-up coverage in native 4K UHD resolutions, extending smoothly from a wide 64.6° perspective to detailed tight shots. To maintain perfect focal depth balance from afar, integrated mechanical optical image stabilization actively mitigates hardware tremors, while built-in physical ND filters give operators complete exposure flexibility.

Immersive Virtual Production and Phase Sync

Built to seamlessly interface with modern broadcast automation layers, the EXU248F features native, out-of-the-box integration for the industry-standard FreeD data tracking protocol. This system intelligence calculates and broadcasts precise real-time axis telemetry across pan, tilt, zoom, and focus steps, empowering television stations to automate three-dimensional camera tracking for virtual sets and live augmented reality (AR/VR) graphics packages. For complex live multi-camera switched events, a dedicated BNC Genlock input provides external frame-accurate phase matching, allowing production teams to cut cleanly between camera sources without experiencing vertical sync slips or frame drops.

Quad-Output Infrastructure and FAST HEVC Streaming

The rear interface deck of the EXU248F provides extreme dual-output flexibility, simultaneously driving traditional baseband production equipment and advanced AV-over-IP networks. Engineers can route concurrent video streams via dual 6G-SDI ports, an HDMI 2.0 terminal, and a dedicated SFP Optical SDI slot designed for long-distance fiber transmission lines. The IP streaming pipeline is powered by an onboard FPGA hardware FAST HEVC codec, compressing high-quality network streams via SRT, RTSP, RTMP, and MPEG-TS protocols to protect local bandwidth footprints while preserving low-latency execution over standard 1Gb network architectures with PoE++ power injection. Encased in a portable body configuration featuring a built-in handle, the camera embeds dual balanced XLR broadcast audio lines using a waterproof 10-pin LEMO breakout, incorporates an internal character generator, is fully NDAA compliant, and supports complete remote configuration updates via IP.
