Weatherproof Nitrogen Protection and Marine Shielding

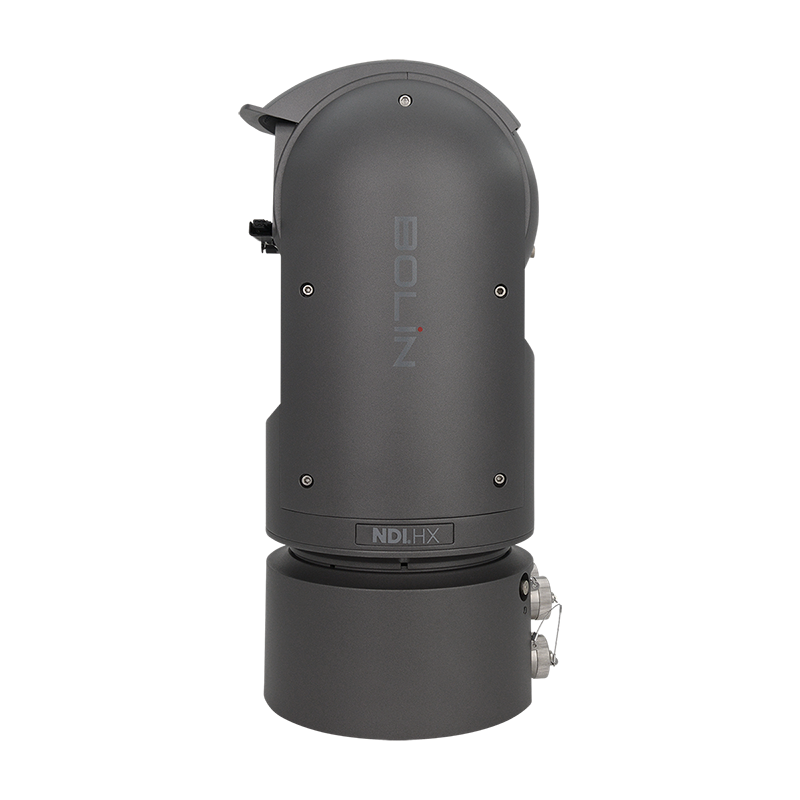

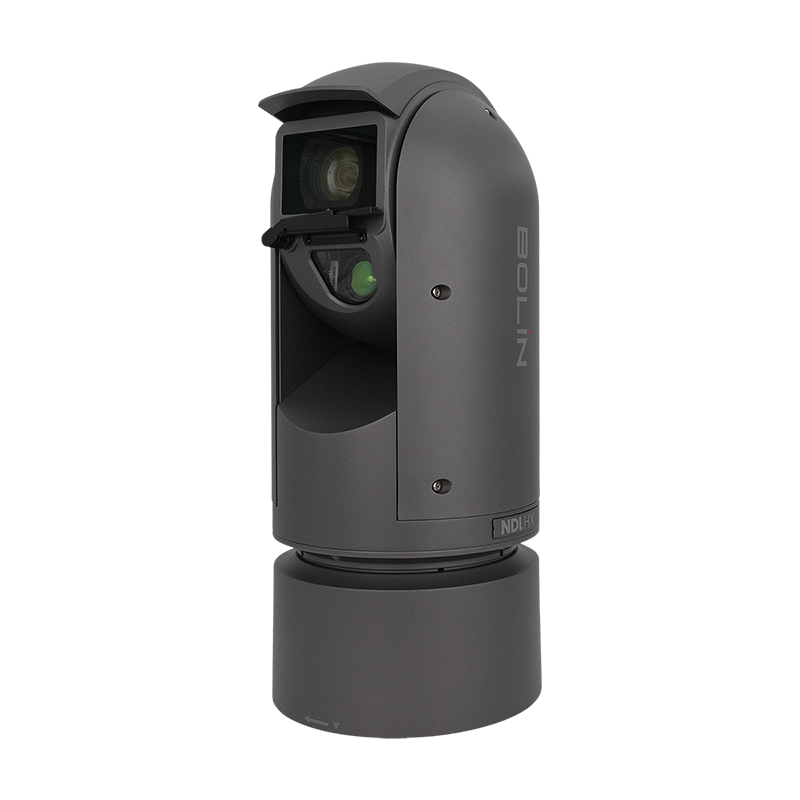

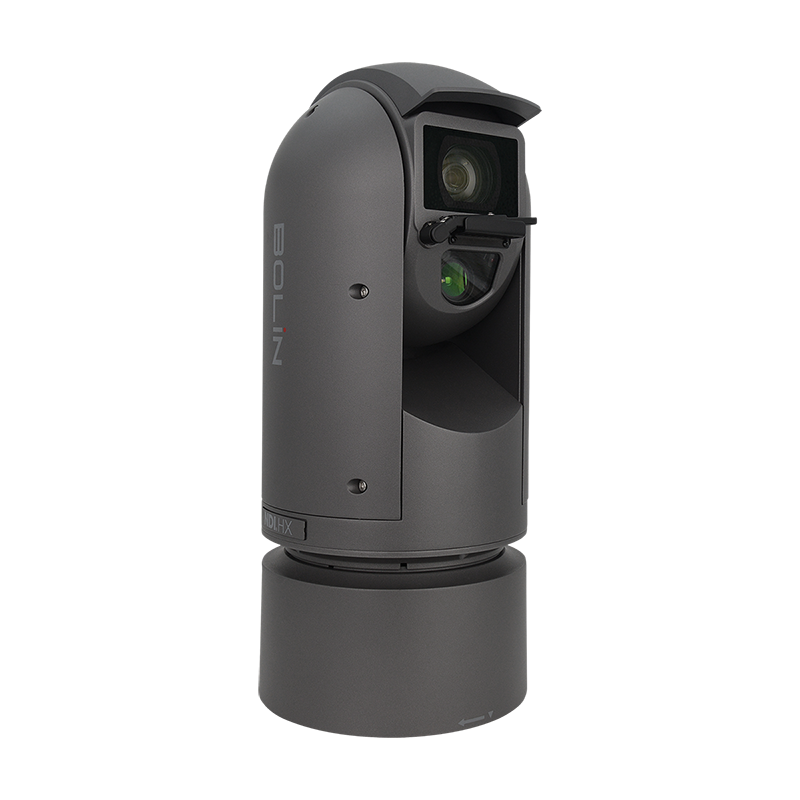

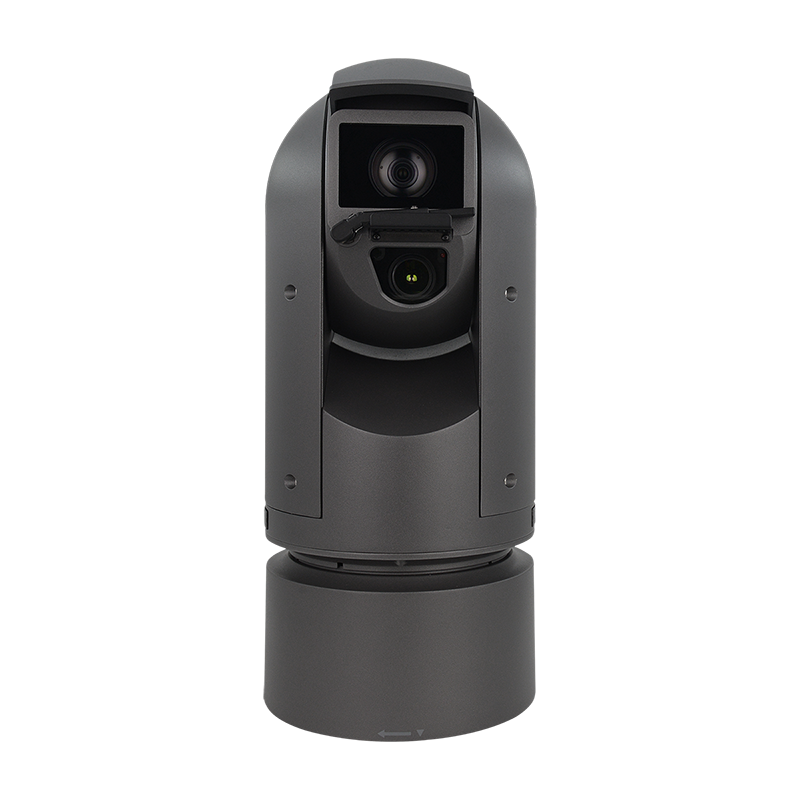

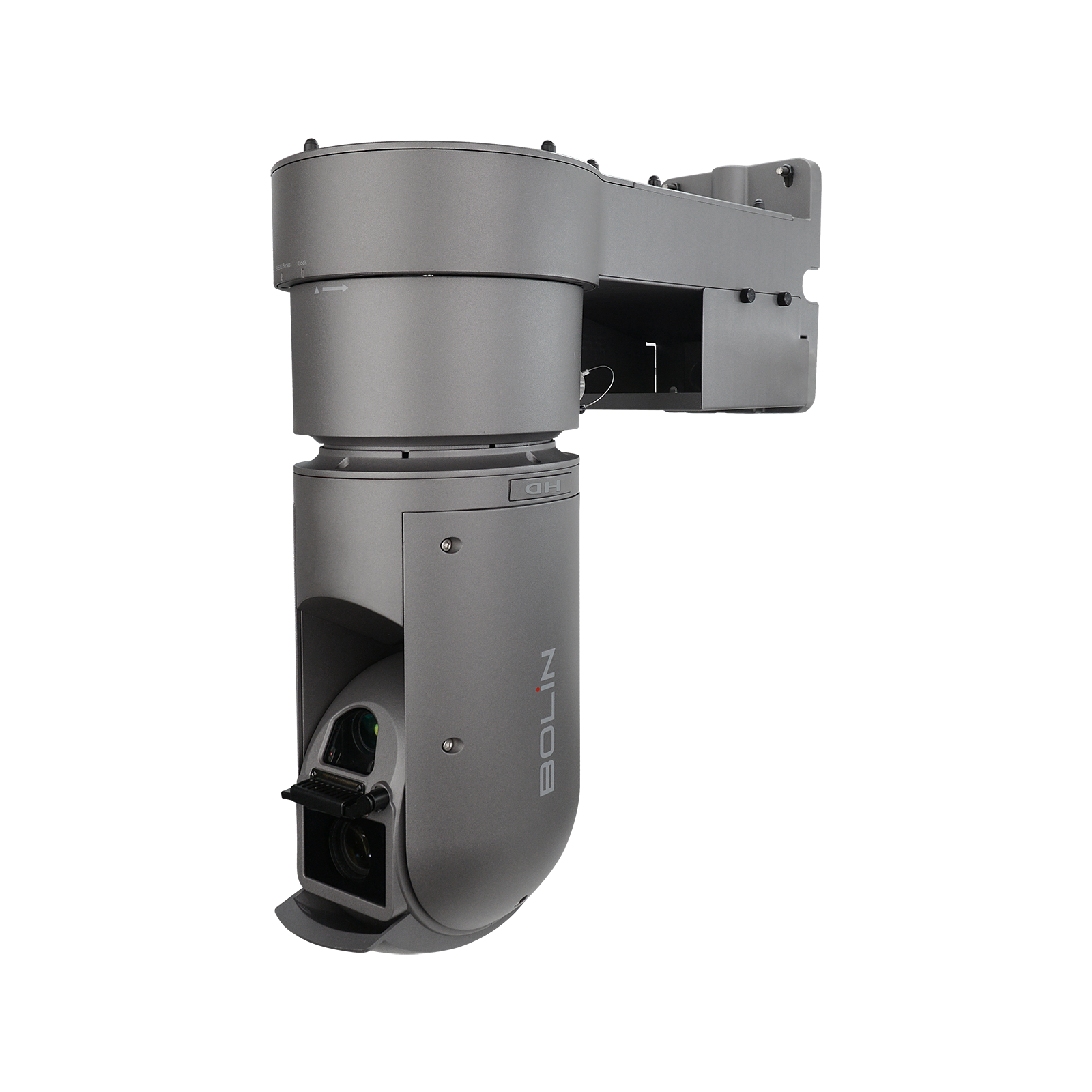

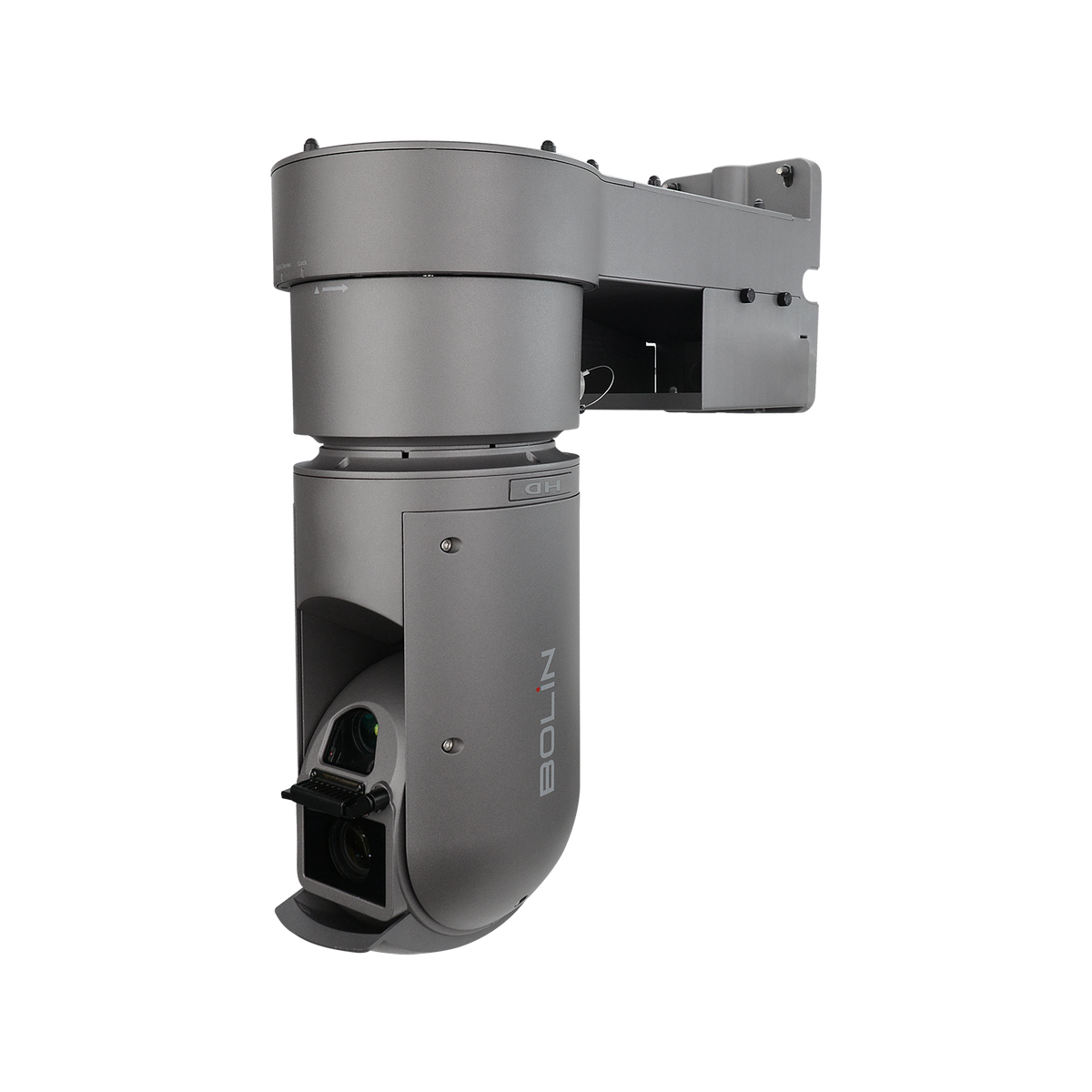

The Bolin EX1030NX Outdoor NDI HX3 PTZ Camera is a premium, high-speed remote tracking system engineered to deliver broadcast-quality Full HD video across harsh and unpredictable outdoor venues. Completely sealed within a ruggedized IP67 dustproof and waterproof casing, the camera features an interior chassis vacuum-filled with pressurized nitrogen gas to entirely eliminate internal moisture accumulation, lens fogging, and condensation cycles. Built to survive deployment along marine coastlines or industrial facilities, the external housing is treated with a specialized salt-corrosion-resistant C5-level protective coating. Assisted by a physical motorized rain wiper, an internal heating element, and an environmental temperature sensor, the EX1030NX guarantees steady, non-destructive operation under extreme wind loads up to 60 m/s across temperatures spanning –30 °C to 60 °C.

Sony STARVIS 2 Sensitivity and Intelligent Zoom Optics

At the core of this Gen 3 upgrade is a 1/2.8-type Sony STARVIS 2 progressive scan CMOS image sensor matched with a high-resolution 30x optical zoom lens and custom Sony ISP algorithms. This core configuration achieves exceptional night sensitivity, preserving sharp, noise-free Full HD color frames down to an ultra-dim 0.009 lx without suffering frame rate drops. Spanning wide tracking fields down to deep telephoto shots, the camera utilizes Super Image Stabilization Plus (Super/Super+) electronics to eliminate micro-vibrations and image blur caused by pole mounting shifts or sudden wind gusts. Production crews can also map precise optical parameters across variable lighting, utilizing wide dynamic range (WDR), Visibility Enhancer (VE) algorithms, and customized color matrix configurations.

Multi-Axis Aerial Tracking and Mechanical Fine-Tuning

Diverging from typical outdoor surveillance systems, the EX1030NX features an advanced pan-tilt architecture optimized for unrestricted spatial coverage. The system provides continuous 360-degree panning alongside an expansive 180-degree vertical tilt sweep (ranging from -45° to +135°) with smooth, fully proportional speeds. When paired with an upright mounting base installation, this design achieves a full 360-degree range of upper aerial sky viewing, allowing operators to track high-altitude objects seamlessly across open zones. To streamline physical deployment, an adjustable mechanical roll-axis framework provides up to 15 degrees of fine horizontal correction to rectify structural alignment errors on slanted mounts, while built-in Zero Deviation Positioning (ZDP) ensures automatic optical self-correction.

Certified NDI HX3 Ecosystem and Broadcast Routing

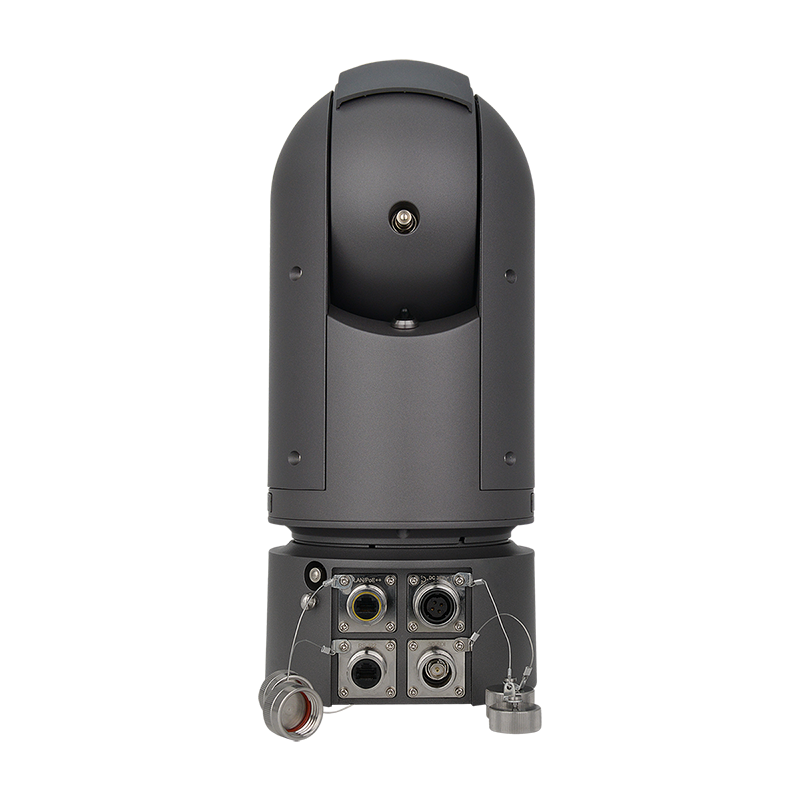

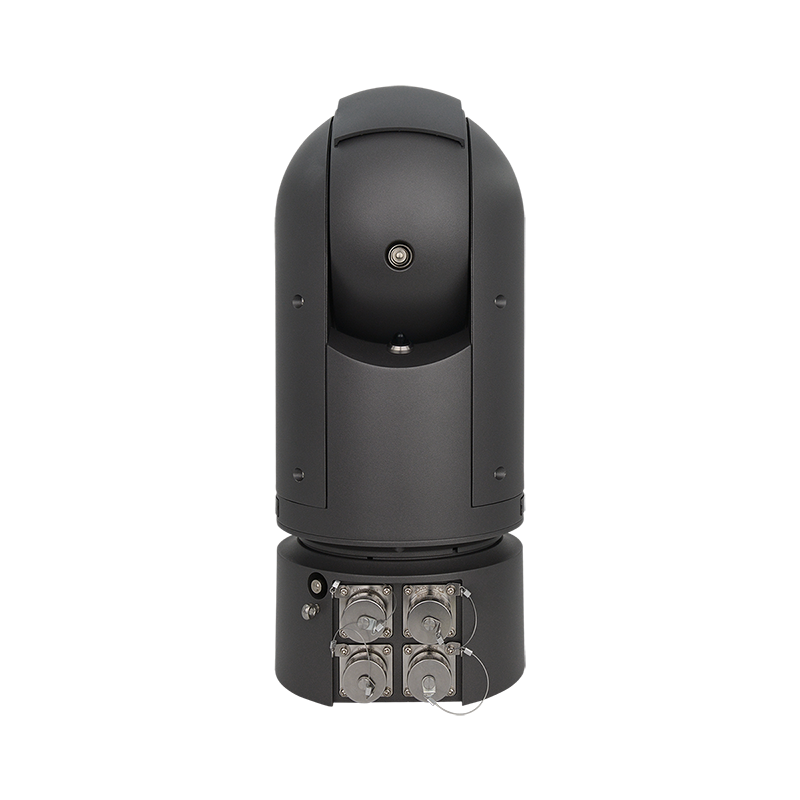

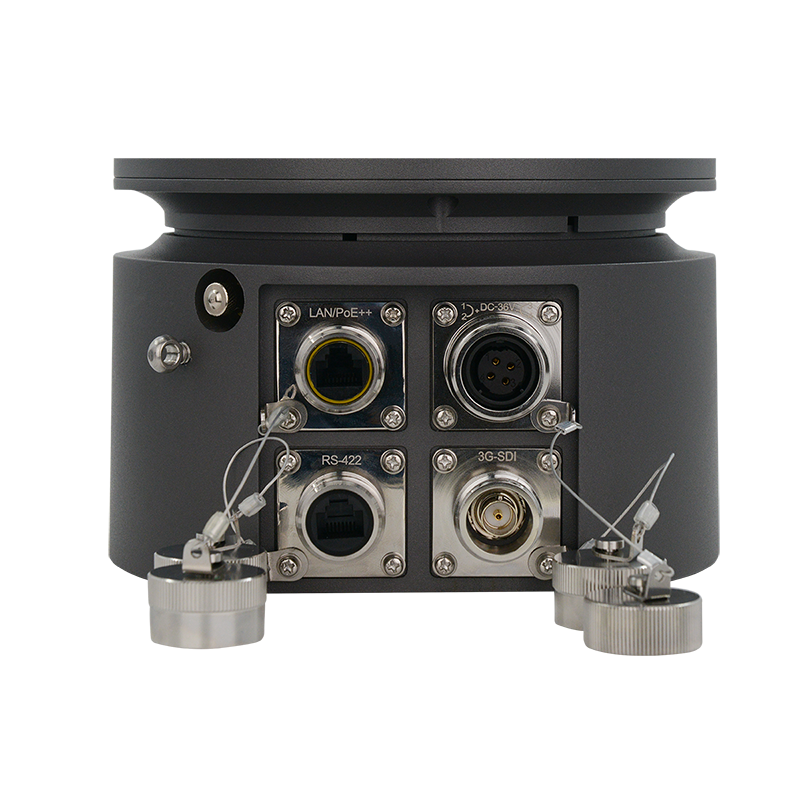

The waterproof back panel connection cluster facilitates true independent dual-output performance, allowing production teams to route a clean baseband line over a standard 3G-SDI port while concurrently broadcasting a low-latency NDI HX3 stream set to a separate configuration profile. Its network streaming architecture seamlessly supports NDI 6 readiness, NDI Embedded Bridge capabilities for decentralized WAN operations, and standard SRT, RTSP, and RTMP distribution. For advanced virtual studio integration, the system natively incorporates the FreeD protocol to deliver real-time spatial tracking telemetry—including exact pan, tilt, zoom, and focus steps—directly to augmented reality (AR) and virtual reality (VR) graphics pipelines. Fully NDAA compliant, the camera supports efficient single-cable drops via high-power PoE++ lines and integrates an expanded 255-step VISCA-over-IP and ONVIF control matrix for ultra-fine tracking accuracy.
