Key Features
Key Features
• One-Cable HDBaseT (Power, Video, Control)
• One-Click AI Auto-Tracking
• 20x Optical Zoom (Sony Sensor)
• Smooth S-Curve Camera Motion
• Smart Subject Tracking
• Multi Output (HDBaseT, HDMI, SDI)
• SRT & dvCloud Streaming Ready
Features & Specifications
Product Overview +
The Datavideo PTC-145T is a professional 1080p60 PTZ camera that combines high-reach optics with the streamlined efficiency of HDBaseT technology. Designed for large-scale permanent installations in houses of worship, education, and corporate environments, the PTC-145T allows for uncompressed video transmission over long distances. With its 20x optical zoom, it provides the flexibility to be mounted at the back of a hall while still delivering crisp, intimate close-ups of the presenter.
Seamless HDBaseT Integration
The core advantage of the PTC-145T is its HDBaseT connectivity. This allows a single Ethernet cable to replace multiple specialized wires, carrying power (PoE), video, and control signals simultaneously. This drastically reduces installation costs and complexity, especially in venues where running multiple cables to a ceiling-mounted camera is difficult.
Intelligent AI Tracking & Smooth Motion
Equipped with an advanced PID algorithm and S-Shaped Speed Curve technology, the PTC-145T moves with human-like grace. It avoids the "jerky" starts and stops common in entry-level PTZ cameras. The AI tracking is highly customizable, allowing users to designate a specific person to follow and choose between full-body, half-body, or close-up framing using the included RMC-1AT IR remote.
Professional Broadcast Capabilities
Beyond its tracking prowess, the PTC-145T is a powerhouse for streaming. It supports dual-stream encoding and is compliant with ONVIF Profile S, ensuring it fits perfectly into existing network video systems. With support for SRT, RTSP, and RTMPS, you can stream directly to platforms like YouTube and Facebook or utilize Datavideo's dvCloud for a reliable "First Mile" connection over the internet.

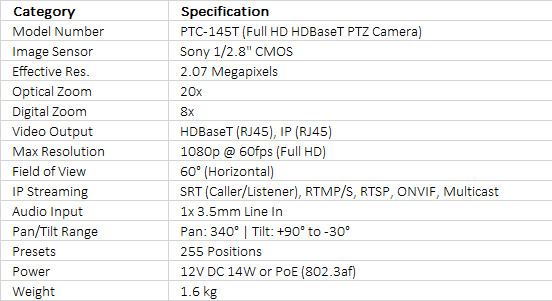

Technical Specifications +
technical specifications
