High-Speed Tracking Mechanics and Precision Sony Sensor

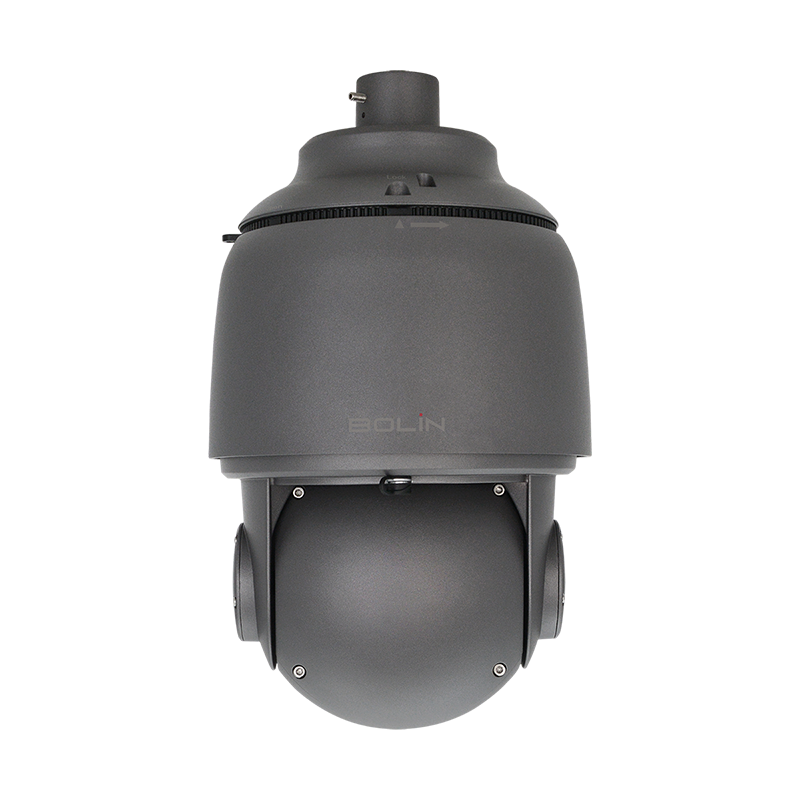

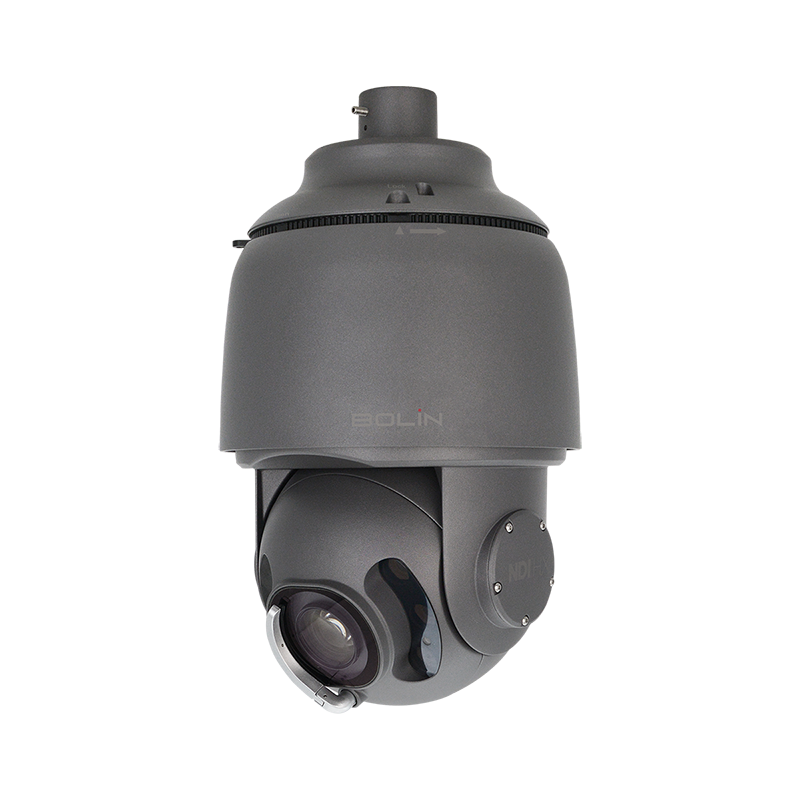

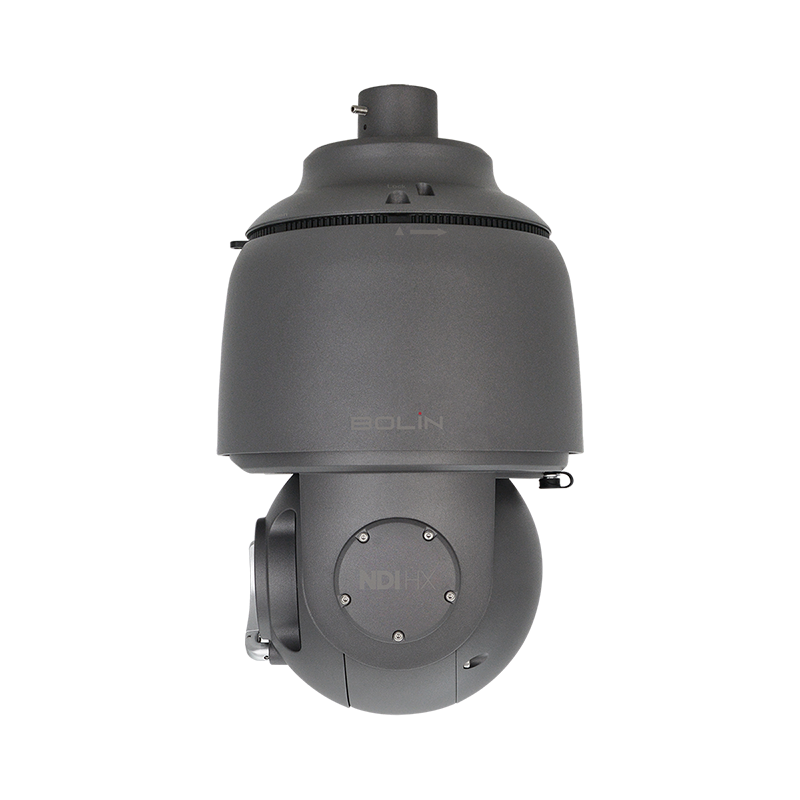

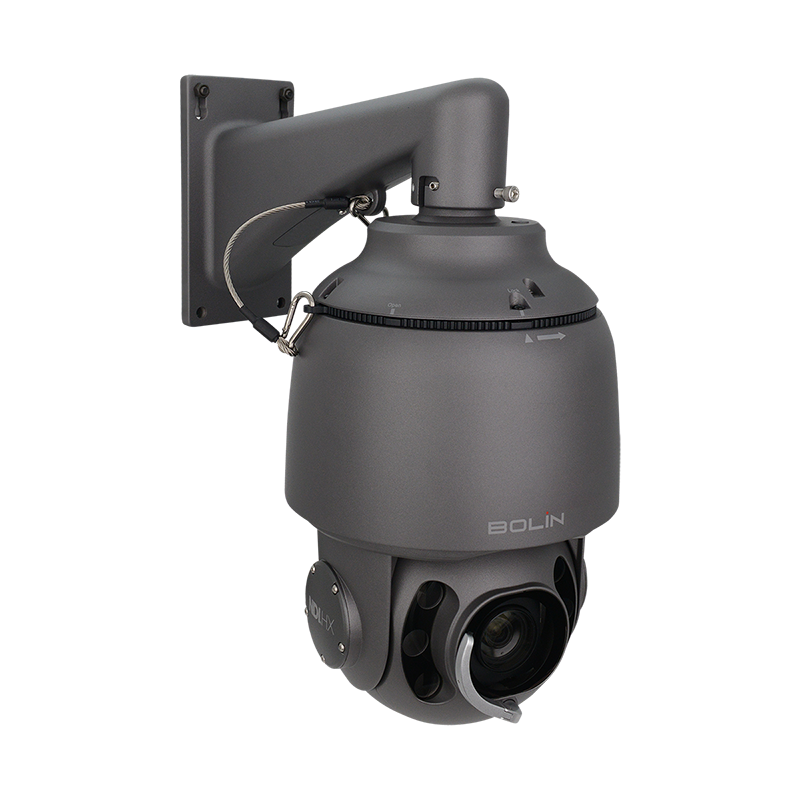

The Bolin SD530NX Outdoor NDI HX3 PTZ Camera is a high-performance, generation-three remote tracking solution tailored for fast-paced sports broadcasting, professional outdoor events, and high-stakes situational awareness. Anchored by a 1/2.8-type premium Sony STARVIS 2 progressive scan CMOS image sensor, the camera integrates an ultra-sensitive pixel matrix with a high-definition 30x optical zoom lens and custom Sony ISP technologies. This configuration yields stunning Full HD clarity and superior night vision down to 0.009 lx in color mode, preventing frame rate drops or resolution loss in poorly illuminated environments. To track high-speed athletes or rapid tactical movements, the drive core delivers continuous 360-degree high-speed panning with quick responsiveness and pixel-accurate stops, ensuring fluid control across wide-area fields.

Super Stabilization Plus and Smart Meteorological Protection

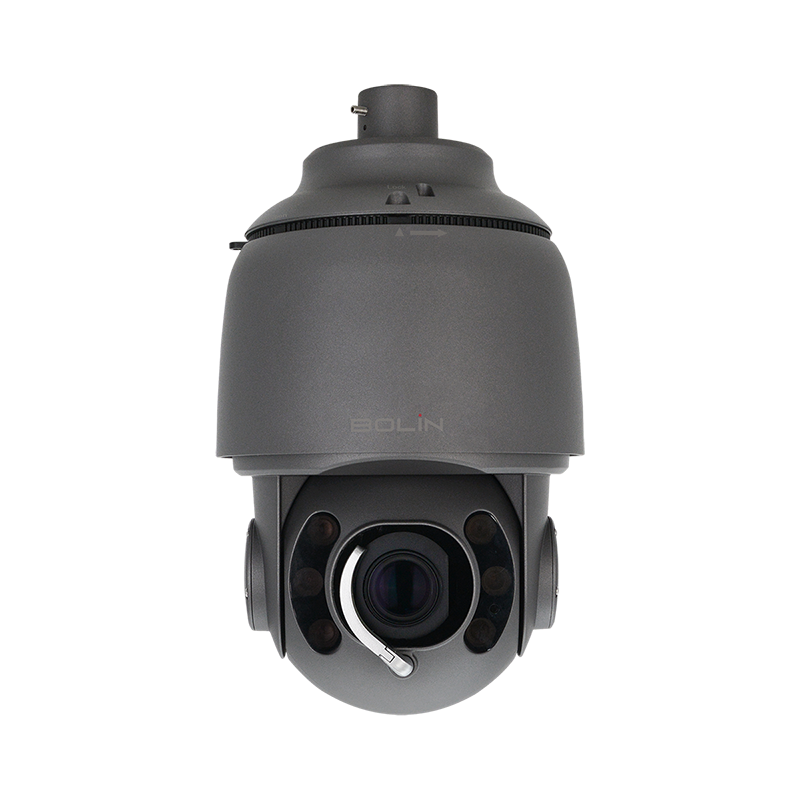

Engineered for harsh architectural placements, the SD530NX features a specialized wind-resilient housing optimized for elevated poles, lighting towers, and rooftops. When subjected to sudden wind gusts or platform tremors, its Super Image Stabilization Plus (Super/Super+) firmware actively counteracts micro-vibrations to maintain rock-solid, blur-free imagery even at maximum zoom extensions. The physical assembly is sealed against elements inside a dustproof, waterproof, and chemical-resistant IP67-rated casing treated with marine-grade C5 corrosion resistance. Equipped with a built-in reinforced rain wiper blade and automatic heating elements, the lens remains clear of rain, snow, mist, and ice, sustaining operational performance across temperatures from –30 °C to 60 °C.

Flexible Roll-Axis Alignment and Virtual Studio Telemetry

To streamline installation on uneven or slanted architectural pillars, the SD530NX introduces a mechanical roll-axis adjustment feature. Installers can correct leveling errors by up to 15 degrees right from the housing, removing the need for custom wedge plates or structural adjustments. For augmented reality and virtual television workflows, the camera includes native integration for the standard FreeD tracking protocol. The internal processor streams real-time, low-latency spatial tracking coordinate metrics—including precise pan, tilt, zoom, and focus data—directly to AR/VR software engines, enabling physical camera movements to blend seamlessly with digital backdrops.

True Hybrid Dual-Output Architecture and IP Ecosystems

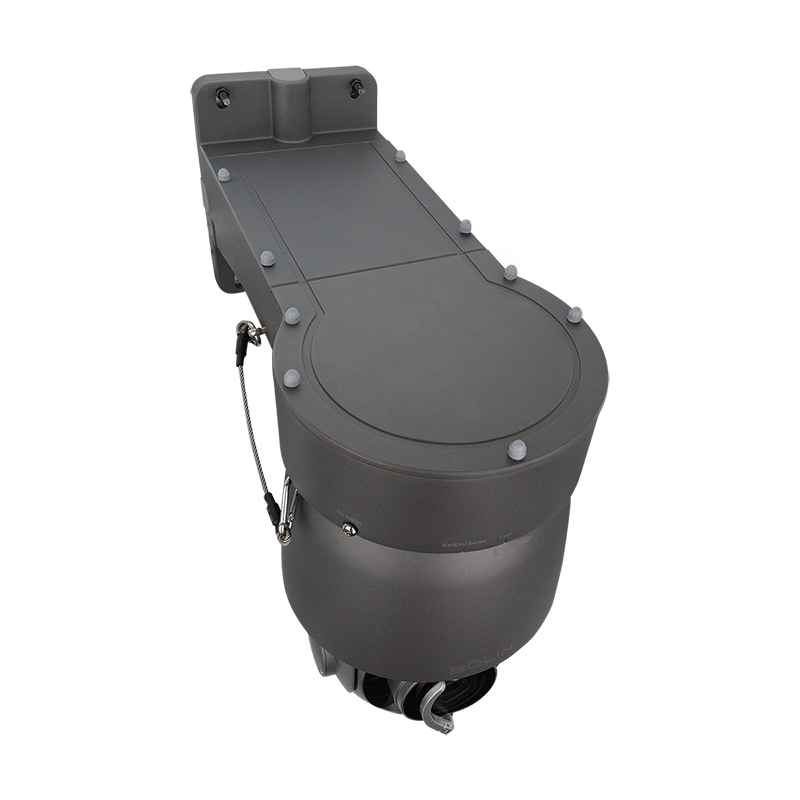

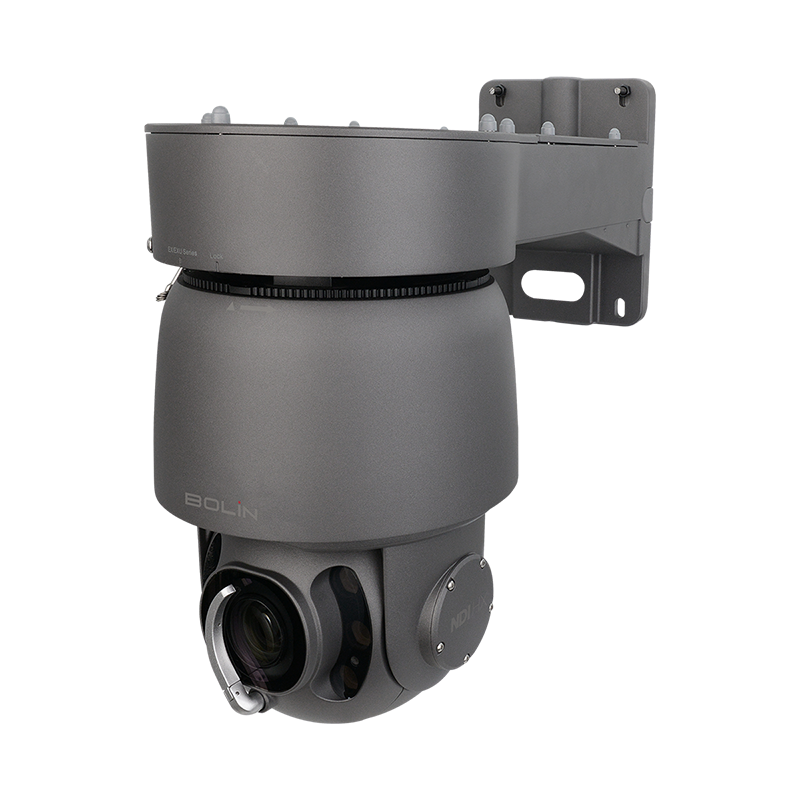

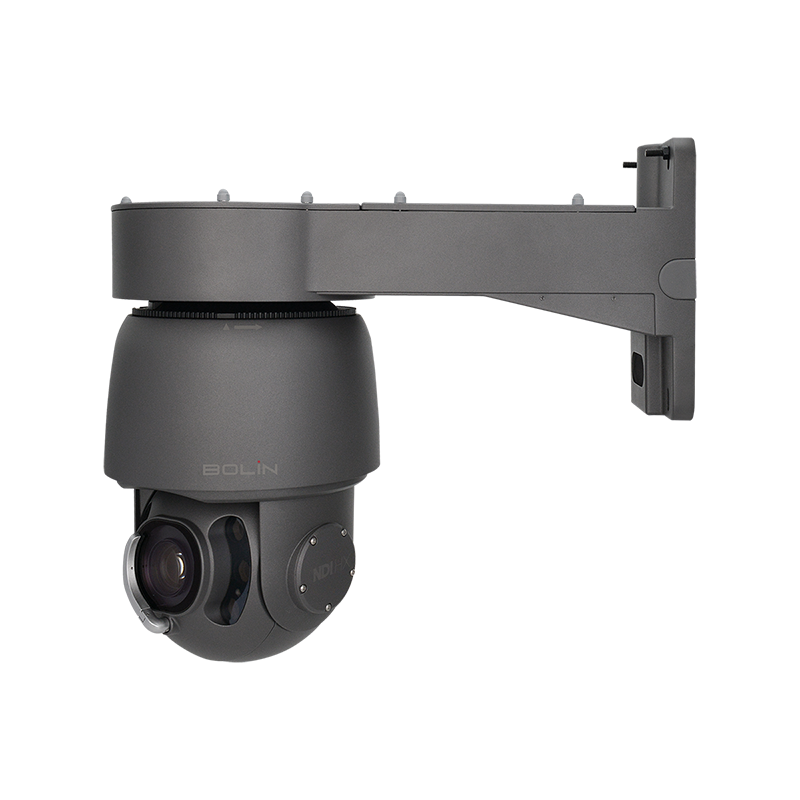

The weather-tight rear panel interface cluster delivers independent dual-output performance, allowing production crews to deploy a crisp local hardware baseband feed over 3G-SDI while concurrently broadcasting a low-latency NDI HX3 network stream configured to separate resolution formats. The advanced IP networking engine supports NDI 6 readiness, NDI Embedded Bridge technology for decentralized remote WAN distribution, and standard SRT, RTSP, and RTMP protocols. Highly granular system orchestration is sustained via an expanded 255-step VISCA-over-IP control matrix for exceptionally fine adjustments. Fully NDAA compliant, the camera supports easy single-cable drop installation using high-power PoE++ lines, includes an on-screen character generator, and provides optional tail cable adapters for streamlined wall or ceiling mounting layout adjustments.
