C5-Level Marine Shielding and Meteorological Resiliency

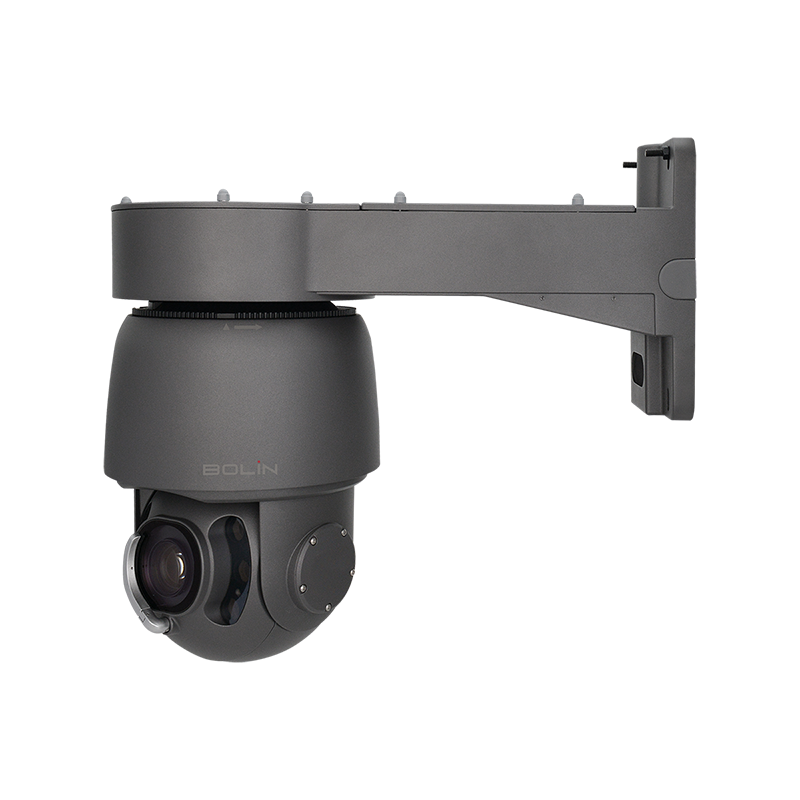

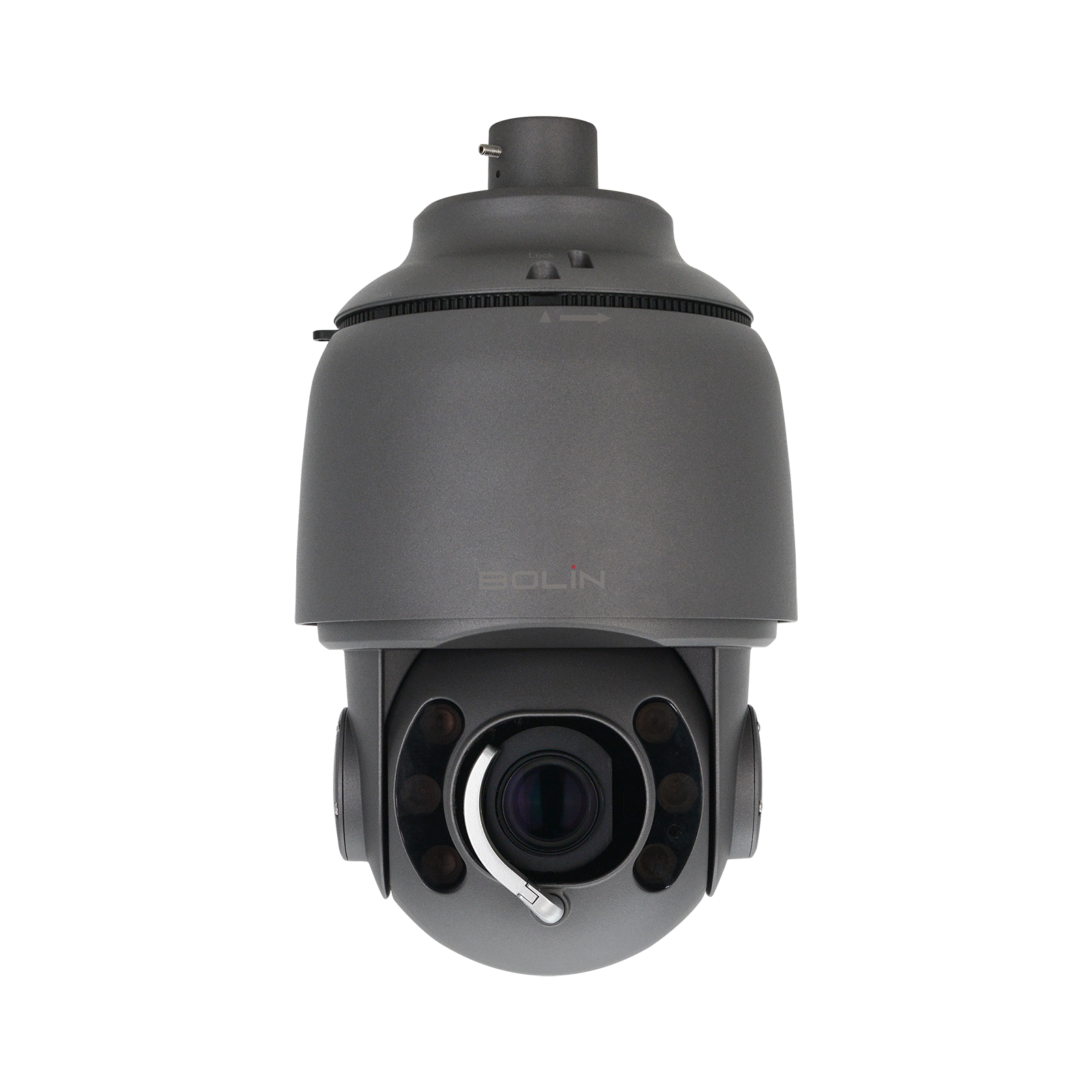

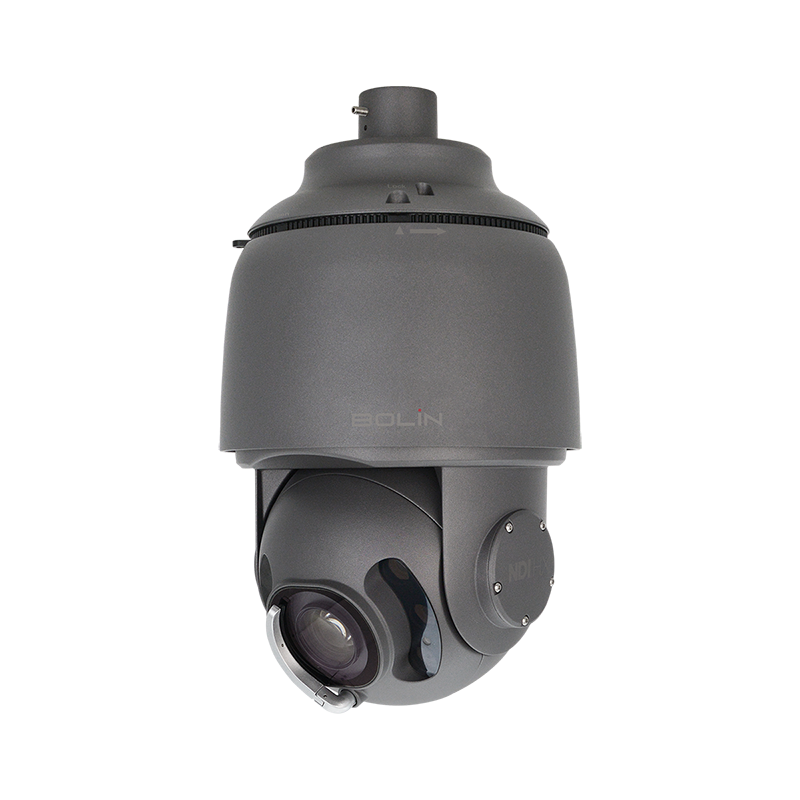

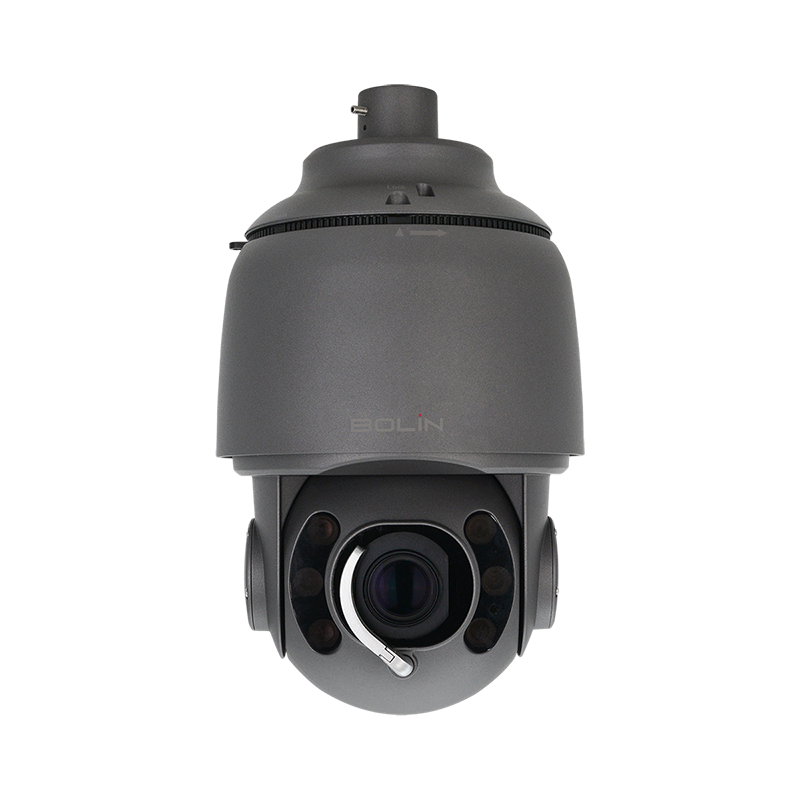

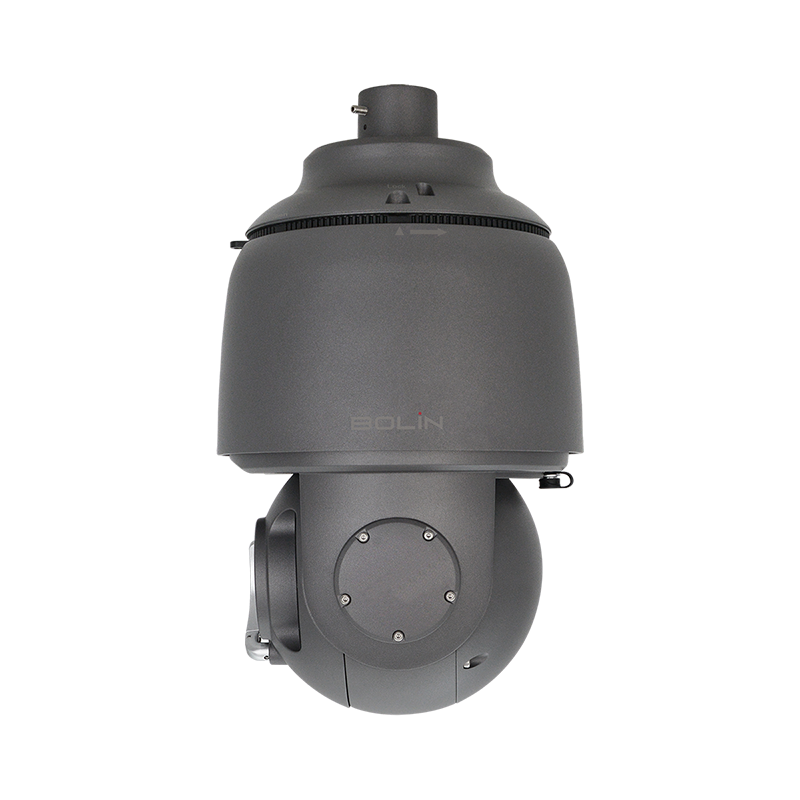

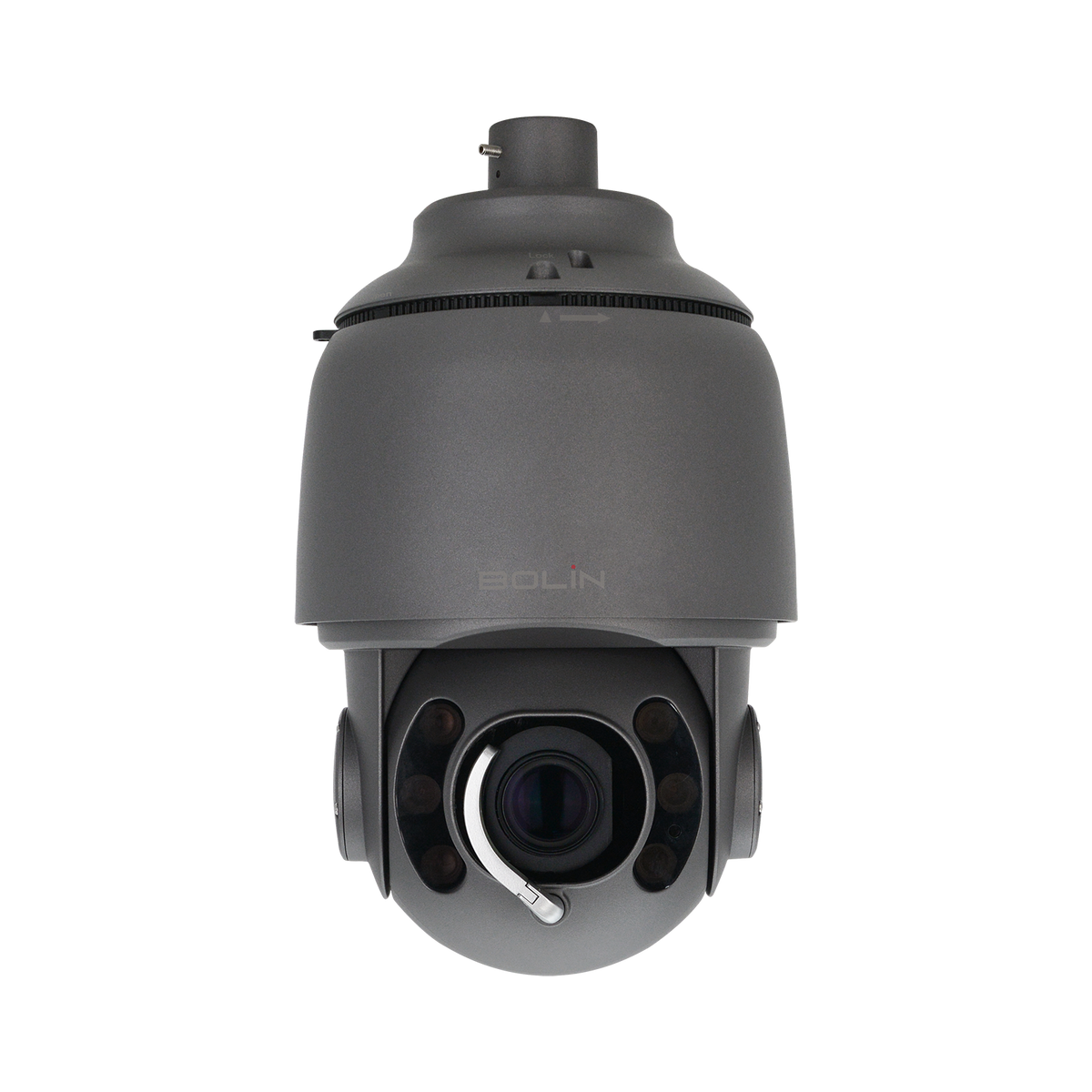

The Bolin SD530H (Gen 3) Dual Output SDI IP Outdoor PTZ Camera is a high-speed, professional-tier remote imaging solution engineered to deliver broadcast-quality video across demanding outdoor environments. Completely sealed within a rugged, IP67-rated dustproof and waterproof housing, the camera features an advanced salt-corrosion-resistant C5-level protective coating that ensures structural survivability in marine coastlines and heavy industrial settings. To ensure uninterrupted performance through changing weather cycles, the chassis incorporates a reinforced physical rain wiper blade alongside an automated internal heating element that actively prevents ice and condensation buildup. Rated for non-destructive, steady operation under wind loads up to 30 m/s across extreme temperatures ranging from –30 °C to 60 °C, the SD530H provides reliable 24/7 tracking performance.

Low-Light STARVIS 2 Core and Precision Stabilization

At the optical core of the Gen 3 upgrade is a 1/2.8-type Sony STARVIS 2 progressive scan CMOS sensor, integrated with a high-resolution 30x optical zoom lens and an advanced Sony ISP processing platform. This hardware architecture delivers spectacular light sensitivity, preserving color-accurate and low-noise Full HD images down to an ultra-dim 0.009 lx before shifting to infrared tracking. Spanning from a wide 64° horizontal perspective to crisp telephoto frames, the system leverages Super Image Stabilization Plus (Super/Super+) electronics to eliminate image blur and micro-vibrations caused by structural pole shaking or high-wind environments. Operators can also deploy fine-grained image parameters, including 255-step color gain/hue adjustments, wide dynamic range (WDR), and a Visibility Enhancer circuit to navigate harsh backlight conditions.

Mechanical Horizontal Tuning and High-Speed Tracking

Diverging from conventional exterior cameras, the SD530H includes a specialized mechanical roll-axis adjustment structure that provides up to 15 degrees of fine horizontal rotation. This mechanism allows technicians to correct physical leveling imperfections or align creative framing angles on slanted mounting surfaces during field deployment. Controlled by an expanded 255-step precise VISCA command layer, the robotic tracking platform executes continuous 360-degree panning and ultra-responsive, high-speed movements. This high-velocity agility allows operators to track fast-moving subjects with fluid accuracy, making the camera an ideal hardware asset for tracking live sports action, outdoor concert staging, and massive perimeter surveillance zones.

Broadcast-Standard Baseband and Network Connectivity

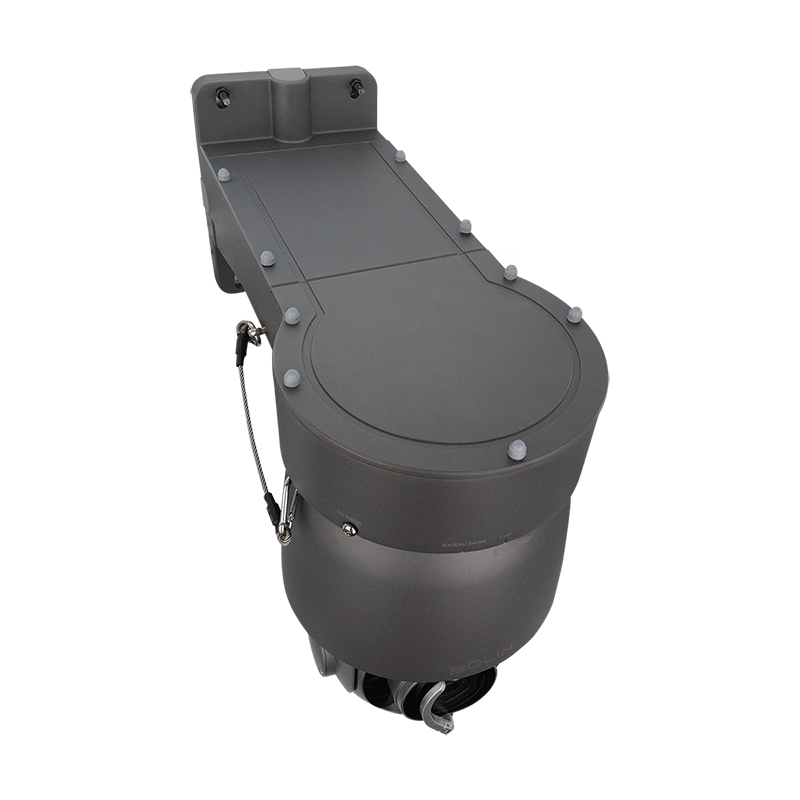

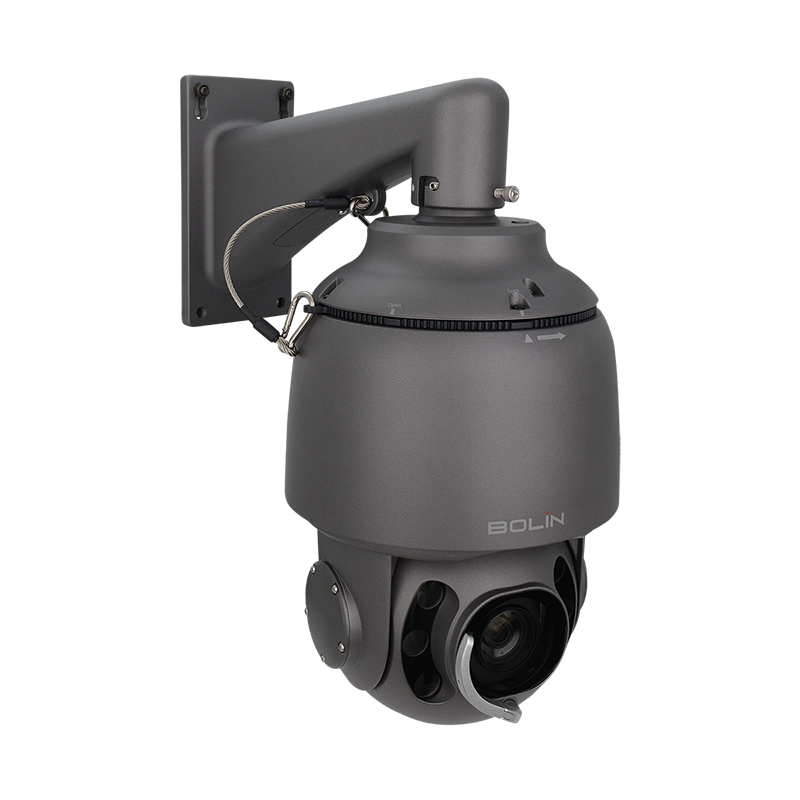

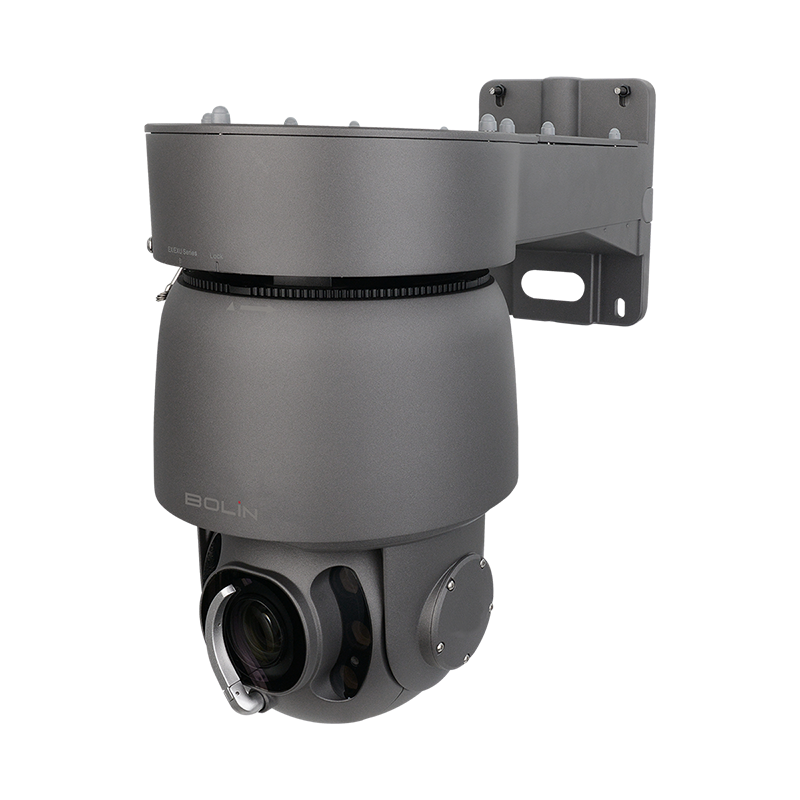

The interface layout of the SD530H is optimized for hybrid production grids, facilitating simultaneous, true dual-output functionality across independent video formats. Local broadcast setups pull clean, broadcast-standard hardware video via a standard 3G-SDI port supporting SMPTE 425-A (3Gb/s) and SMPTE352 metadata, while an independent network stream delivers low-bandwidth H.264/H.265 video profiles over standard 1Gb IP connections. Its network processor natively integrates the FreeD protocol, broadcasting real-time multi-axis coordinate telemetry to automate virtual studios, augmented reality (AR) environments, and sports analytics layers. Fully NDAA compliant, the camera supports flexible installation drops via high-power PoE++ lines, features an integrated character generator, and offers optional waterproof tail cable adapter configurations to suit tailored wall or ceiling architectural mounts.
