High-Sensitivity Sony STARVIS 2 Core and Precision Zoom

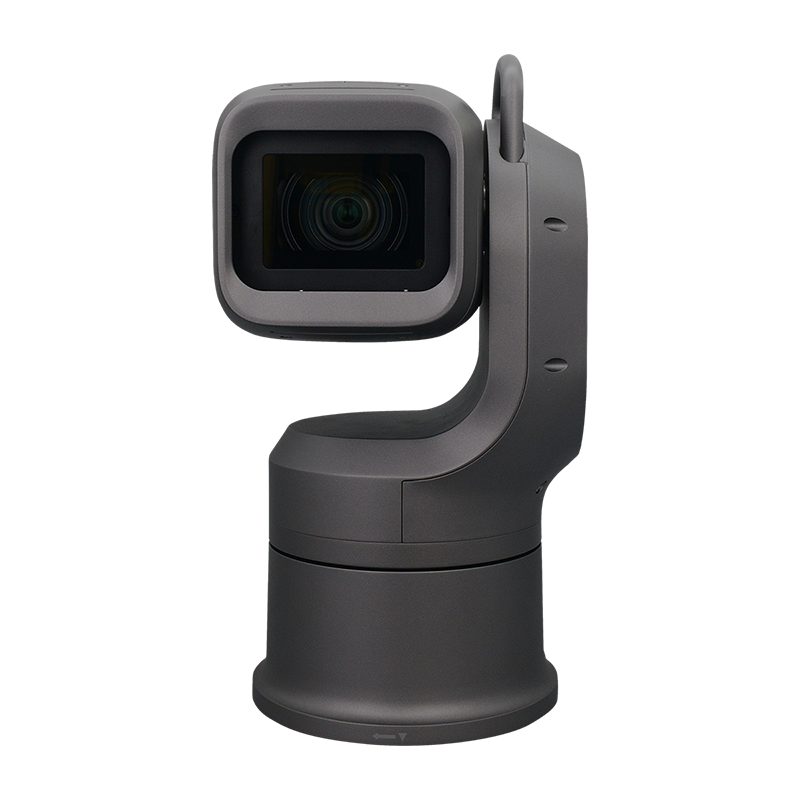

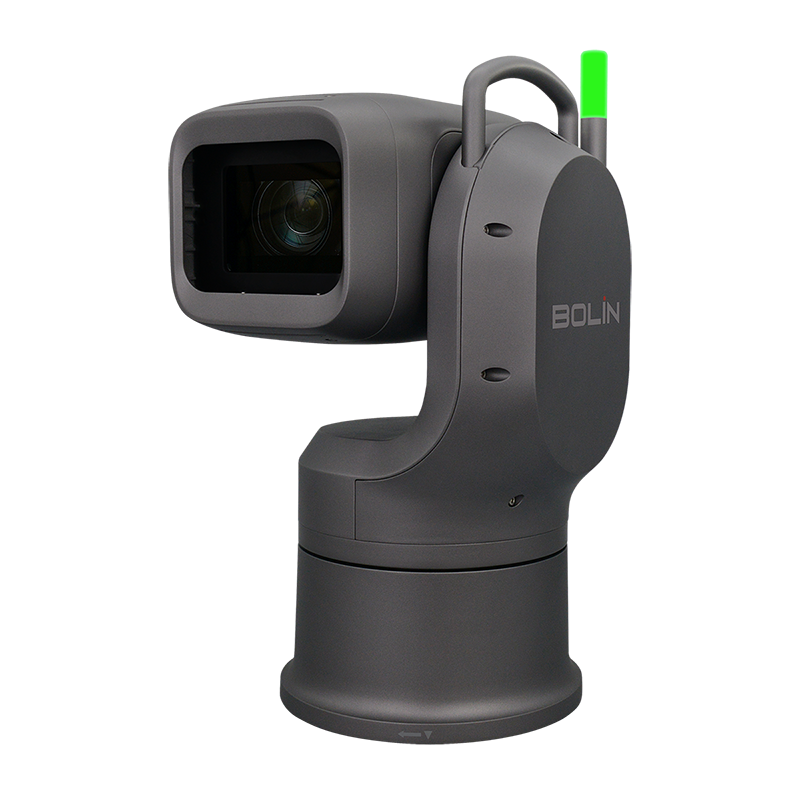

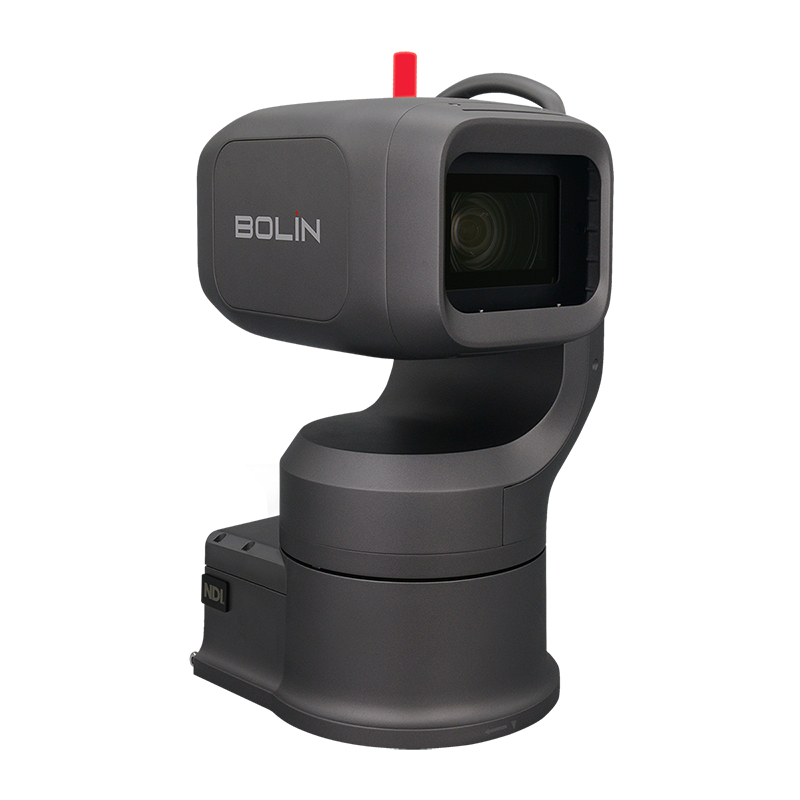

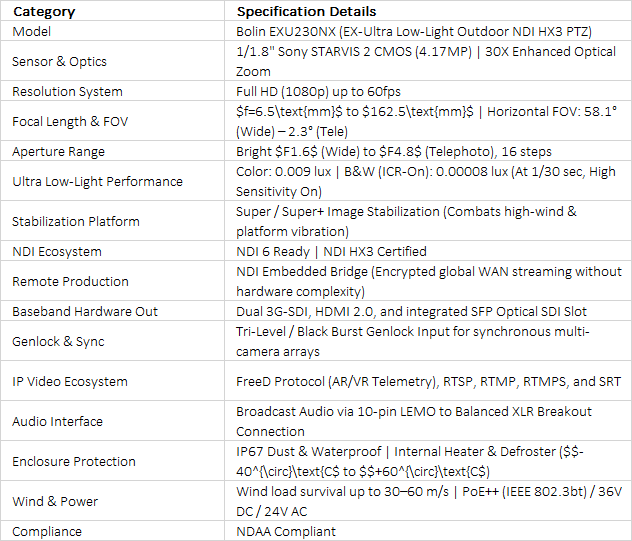

The Bolin EXU230NX Outdoor NDI HX3 PTZ Camera represents a high-tier remote tracking solution engineered to deliver broadcast-quality Full HD video under the most challenging environmental conditions. Built around a highly advanced 1/1.8-type Sony STARVIS 2 CMOS image sensor, the camera integrates a 4.17-megapixel capture array with an 8M ultra-high-resolution lens assembly and a custom Sony ISP. This combination yields an exceptional minimum illumination threshold down to 0.009 lx in color mode, ensuring clean, noise-free, high-definition visuals across dark or poorly lit outdoor locations. Equipped with a powerful 30x enhanced optical zoom lens, the system preserves an overwhelming sense of resolution and edge-to-edge clarity when transitioning from broad 58.1° horizontal perspectives to long-range telephoto close-ups.

Structural Resiliency and Super Image Stabilization Plus

Designed to withstand punishing physical locations, the EXU230NX features an IP67-rated weatherproof housing that provides complete immunity against dust penetration, rain, snow, and direct solar exposure. To handle high-altitude mounting structures, weather decks, and observation points, the internal processing engine utilizes Super Image Stabilization Plus (Super/Super+) technology. This system actively tracks and counteracts micro-vibrations or structural shaking induced by heavy wind buffeting or traffic, securing fluid and stable frames at maximum zoom extension. Complete with integrated structural heaters and defrosters, the camera guarantees flawless 24/7 mechanical movement across an extensive temperature envelope spanning from –40 °C to 60 °C while maintaining wind load durability up to 60 m/s.

Decentralized Global Workflows via NDI Embedded Bridge

As a cutting-edge cornerstone for decentralized remote broadcasting, the EXU230NX features native NDI Embedded Bridge technology. This internal gateway removes geographical constraints by enabling the camera to securely send and receive encrypted NDI audio, video, and bi-directional control telemetry directly across Wide Area Networks (WAN). Production teams can orchestrate complex, multi-venue remote operations and large-scale outdoor broadcasts without needing external encoders or complex field server configurations. Operating fluidly with certified NDI HX3, NDI High Bandwidth, and NDI 6 readiness, the camera fits perfectly into low-latency IP production grids.

Hybrid Baseband Architecture and Broadcast Alignment

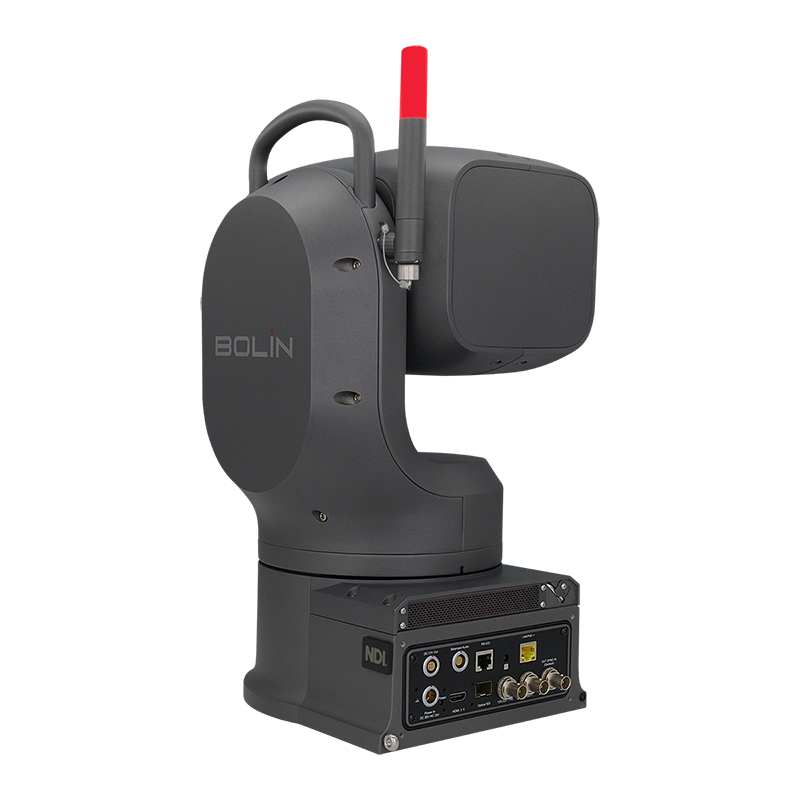

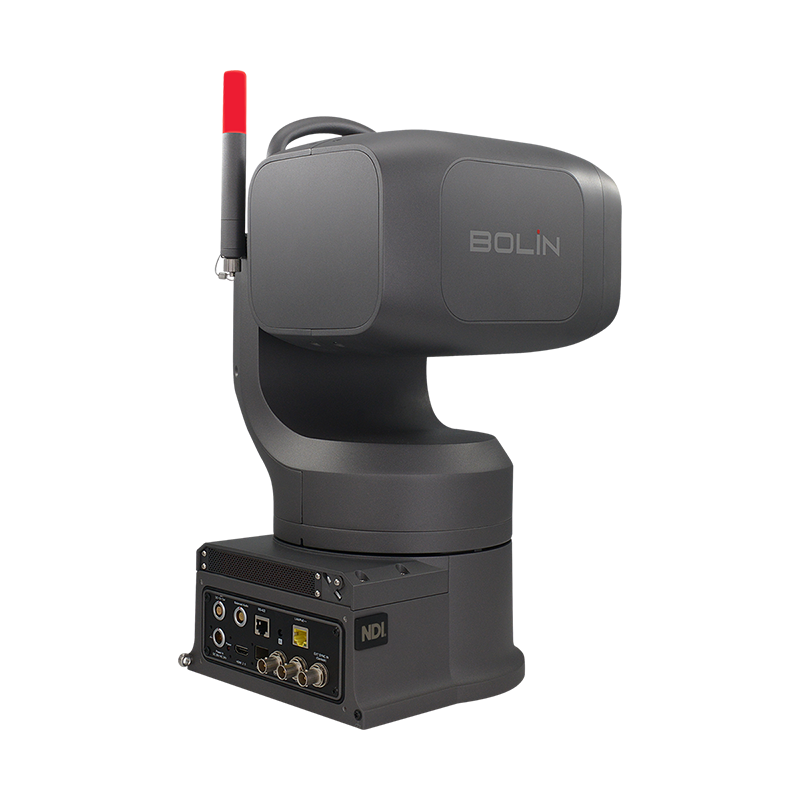

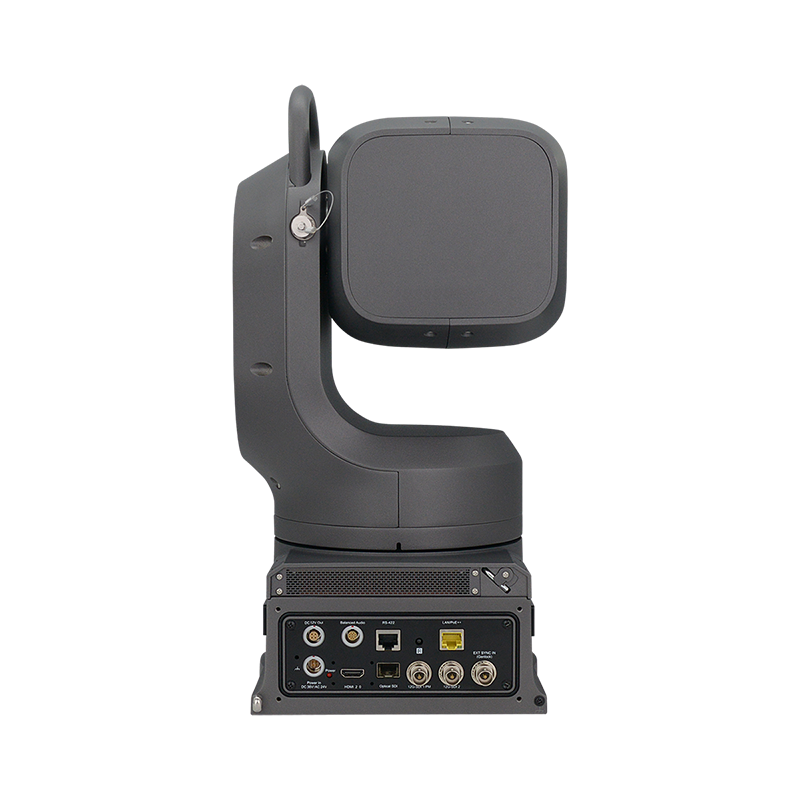

The back panel of the EXU230NX houses an ultra-versatile interface suite capable of true independent dual-output performance, delivering baseband lines and network streams simultaneously. Physical broadcast pipelines include dual 3G-SDI ports, a native HDMI 2.0 connector, and an SFP Optical SDI slot optimized for long-haul glass fiber transport, running concurrently alongside NDI, SRT, RTSP, and RTMP network layers. For multi-camera environments, a dedicated BNC Genlock reference input enforces precise phase timing synchronization to protect against switching artifacts or signal drops. Professional balanced XLR broadcast audio connectivity is cleanly managed via a waterproof 10-pin LEMO breakout connection. Fully NDAA compliant, the camera supports single-cable drops via high-power PoE++ lines, features an integrated on-screen character generator, and includes a physical tally light.
