Vizrt TriCaster Vizion angled front view

TriCaster Vizion 16 SDI I/O Live Production System

Vizrt Production Switcher

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

44 simultaneous external live inputs
Up to 16 configurable 12G/3G/HD-SDI I/O
44 NDI/IP video inputs
Up to 8 HD or 2 UHD video mix outputs
8 M/E buses and 4 TB internal SSD
LivePanel Pro with optional Vizion AI/R

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Maximum Vizion SDI and IP Flexibility

TriCaster Vizion 16 SDI is the highest-I/O configuration in the current Vizion hardware family. It combines up to sixteen configurable SDI ports with the full 44-input Vizion production engine for large studios, broadcasters, sports venues and complex multi-camera productions.

Enterprise Hybrid Production Architecture

Vizion integrates 44 NDI/IP inputs with configurable SDI connectivity, eight M/E buses and up to eight HD or two UHD mix outputs. The 16-I/O configuration supports six 12G-capable connections for UHD production requirements.

Built for Mission-Critical Production

The 2RU chassis includes redundant 550W power supplies, 10GbE, 2.5GbE and 1GbE networking, 4 TB internal SSD storage, LivePanel Pro and Viz Flowics graphics integration, with optional Vizion AI/R for AI-powered keying and AR graphics.

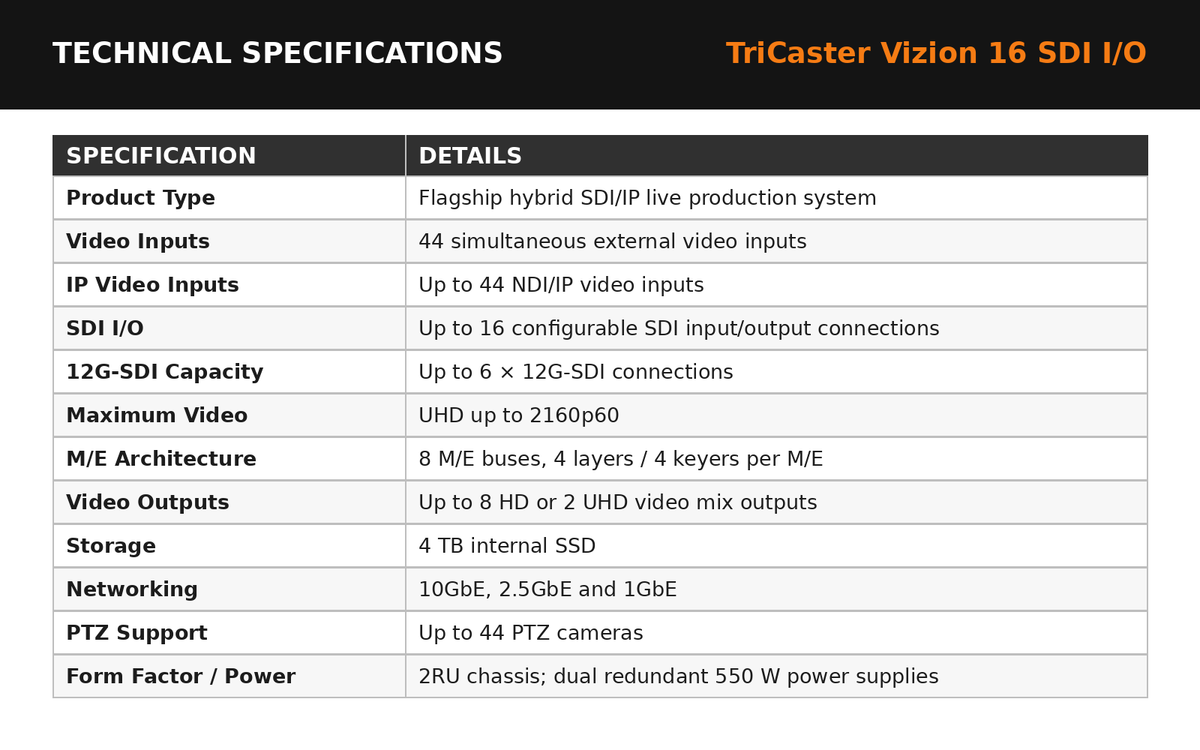

Technical Specifications +
