Overview

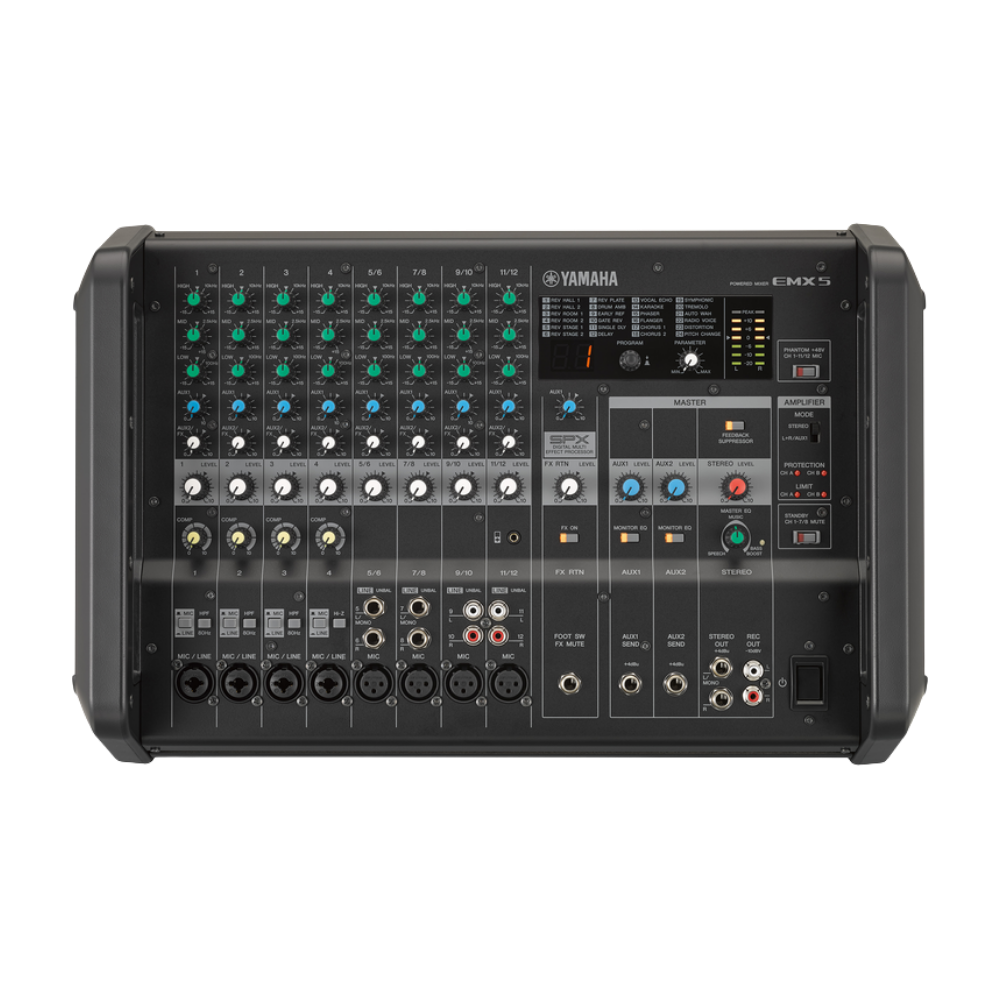

The Yamaha EMX5 is a professional powered analog mixing console that combines a high-quality mixer with a powerful built-in Class-D power amplifier, providing an all-in-one solution for portable sound reinforcement. Designed for live performances, houses of worship, schools, conference venues, rental companies, and event production, the EMX5 delivers exceptional audio quality through Yamaha's renowned D-PRE Class-A microphone preamps, integrated SPX digital effects, and advanced speaker processing. Its compact design and high-output amplifier make it an ideal choice for professional PA applications without requiring external amplification.

Performance / Features

The EMX5 offers 12 input channels comprising 8 mono microphone/line inputs and 4 stereo line inputs, allowing flexible connection of microphones, instruments, playback devices, and external audio sources. Yamaha's D-PRE Class-A microphone preamps provide transparent, natural sound with excellent headroom and low noise. The built-in Class-D amplifier delivers up to 2 × 630 W at 4 Ω, while the integrated SPX digital effects processor offers 24 professional-quality effects for live sound enhancement. Additional features including one-knob compressors, feedback suppressor, master EQ, and speaker processing ensure consistent, reliable audio performance in demanding environments.

Applications / Integration

The Yamaha EMX5 is ideal for live bands, churches, schools, conference facilities, community halls, rental companies, portable PA systems, and corporate events. It integrates seamlessly with passive loudspeakers, stage monitors, microphones, wireless systems, musical instruments, playback devices, and recording equipment. By combining mixing, amplification, and DSP processing in a single chassis, the EMX5 offers a streamlined and reliable solution for professional sound reinforcement.
