Overview

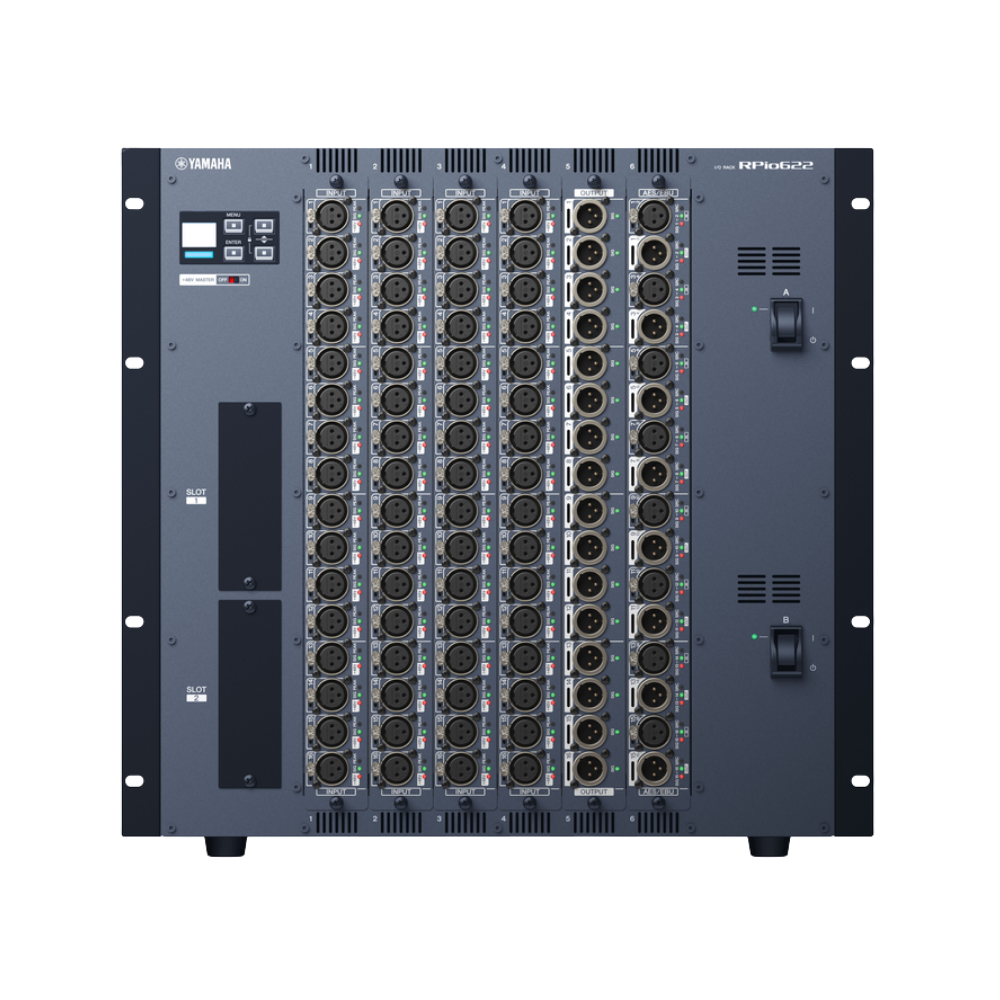

The Yamaha RPio622 is a high-performance modular I/O rack designed specifically for Yamaha RIVAGE PM digital mixing systems. Built around Yamaha's ultra-low-latency TWINLANe audio network, the RPio622 provides exceptional flexibility by allowing users to configure analog and digital inputs and outputs according to system requirements. Featuring six RY card slots, dual HY expansion slots, and redundant power supplies, the RPio622 is engineered for demanding broadcast, touring, theatre, and live production environments where maximum reliability and scalability are essential.

Performance / Features

The RPio622 supports fully modular system expansion through six RY card slots that accommodate a wide range of analog and digital I/O cards. Two HY card slots provide high-capacity audio transport and control, with HY Slot 1 supporting up to 256 input/output channels and HY Slot 2 supporting up to 128 channels. Two additional mini-YGDAI slots enable compatibility with numerous professional audio formats. The built-in dual redundant power supplies maximize operational reliability for mission-critical productions, while TWINLANe networking ensures ultra-low latency operation across RIVAGE PM systems.

Applications / Integration

The Yamaha RPio622 is ideal for large-scale touring productions, broadcast facilities, theatres, concert venues, houses of worship, and major live events using Yamaha RIVAGE PM digital consoles. It integrates seamlessly with RIVAGE PM systems through Yamaha's TWINLANe network and supports flexible expansion using Yamaha RY cards, HY interface cards, and mini-YGDAI cards, allowing engineers to build customized I/O infrastructures for virtually any professional audio application.
