Overview

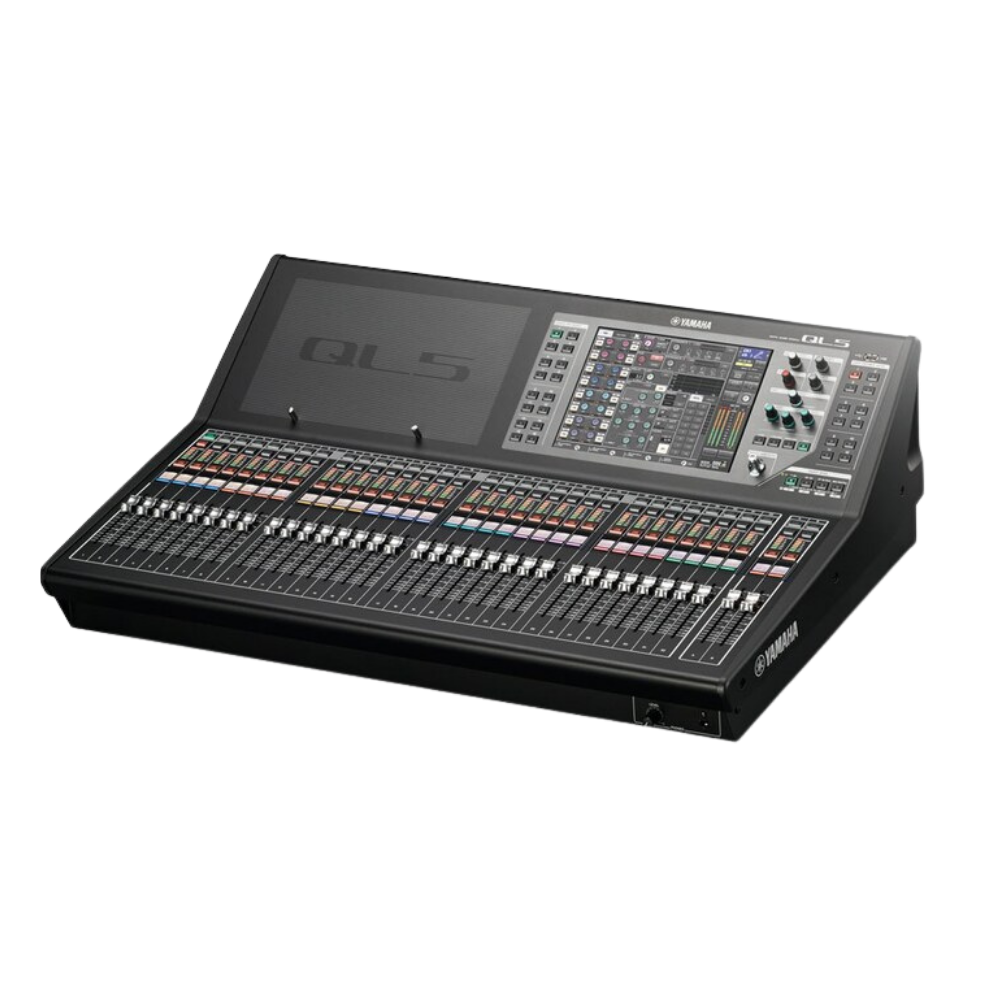

The Yamaha QL5 is a high-performance digital mixing console that delivers the renowned sound quality and workflow of Yamaha's CL Series in a compact, all-in-one platform. Designed for professional live sound, broadcast, theatre, and installed sound applications, the QL5 combines extensive processing, intuitive operation, and integrated Dante networking to simplify demanding productions while maintaining exceptional audio performance.

Performance / Features

The QL5 offers 64 mono and 8 stereo input channels, a 32+2 motorized fader layout, and a responsive 10.1-inch multi-touch display for fast operation. Built-in Premium Rack processors—including Rupert Neve Designs Portico EQ and Compressor models—along with Dan Dugan Automatic Mixer technology provide studio-quality signal processing without external hardware. Native 64×64 Dante networking enables seamless integration with Yamaha Rio stage boxes and other Dante-enabled systems.

Applications / Integration

Ideal for concert venues, theatres, houses of worship, corporate AV, broadcast studios, rental companies, and touring productions, the QL5 integrates effortlessly into Dante audio networks. Two Mini-YGDAI expansion slots, USB recording/playback, and remote control via Yamaha applications provide flexibility for both permanent installations and mobile productions.
