Yamaha

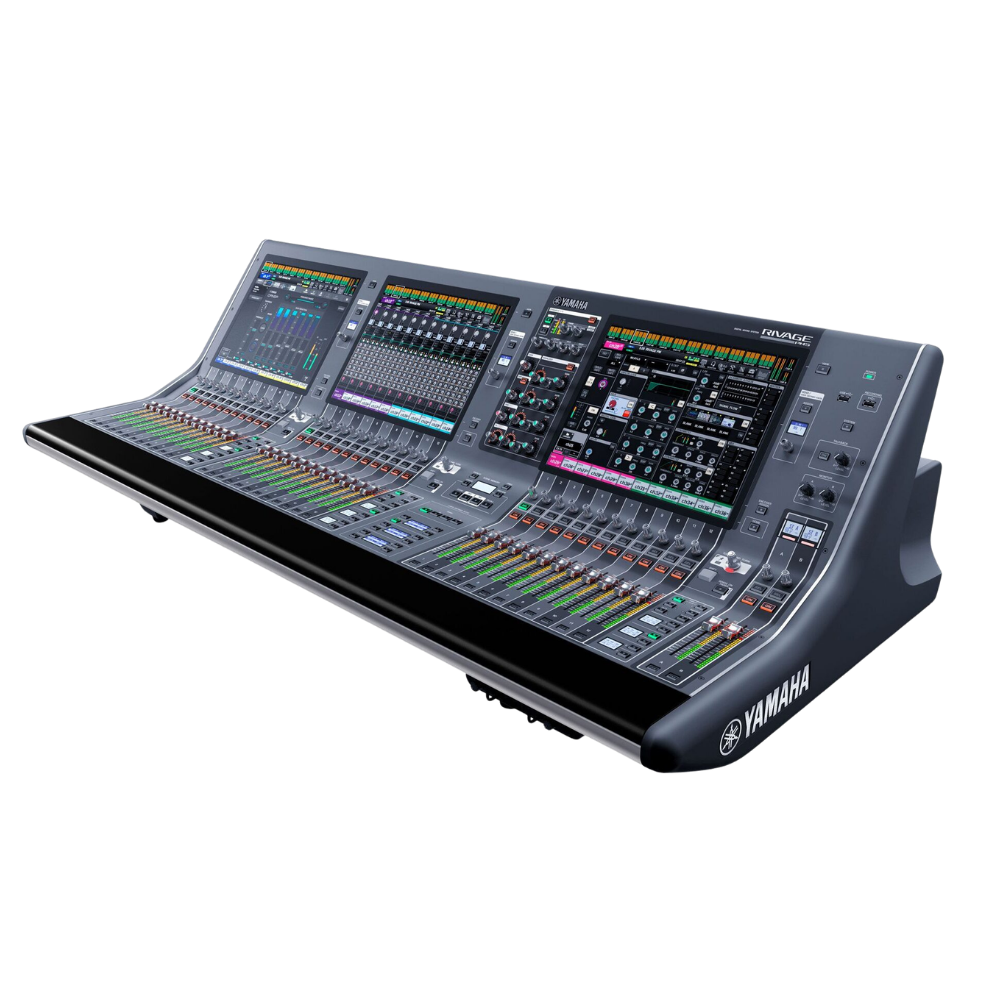

Yamaha RIVAGE PM5 Digital Mixing System

Yamaha Audio Mixer

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Integrated DSP processing within the CSD-R5 console
Supports up to 144 input channels at 96 kHz
Dual 15-inch multi-touch control displays
Supports Dante and TWINLANe audio networking
Compact design with premium RIVAGE PM workflow
Ideal for live sound, theatre, broadcast, and touring

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Overview

The Yamaha RIVAGE PM5 is a compact member of the RIVAGE PM Series, combining the CSD-R5 digital mixing console with an integrated DSP engine in a single system. Designed for professional touring, broadcast, theatre, houses of worship, and live production, it delivers flagship RIVAGE audio quality and workflow in a smaller, more portable footprint.

Performance / Features

The PM5 offers up to 144 input channels with premium 40-bit floating-point processing at 96 kHz. It features dual 15-inch multi-touch displays, Yamaha's intuitive Selected Channel interface, motorized faders, integrated DSP processing, and support for TWINLANe and Dante networking via HY interface cards. The streamlined design provides exceptional mixing power while reducing system complexity.

Applications / Integration

The RIVAGE PM5 is ideal for live touring, broadcast facilities, theatres, concert venues, houses of worship, and corporate productions. It integrates seamlessly with Yamaha RPio and Rio series I/O racks, enabling scalable audio networking and flexible system expansion for demanding professional environments.

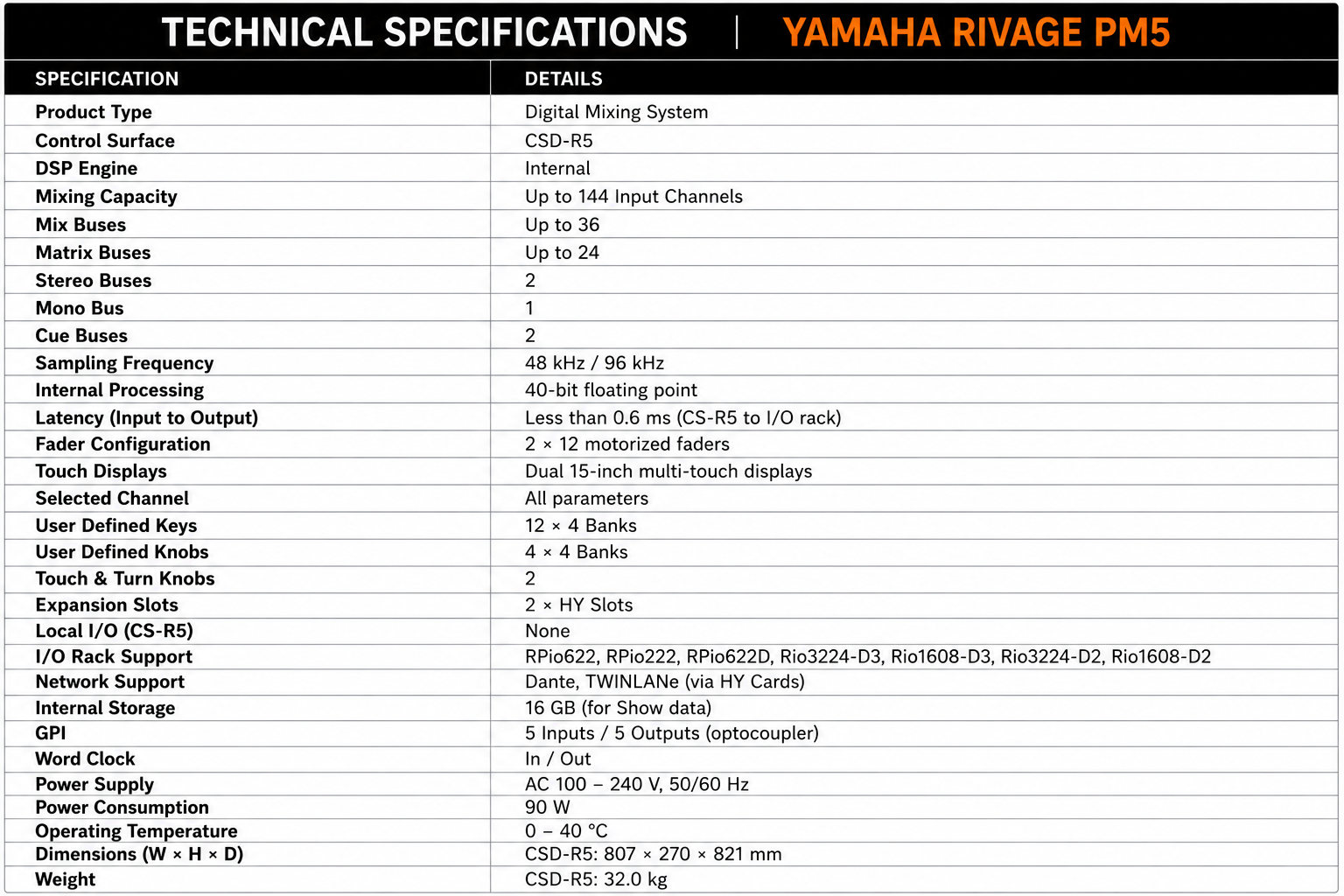

Technical Specifications +

technical specifications
