Overview

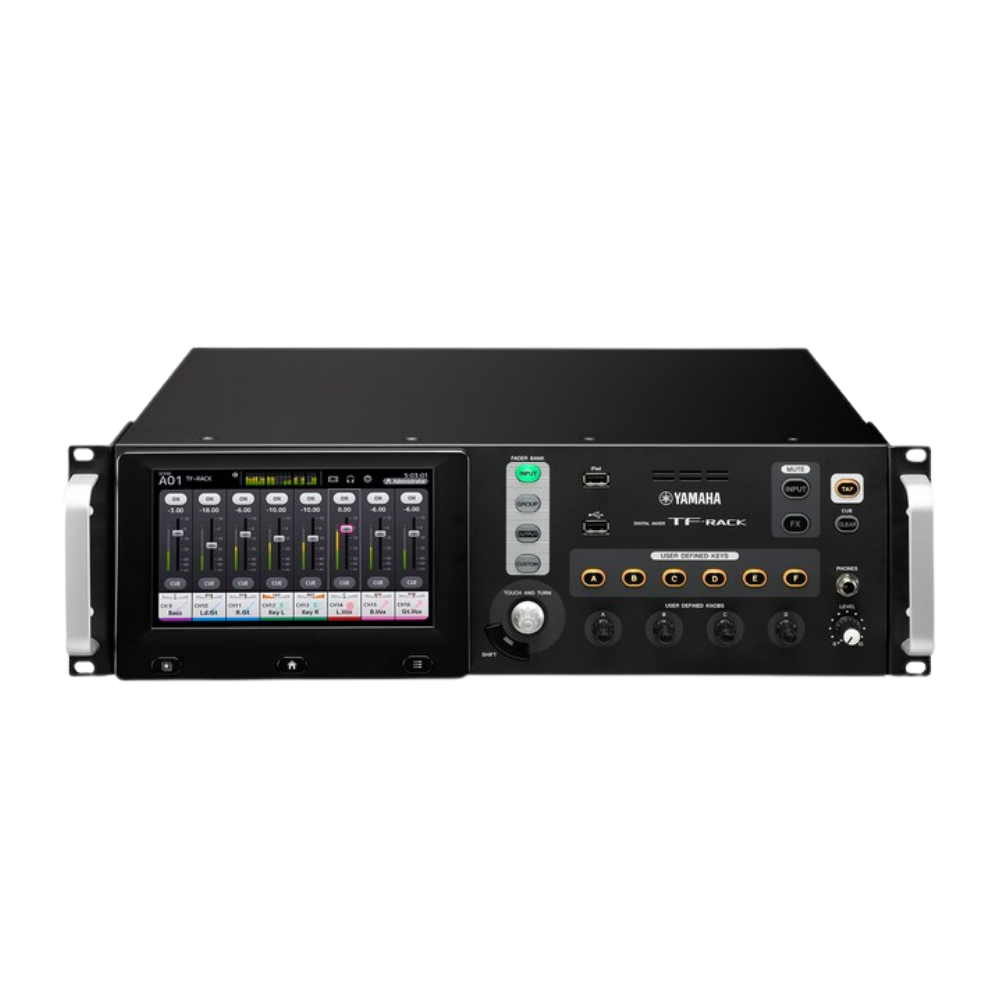

The Yamaha TF-RACK is a professional rackmount digital mixing console that delivers the powerful processing, intuitive TouchFlow Operation, and exceptional audio quality of the TF Series in a compact 3U rack format. Designed for fixed installations, portable AV systems, houses of worship, broadcast facilities, and live sound applications where space is limited, the TF-RACK combines Yamaha's renowned D-PRE microphone preamps with advanced DSP processing and flexible expansion capabilities. Its touchscreen-driven workflow eliminates the need for physical channel faders while providing fast, intuitive control over every aspect of the mix.

Performance / Features

The TF-RACK offers a 40-channel digital mixing architecture comprising 32 mono, 2 stereo, and 2 return channels, supported by 20 aux buses, a stereo bus, a sub bus, and 8 DCA groups. Sixteen recallable Yamaha D-PRE microphone preamps deliver transparent, natural sound with low noise and excellent headroom, while the integrated DSP engine provides eight SPX effects processors and ten graphic equalizers for comprehensive signal processing. A built-in 34 × 34 USB audio interface enables multitrack recording and playback directly to a computer, and the expansion slot supports the optional NY64-D Dante card for seamless integration into professional networked audio systems. TouchFlow Operation, GainFinder™, 1-Knob EQ, and 1-Knob Compressor technologies simplify setup while maintaining professional mixing performance.

Applications / Integration

The Yamaha TF-RACK is ideal for permanent AV installations, conference centers, churches, theatres, education campuses, hotels, broadcast studios, corporate venues, and portable rack systems where compact size and professional performance are essential. It integrates seamlessly with Yamaha Tio stage boxes through Dante, TF StageMix and MonitorMix mobile applications, Nuendo Live multitrack recording software, and a wide range of professional analog and digital audio equipment. Its rackmount form factor makes it particularly well suited for installed sound systems and mobile production racks.
