Overview

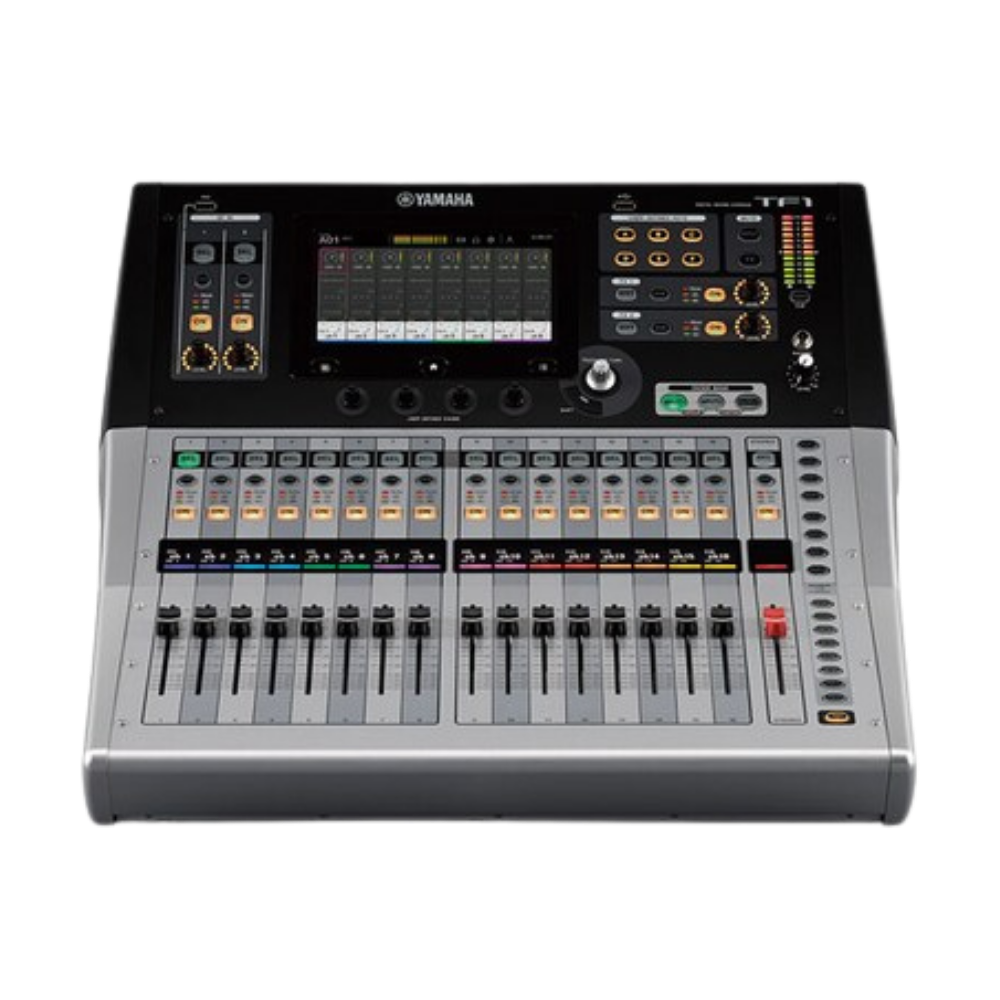

The Yamaha TF1 is a compact professional digital mixing console designed for live sound reinforcement, broadcast production, corporate AV, educational institutions, and houses of worship. As the smallest model in Yamaha's TF Series, it combines intuitive TouchFlow Operation with powerful digital signal processing, enabling engineers of all experience levels to achieve high-quality mixes quickly and efficiently. Featuring 16 Yamaha D-PRE microphone preamps, a 10.1-inch multi-touch display, and 17 motorized faders, the TF1 delivers professional performance while maintaining a compact footprint for portable and fixed installations.

Performance / Features

The TF1 offers a flexible 40-input mixing architecture comprising 32 mono and 2 stereo input channels, supported by 20 mix buses, 8 matrix buses, and comprehensive onboard DSP processing. Yamaha's acclaimed D-PRE microphone preamps provide transparent, natural sound with excellent headroom and low noise, while the intuitive TouchFlow interface streamlines channel control, EQ, dynamics, and effects processing. Built-in SPX multi-effects processors, GainFinder™, 1-Knob EQ, and 1-Knob Compressor functions simplify live operation without compromising audio quality. A built-in 34 × 34 USB audio interface enables multitrack recording and playback, while optional Dante networking via the NY64-D expansion card allows seamless integration into professional networked audio systems.

Applications / Integration

The Yamaha TF1 is ideal for portable live sound systems, churches, conference venues, theatres, educational campuses, broadcast studios, corporate event production, and rental companies requiring a compact yet powerful digital console. It integrates easily with Yamaha Tio stage boxes via Dante, TF StageMix and MonitorMix mobile applications, Nuendo Live multitrack recording software, and a wide range of professional analog and digital audio systems. Its combination of intuitive workflow, powerful DSP, and network expandability makes it a versatile solution for both fixed installations and mobile productions.
