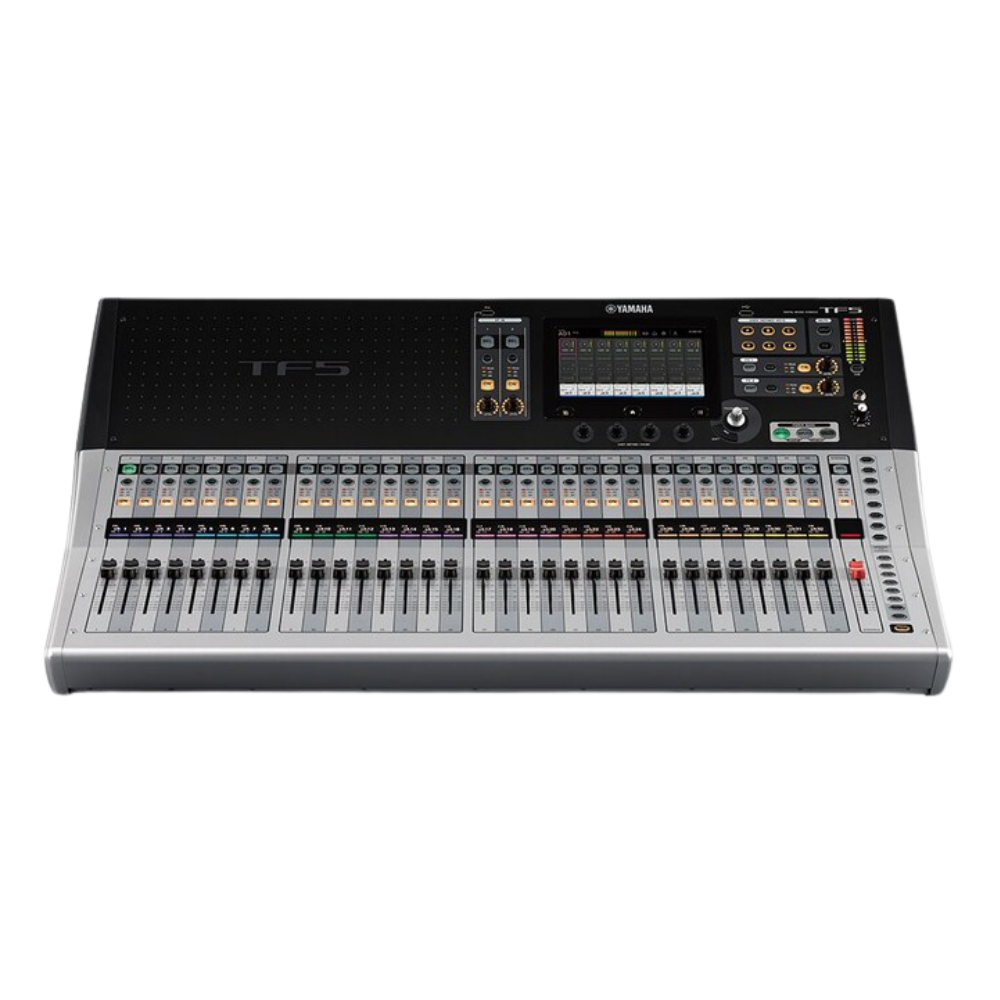

Overview

The Yamaha TF5 is the flagship model of the TF Series, designed to provide professional sound quality with an intuitive workflow. Featuring Yamaha's TouchFlow Operation™, the console enables engineers of all experience levels to achieve high-quality mixes quickly through an intuitive touchscreen interface, one-touch controls, and powerful onboard processing. It is equally suited for live concerts, broadcast productions, corporate events, and fixed installations.

Performance / Features

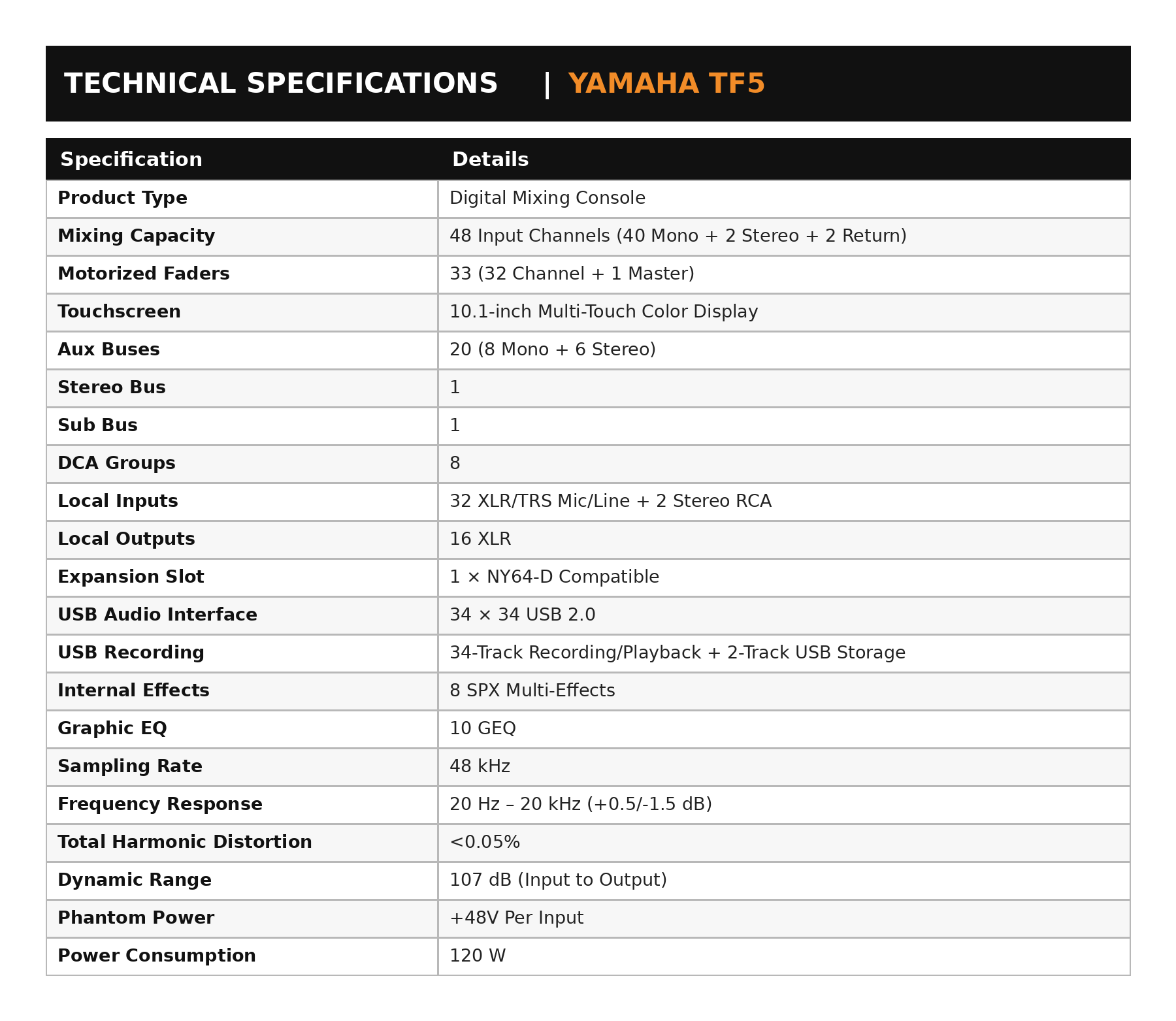

The TF5 offers 40 mono and 2 stereo input channels with 33 motorized faders and a responsive 10.1-inch multi-touch display. Built-in D-PRE microphone preamps deliver transparent, natural sound, while 1-Knob COMP™, 1-Knob EQ™, GainFinder™, and comprehensive onboard effects simplify setup and operation. The integrated 34×34 USB audio interface supports multitrack recording and playback, while optional NY64-D expansion adds full Dante networking capability.

Applications / Integration

Ideal for live venues, theatres, houses of worship, conference facilities, schools, broadcast studios, rental companies, and corporate AV systems, the TF5 integrates with Yamaha Tio1608-D stage boxes via Dante, supports remote control applications, and offers flexible expansion for modern digital audio workflows.
